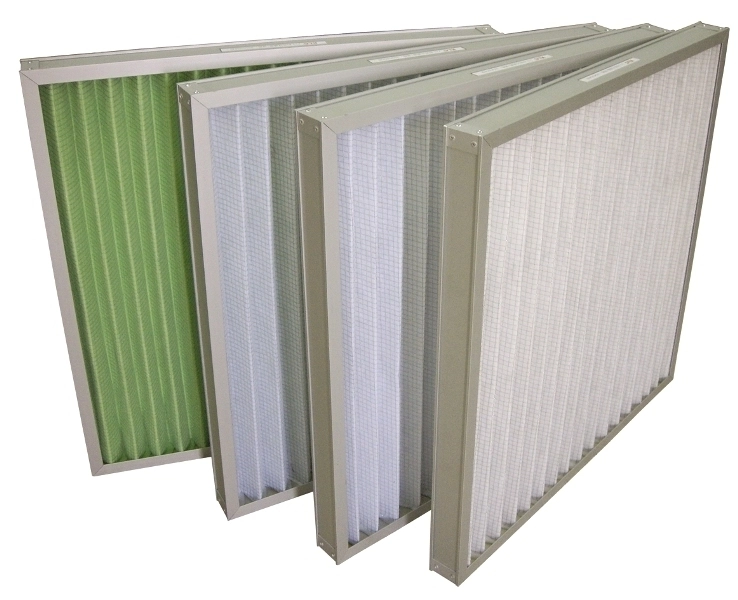

Pleated Primary Air Filter With Metal Frame 1

Pleated Primary Air Filter With Metal Frame 2

Pleated Primary Air Filter With Metal Frame

Brand:

HAOAIRTECH

Model number:

HA-PF

Material:

Aluminum frame

OEM /ODM:

OEM

Certificated:

SGS

Start port:

Huang PU,Guangzhou

Delivery time:

7 Working days

MOQ:

10 sets

Country of Original:

China

Supply ability:

1000pcs/ 15days

Payment term:

T/T , LC. Western Union

Application:

Central air-conditioning

Inquiry

Write a Review

Characteristics

Low cost

Light weight。

Good versatility。

Compact structure。

Double side with metal screen。

EVA gasket prevent air leakage

Pleated Primary Air Filter With Metal Frame 3

Introduce:

Pleats filter is suitable for primary filtration of air conditioning system. and Medium efficiency air filtration. It is mainly used to filter dust particles above 5 micron. Outer frame materials include cardboard frame, Aluminium frame and galvanized iron frame.

Filter materials include non-woven fabric, nylon mesh, activated carbon filter material, metal mesh, Protective mesh includes double-sided plastic-sprayed wire mesh and double-sided galvanized wire mesh.

/ Operating Conditions

Media	Non-Woven fabric and synthetic fiber
Frame	AL/GL/SUS201/304 frame
Gasket	Neoprene / EVA or PU
Frame size	24/48/96mm
Screen	Metal screen in one side or both side
Efficiency	G1-G4 ,F5-F8
Max Temperature	80℃
Max Humidity	100%

/ Products Parameter

Dimension	Rate air flow	Media area	Dust Holding(g)	Initial Resistance (pa)	Finally Resistance (pa)	Efficiency
592x592x46	2600	0.97	110	<25	100-200	G1
			130	<30	100-200	G2
			160	<40	100-200	G3
			200	<45	150-200	G4
592x490x46	2200	0.81	98	<25	100-200	G1
			110	<30	100-200	G2
			130	<40	100-200	G3
			160	<45	150-200	G4
592x287x46	1300	0.48	50	<25	100-200	G1
			60	<30	100-200	G2
			80	<40	100-200	G3
			100	<45	150-200	G4

Customer size is available

Application:

mainly used for: central air conditioning and centralized ventilation system pre-filtration, large- scale air compressor pre-filtration, clean return air system, pre-filtration of local high efficiency filter device.

/ Product Details

part.1

Synthic Fibre media with one side metal screen .

Pleated Primary Air Filter With Metal Frame 4

part.2

Primary filter media pleats machine

Pleated Primary Air Filter With Metal Frame 5

part.3

Aluminum frame with plastic angle code have good appearance.

Pleated Primary Air Filter With Metal Frame 6

part.4

Z-line pleats air filter for client in Netherlands.

Pleated Primary Air Filter With Metal Frame 7

/ Our Service

Pleated Primary Air Filter With Metal Frame 8

Our Service

1: 100% scann air leaking test for each Mini-PleatsHEPA air flter, test report accompany all of HEPA air filter.
2: 2 pcs in one carton .each air filter warp by PE Bag .
3: Small order is polywood packing so that we can send out by sea in LCL.
4: If order amount more than 20000USD, We accept the 100% LC at sight against with document.
5: Free sample possible for you confirmation of quality .
