We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

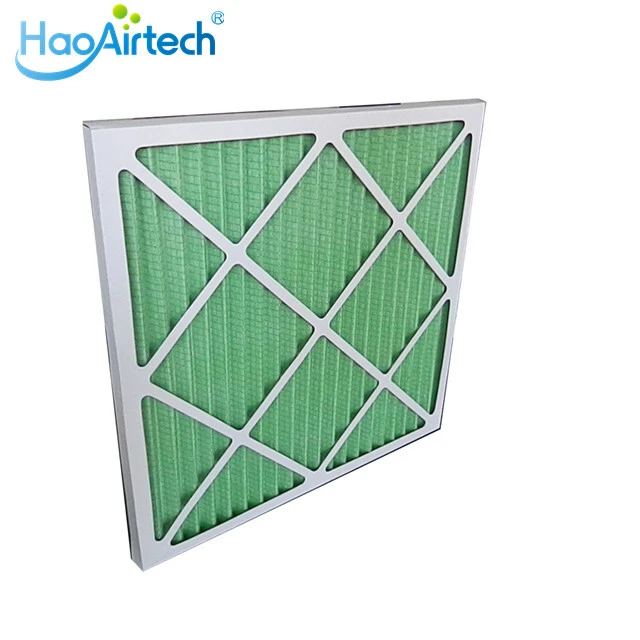

Pleated Prefilter With Cardboard Frame 1
Pleated Prefilter With Cardboard Frame 1

Pleated Prefilter With Cardboard Frame

    oops...!

    no product data.

    Go to homepage



    Characteristics

    Low cost

    Light weight。

    Good versatility。

    Compact structure。

    Double side with metal screen。

    EVA gasket prevent air leakage

    Cardboard frame withWaterproof

    Pleated Prefilter With Cardboard Frame 2




    Introduce:

         Pleatted prefilter  is suitable for primary filtration of air conditioning system. and Medium efficiency air filtration.  It is mainly used to filter dust particles above 5  or 10 micron. Outer frame materials include cardboard frame, Aluminium frame and galvanized iron frame.

       Filter materials include non-woven fabric, nylon mesh, activated carbon filter material, metal mesh, Protective mesh includes double-sided plastic-sprayed wire mesh and double-sided galvanized wire mesh.



    / Operating Conditions


     Media

    Non-Woven fabric and synthetic fiber

     Frame

    Cardboard frame

    Gasket

    Neoprene / EVA or PU

    Frame size

    24/48/96mm

    Screen

    Metal  screen in one side or both side

    Efficiency

    G1-G4 ,F5-F8

    Max Temperature

     80℃

    Max Humidity

    100%



    / Products Parameter

    Dimension

    Rate air flow

    Media area

    Dust Holding(g)

    Initial Resistance

    (pa)

    Finally Resistance

    (pa)

    Efficiency

    592x592x46

    2600

    0.97

    110

    <25

    100-200

    G1

    130

    <30

    100-200

    G2

    160

    <40

    100-200

    G3

    200

    <45

    150-200

    G4

    592x490x46

    2200

    0.81

    98

    <25

    100-200

    G1

    110

    <30

    100-200

    G2

    130

    <40

    100-200

    G3

    160

    <45

    150-200

    G4

    592x287x46

    1300

    0.48

    50

    <25

    100-200

    G1

    60

    <30

    100-200

    G2

    80

    <40

    100-200

    G3

    100

    <45

    150-200

    G4

    Customer size is available

    Application:

    mainly used for: central air conditioning and centralized ventilation system pre-filtration, large- scale air compressor pre-filtration, clean return air system, pre-filtration of local high efficiency filter device.



    / Product Details



    part.1
    Synthic Fibre media with one side metal screen .
    Pleated Prefilter With Cardboard Frame 3

    part.2
     Primary filter media pleats machine
    Pleated Prefilter With Cardboard Frame 4

    part.3
    Aluminum frame with plastic angle code have good appearance.
    Pleated Prefilter With Cardboard Frame 5

    part.4
    Z-line pleats air filter for client in Netherlands.
    Pleated Prefilter With Cardboard Frame 6


    / Our Service


    Pleated Prefilter With Cardboard Frame 7

    Our Service

    1:  100% scann air leaking test for each Mini-PleatsHEPA air flter, test report accompany all of  HEPA air filter.
    2:  2 pcs in one carton .each air filter warp by PE Bag .
    3:  Small order is polywood packing so that we can send out by sea in LCL.
    4:  If order amount more than 20000USD, We accept the 100% LC at sight against with  document.
    5:  Free sample in small size possible for you confirmation of quality .



    / package


    Pleated Prefilter With Cardboard Frame 8
    Pleated Prefilter With Cardboard Frame 9
    Pleated Prefilter With Cardboard Frame 10
