Company Advantages1. HAOAIRTECH clean room box differentiates itself over the competition by using well-selected materials and lean production method. The product features an energy-saving performance
2. This product has good performance in normal use. A good fit is achieved because the subject will feel comfortable and can perform the task well. With the shell galvanized, the product is crack-resistant and wear-resistant
3. The product is able to protect the foot against hurt. It is designed based on the ergonomics which distributes the negative pressure evenly and provides support to the foot. The product dedicates to keeping a cleanliness class of 10000-300000
4. The product features great chemical resistance. It can maintain its original properties after being exposed to a chemical environment for a specified time period. The product can increase the rate of finished products

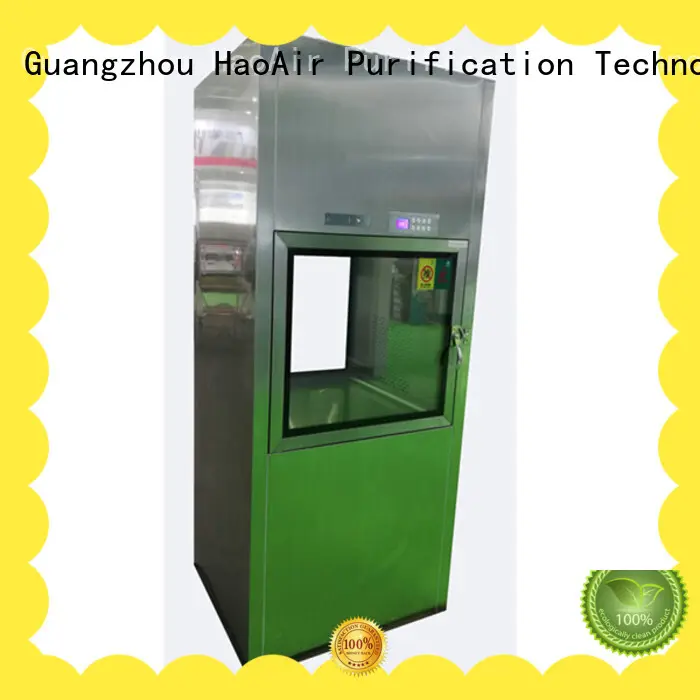

Pharma Dynamic Pass Box
Feature :
Precision designing and finish.
Choice of mechanical or electrical interlocked.
Floor and wall mounted design.
Maximum chemical resistance construction.
Stainless Steel suction filter w/ 95% down to 5 µ Efficiency (EU-4 Rating.).
Branded heavy duty Blower.
Aluminum Supply filter w/ 99.999% down to 0.001 µ (EU-14 Rating.).
Buzzer indication to know the material is kept inside.
Indicating lamp to know the door lock-unlock condition.
Low Vibration and Noise.
Fully custom designed.
Product Characteristic :
Pharma dynamic pass box can easily be installed between two different classified areas/rooms for material pass through.
The two doors are opened and interlocked at the same time to avoid simultaneous opening and a traffic light on both sides shows door status.
The pass box is entirely made of AISI304 stainless steel with a class B work chamber, compliant with cGMP Annex I, ensured by HEPA H14 filters.
At rest the electric lock doors are usually open. The doors are interlocked, therefore at the opening of one of them, the other one is blocked.
Pressing the button on the chosen side of the box will open the corresponding door, consequently the door will be locked.
![plc control pass box clean room with baked painting for hospital 3]()
Products Parameter：
| Product | Pharma Dynamic Pass Through Box |
| Construction | Stainless Steel 304 / 316 / 316L |
| Door | Solid door w/ mechanical or electrical interlocked |
| Window | Tempered Glass |
| UV Lamp | Optional |
| HEPA Filter | Optional |
| Suction Filter | Stainless Steel w/ 95% down to 5 µ Efficiency (EU-4 Rating.) |
| Supply Filter | Aluminum w/ 99.999% down to 0.001 µ (EU-14 Rating.) |
| Blower | Branded Heavy duty |
| Noise | <78 |
| Power Supply | 220 / 230 Volts |
| Accessories | Hour meter, Magnehelic / Minihelic Pressure Gauge |
| Electricals | Hour Meter, Fluorescent light, UV light, Electromagnet for door interlocking, Buzzer and Indicator lamps |
| Air Shower Facility | Optional |
| Cleanliness | Class 100 |
| Certifications | CE and ISO |
Company Features1. Under the support of each staff, HAOAIRTECH becomes a thriving and customer-oriented company. Guangzhou HaoAir Purification Technology Co.,Ltd. includes a vast selection of specifications and innovative products.
2. Guangzhou HaoAir Purification Technology Co.,Ltd. has international advanced production equipment line.
3. Guangzhou HaoAir Purification Technology Co.,Ltd. continuously enhances the company's core competitiveness. We strive to achieve a better global environment, fulfil our ethical and social responsibilities, and work hard to exceed the expectations of our customers and employees.
