     roller air shower pass boxes



      Princeples:

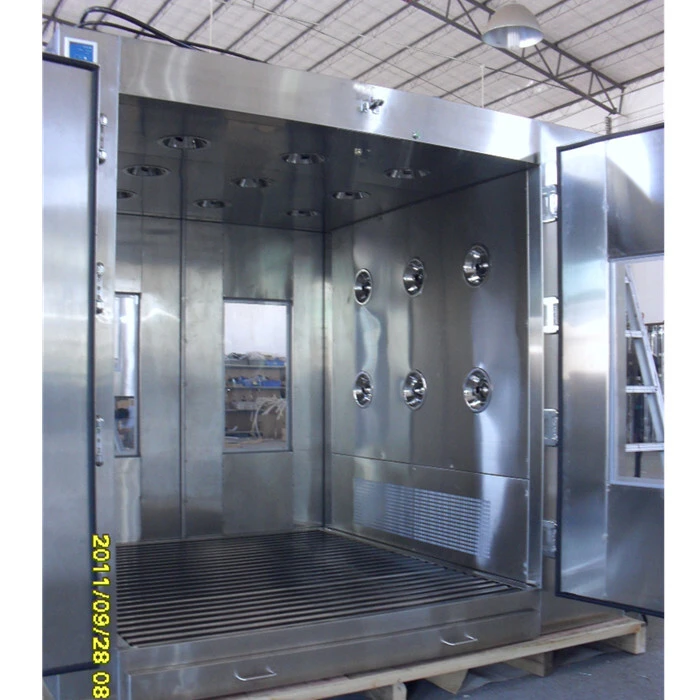

     Roller air shower pass box  are cominbed with pass through box and manual roller conveyor roller .



        box's material is stainless steel 304 r 316,  it is composed of double manual door , HEPA filters,, primary filters, Blower fans, Nozzles. When goods into pass through box,

    it will be infrated by sensor to blowing to remove the dust particle from goods, the two doors are interlocked,

    it means that one door open, the other one must be closed, therefore it is prevent the airflow convection between non clean room and clean room, to keep the cleanliness of clean room.



    The conveyor is manual roller type, which is usually installed in the corner of workshop, suitable for the narrow space.





    Technical Specification:


    ModelHA-ASPB-500HA-ASPB600HA-ASPB700
    External dimensions (W x D x H)820x560x1300920x660x14001020x760x1750
    Size for working area ((W x D x H)500x500x600600x600x600700x700x700
    MaterialCold rollled steel with powder coated for outside, stainless steel for inside
    Lock typeElectrical interlock
    WindowsClear Acrylic sheet



    Applications:




    It mainly applied to the goods transimission between the clean and non-clean areas,

     preventing the outside dust particles from coming into the clean area due to air circulation.

    The possible pollution to clean room can be minimized, so the cleanliness of the clean room can be maintained.


    • Pharmaceutical Industries

    • Food Processing Industry

    • Semiconductor Industry

    • Chemical Laboratories

    • Electronics Industry
