We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

plc control pass box clean room embedded lamps for cargo 1
plc control pass box clean room embedded lamps for cargo 2
plc control pass box clean room embedded lamps for cargo 3
plc control pass box clean room embedded lamps for cargo 1
plc control pass box clean room embedded lamps for cargo 2
plc control pass box clean room embedded lamps for cargo 3

plc control pass box clean room embedded lamps for cargo

Brand:
haoairtech
Model number:
KEL-ASPB500
Material:
1: Entirety Sus304.(T=1.2/1.5mm) 2: Entirety Sus201.(T=1.2/1.5mm) 3: External is steel with power coated, Internal is SUS304(T=1.2/1.5mm) 4: External is steel with power coated. Internal is SUS201(T=1.2/1.5mm)
OEM /ODM:
OEM /ODM
Certificated:
CE
Start port:
GUANGZHOU
Delivery time:
10 days
MOQ:
1 set
Inquiry
Product Name
Haoairtech
Other Name
pass box
Guarantee Time
12 month

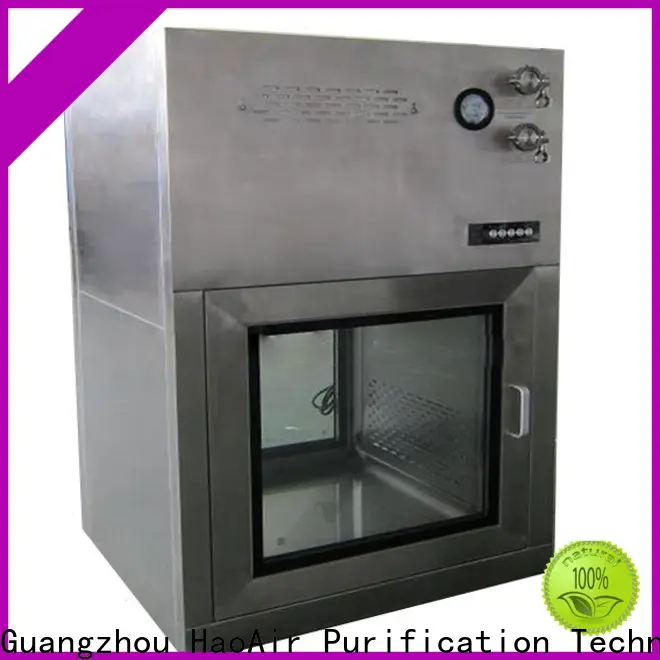

Transfer Window and Air Shower Pass Box

Pass Box is a kind of assistant equipment for clean room. Mainly be used in passing the small articles between clean room and unclean room, different class and different pressure clean room. One side, it is affected for air brake and protect the high pressure discharged in the high class clean room. On the other hand, it can achieve the showering result during the passing for ensuring goods clean to enter the clean room and reduce the goods to bring the pollution extent. The showering time can according to the practical need within one minute adjustable. It can reach showering and save energy for the maximal limit.



Product features:

1.Material:SS 304

2.On both sides of the gate has a mechanical interlock or electrical interlock device, make sure not in an open position at the same time on both sides of the door.

3.The outlet of the wind speed up to more than 20 s.

4.Adopts hepa filter with separators, the filtration efficiency is: 99.99%, to ensure that the level of purification.

5.Using EVA sealing material, sealing performance is high.

6.Imported electronic components, reliable in performance.


Pass Box

  • used for goods transfer between clean areas or between clean and non-clean areas

  • reduce cleanroom contamination risk

  • static and dynamic type

  • with self-clean and sterilization optional





Products Parameter:

MODEL

KEL-ASPB500

External size (mm)
(W*D*H)

850x500x1350mm

Work zone (mm)
(W*D*H)

500x500x500mm

Nozzle

4 PCS

Air speed

18-25m/s

Per-filter

425x275x17mm

G3

HEPA filter

360x360x69mm

99.99%@0.3um H13

Optional accessories

1: UV light. 2: Interphone 3:Differential pressure gauge 4: Roller

Power supply

0.75KW 380V/50HZ

packing size (mm)

1050x780x1600mm

1100x880x1700mm

1240x1030x1850mm

Packing material

Standard Export Poly wood Packing(Fumigant free material)




Air Shower Pass Box:

pass box

Air shower pass box Bottom:




Air Shower Pass Box Top Nozzle:
