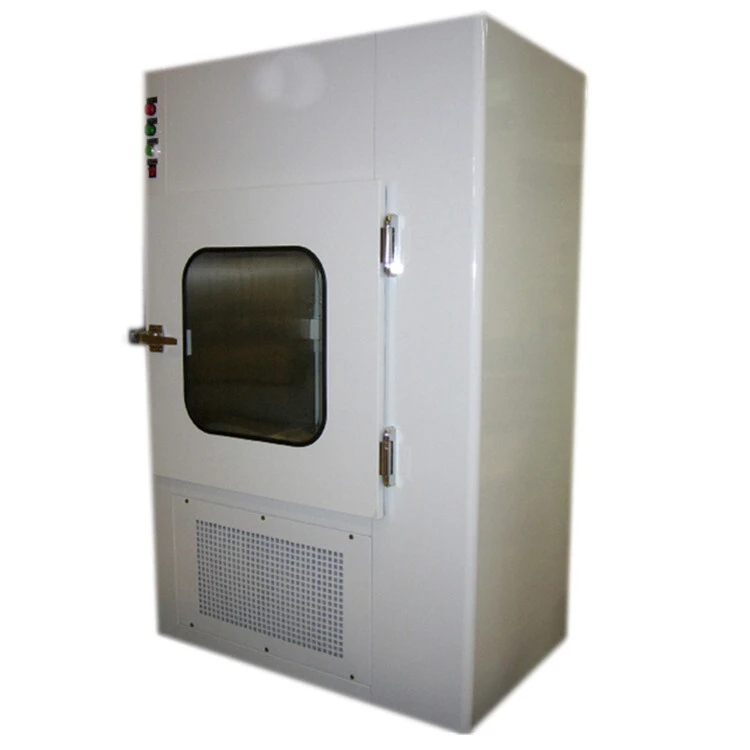

Static high efficient pass box
Static high efficient pass box
Pass boxes are used to move material from unclassified area to classified area are called dynamic pass box. All dynamic pass boxes are fitted with HEPA filtered air circulation system. All dynamic pass boxes are design to class 100 cleanliness level. Dynamic pass boxes are large by height to accommodate HEPA filtered air circulation system.
All pass boxes are tailor made to suit customer requirement. Combination of GI powder coated with SS and all SS construction is standard practice of manufacturing. Door interlocking, Buzzer, white light, UV light, hour running meter are standard accessories in pass box design.
Products Parameter:
MODEL | KEL-ASPB700 | |||||
External size (mm) | 1090x750x1500mm | |||||
Work zone (mm) | 750x750x750mm | |||||
Nozzle | 6 PCS | |||||
Air speed | 18-25m/s | |||||
Per-filter | 425x275x17mm | |||||
G3 | ||||||
HEPA filter | 560x275x17mm | |||||
99.99%@0.3um H13 | ||||||
Optional accessories | 1: UV light. 2: Interphone 3:Differential pressure gauge 4: Roller | |||||
Power supply | 0.75KW 380V/50HZ | |||||
Packing material | Standard Export Poly wood Packing(Fumigant free material) | |||||
Air Shower Pass Box:
Air shower pass box Bottom:
Air Shower Pass Box Top Nozzle:
