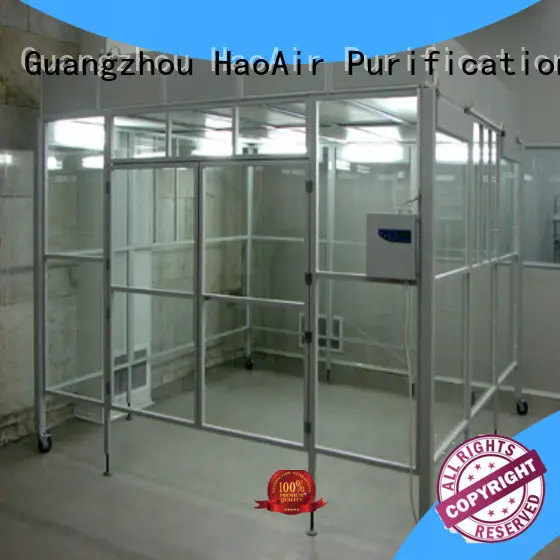

non standard softwall cleanroom vertical laminar flow booth for semiconductor factory
- HaoAir attaches great importance to service. We are committed to providing excellent service for customers based on professional service know-how.
1. The materials of HAOAIRTECH clean shed are decided after careful consideration. The compatibility with chemicals and its combination with other ingredients are also considered to avoid adhesiveness between same-material faces.
2. The product features great efficiency. Its compressor effectively 'sucks in' the refrigerant from the evaporator and compresses it in a cylinder to make hot, high-pressure gases.
3. Guangzhou HaoAir Purification Technology Co.,Ltd. will provide professional packaging design for softwall cleanroom.
4. This product has a comprehensive application foreground.
Introduce:
Haoairtech designed this as a portable solution to create a Class 10-100000 clean room environment without the high cost and constraints of a hard wall system.
It’s affordable, reliable, energy efficient and easy to assemble as well as disassemble.
The prefabricated wiring system makes electrical hook-up simple with factory wired components and leg-mounted on/off switches for lights and filters.
A single point electrical hook-up or heavy duty line cord (under 15 amps) are provided, which may eliminate the need for an expensive installation.
Product Features：
Purification Rank : Class10-class 10000
Fan filter unit with mini-pleats HEPA filter/ULPA filter( 99.995%@0.3um )
Portable Clean room vertical laminar flow booth Control box function :
A: Control the power on/off
B: control the fan filter unit air speed UP/Down
C: Control working area purification light
D: Control the UV light in working area
E: Monitor differential gauge so that replacement HEPA filter in time.
Material : stainless steel 304 or steel with milk color powder coated
pressure Relief valve base one request
Products Parameter：
Item | Clean room vertical laminar flow booth | |
Purification rank | Class to class 100.000 | |
Dimension L*W*H | According client request | |
Fan filter unit | Dimension | 2x2,2x4,4x4 optional |
Structural material | Stainless steel, aluminum alloy, AI-Zn plate | |
Power supply | 220V/50HZ AC | |
Mini-pleats HEPA /ULPA Air filter | ||
Frame material | Aluminum alloy/stainless steel201/304 | |
Wall material | Acrylic /sandwich panel/anti-static acrylic | |
Ceiling | Aluminium –plastic panel , sandwich panel | |
Air conditioner | Constant temperature air conditioning Or Constant temperature and humidity air conditioning | |
Lighting | LED light or T5 (Optional ) | |
air shower | Optional | |
Pass box | Optional | |
Air flow floor | Optional | |
NOTE :
We have a wide range of configuration available to meet most cleanroom booth standards up to Class 10/ISO Class 4.
For Class 10/ISO Class 4 and Class 100/ISO Class 5 cleanliness level,
100% laminar airflow is essential to prevent any deterioration of cleanliness caused by the present of non-laminar airflow.
At this cleanliness level, the ceiling must be totally covered by HEPA/ULPA filter and the lighting is usually tear-drop.
As the result, all particles come from the personnel , processes and equipment are immediately swept away from the clean area.
Where the ceiling is not fully covered, turbulent zones are present. In this cases,
particles introduced or present in the clean area are re-circulated and produce temporary deterioration of the cleanliness level.
