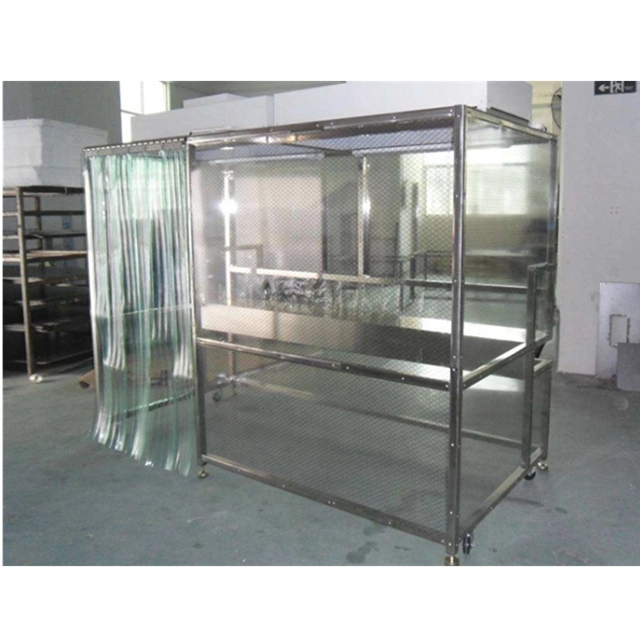

SUS 304 Frame Softwall Clean Room
SUS 304 Frame Softwall Clean Room
Introduction
1. With FFU (Fan Filter Unit) as the core, clean booth provides a high level of cleanliness. It is a good option to create a cleaner space within an existing normal room or a room with low-level of cleanliness.
2. Easy installation, low cost, modularized design and easy upgrading
Application
LCM, CMOS Camera Module, Touch Play, Optical Module, FILM, Biological Pharmacy, Packing,Food
Main Features
(1) Assembly structure designed, easy installation and easily moved
(2) Directional wheels can be installed, suitable for small building and high cleanliness area;
(3) Modular design: clean booth can be as small as several square meters and can be as large as hundreds of square meters
(4) It has large useful and effective area; while compared with traditional clean room, it has such features like low investment, high return and stable.
Parameter
| Model | HA-1500 | HA-2000 | HA-3000 | HA-5000 |
| External Size (W*D*H) | 1500*2000*2530mm | 2000*3000*2530mm | 3000*4000*2530mm | 5000*5000*2530mm |
| HEPA Filters | 99.999% efficiency at 0.3 um | |||
| Consumption | 500W | 800W | 1000W | 1600W |
| FFU Nos. | 4 pcs | 6 pcs | 12 pcs | 25 pcs |
| Clean Level | ISO 5 (Class 100), Class A | |||
| Control System | control box | |||
| Rectangular Tube Material | SUS 304 material frame | |||
| Wall Material | Anti-static dustproof curtain | |||
| Blower | Built-in centrifugal blower; speed adjustable | |||
| UV Lamp | Emission of 253.7nanometers, with UV timer | |||
| Air Velocity | 0.1~0.6m/s, average 0.45m/s | |||
| Noise | ≤58db | |||
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | |||
| Gross Weight | 390Kg | 670Kg | 1100Kg | 2900Kg |
| Package Size (W*D*H) | 2110*930*920mm 2260*660*500mm | 3080*980*1260mm 3080*660*550mm | 3080*980*1260mm 3080*980*1260mm 4080*660*550mm
| 4080*980*1260mm 4080*980*1260mm 4080*980*1260mm 1260*660*1260mm 5080*460*500mm |
| Customized design for clean level, size or material is available | ||||
