We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

mini pleats ulpa filter with dop port for air cleaner 1

mini pleats ulpa filter with dop port for air cleaner 2

mini pleats ulpa filter with dop port for air cleaner 3

mini pleats ulpa filter with dop port for air cleaner 4

mini pleats ulpa filter with dop port for air cleaner 5

mini pleats ulpa filter with dop port for air cleaner 6

mini pleats ulpa filter with dop port for air cleaner 7

mini pleats ulpa filter with dop port for air cleaner 8

mini pleats ulpa filter with dop port for air cleaner 9

mini pleats ulpa filter with dop port for air cleaner

Brand:

HAOAIRTECH

Model number:

HA-HEPA-D Series

OEM /ODM:

Yes

Certificated:

Rosh

Start port:

Guangzhou

Delivery time:

8 working days after we get the deposit.

MOQ:

10sets

Country of Original:

China

Supply ability:

500set/one month

Payment term:

T/T , L/C , Western union

Application:

Worker in Clean room

Inquiry

Product Details

With a focus on quality, HaoAir pays great attention to the details of best hepa filters.HaoAir carries out strict quality monitoring and cost control on each production link of best hepa filters, from raw material purchase, production and processing and finished product delivery to packaging and transportation. This effectively ensures the product has better quality and more favorable price than other products in the industry.

Application Scope

HaoAir's air showers can be used in multiple industries.HaoAir has an excellent team consisting of talents in R&D, production and management. We could provide practical solutions according to actual needs of different customers.

Company Advantages
1. The popularity of ulpa filter also contributes to its unique design in its portable hepa filter .
2. The product can be used for a relatively long time thanks to its high quality materials.
3. The product reduces the need for hiring a large workforce. It can greatly help save labor costs for business owners.
4. This product is the right one on a chilly night to engulf one in warmth. It is perfect for an adult or a child’s bedroom or guest room.

Characteristics

Hepa air filter with DOP port used super glass fibre for 0.3um particulate.
It is patent technology to ensure the V type passage in low resistance.
Neoprene /EVA or PU gasket prevent the air leaking in operation.
Aluminum or SUS Frame in 120mm and 150mm for choose.
While color metal screen to protect the filtration media without any damage.
Adopting the laser to scan the filter one by one (MPPS).
100 % provide the test report for each HEPA air filter
Filtration Efficiency: H13 ,H14,(EN1822). 99.95%-99.995%@0.3um
Applied to the terminal filtration of the air-condition filtration system

mini pleats ulpa filter with dop port for air cleaner 12

/ Operating Conditions

Media	Super glass fibre
Frame	AL /SUS201/304 frame
Gasket	Neoprene /EVA or PU
Media spacer	Hot melt
Frame thickness (mm)	120/150mm
Screen	Metal screen
Efficiency	H13:99.97-99.99%@0.3um H14: 99.995-99.999%@0.3um
Max Temperature	70℃
Max Humidity	80%

/ Products Parameter

Dimension (mm) *(WHD)*	Rate Air Flow (m3/h)	Media Area (m2)	Dust Holding (g)	Rate primary Resistance (Pa)	Finally Resistance (Pa)	Efficiency
610X610X120	1000	11.32	680	H13 :<200Pa H14 :<220pa	400-600pa	H13-H14
915X610X120	1500	16.71	1000
1170X570X120	1800	19.79	1200
1220X610X120	2000	22.1	1350
610X610X150	1250	14.14	850
915X610X150	1900	20.88	1250
1170X570X150	2200	24.741	1500
1220X610X150	2500	27.63	1660

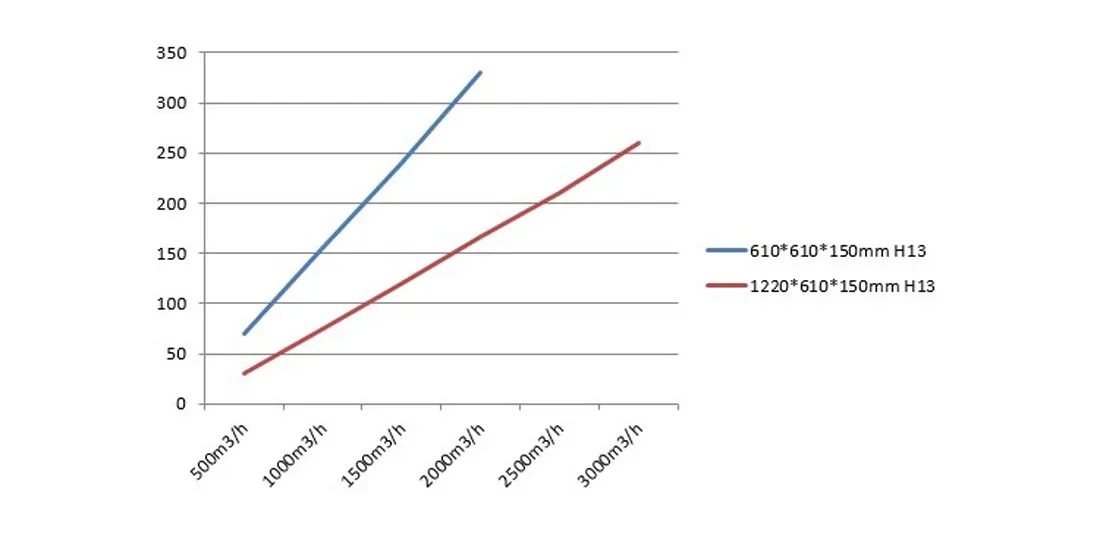

/ Primary Resistance & Face Velocity Diagram

mini pleats ulpa filter with dop port for air cleaner 13

/ Product Details

part.1

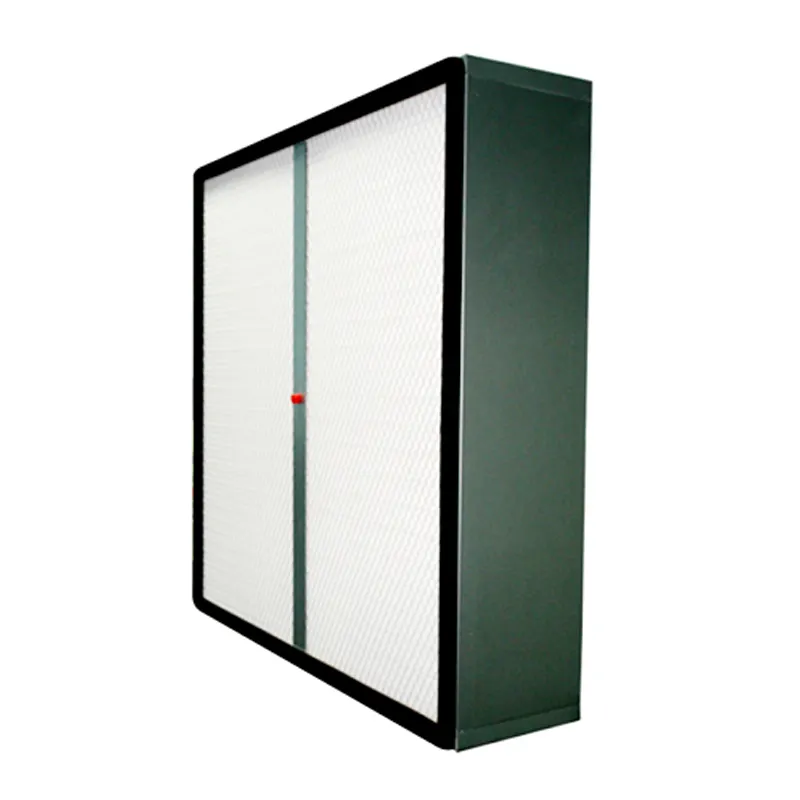

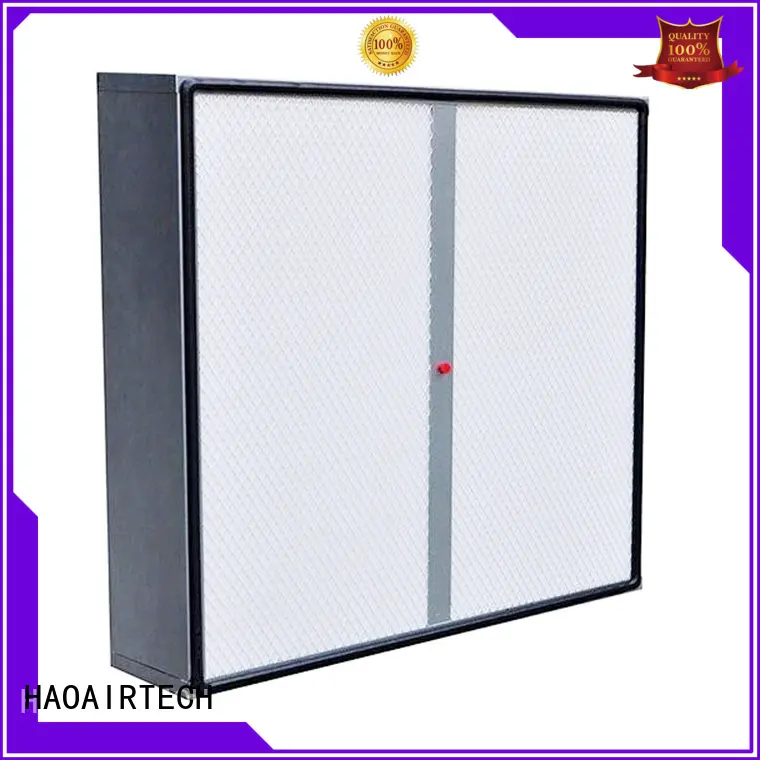

HEPA air filter with DOP Port

mini pleats ulpa filter with dop port for air cleaner 14

part.2

Mini-Pleats Media Compact

mini pleats ulpa filter with dop port for air cleaner 15

part.3

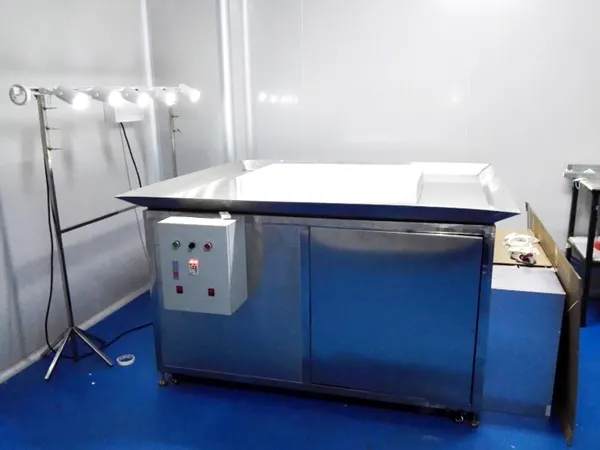

Air Filter Dust Detection Test

mini pleats ulpa filter with dop port for air cleaner 16

Application

Mini-pleats HEPA air filter suitable for hospital, electronic industry ,food,Pharmaceutical ,

bioengineering,precision instrument, electron semiconductors and dust-free room, national defense,aerospace field, fan filter unit, HEPA unit , air shower, dynamic pass box, dispensing booth ,softwall cleanroom, laminar flow booth and so on .

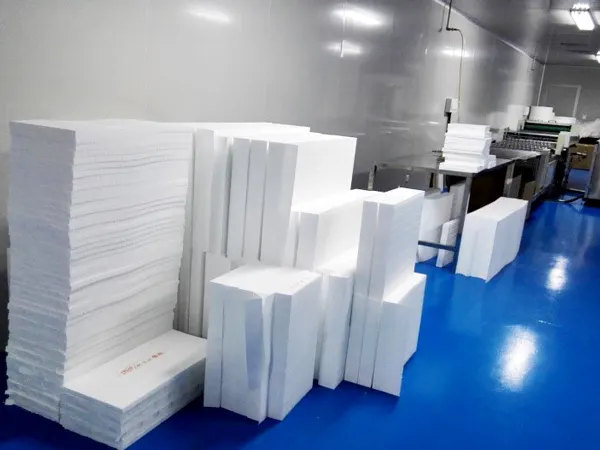

/ package

mini pleats ulpa filter with dop port for air cleaner 17

mini pleats ulpa filter with dop port for air cleaner 18

mini pleats ulpa filter with dop port for air cleaner 19

Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. has gained high recognition for its high quality ulpa filter .
2. Guangzhou HaoAir Purification Technology Co.,Ltd. is a service-oriented enterprises specialized in air purifiers hepa filter R&D, production and sales.
3. Creating value for customer is Guangzhou HaoAir Purification Technology Co.,Ltd.'s unremitting dream! Check now! We will always providing high quality and best service for our hepa air filter . Check now! Fully satisfying the needs of customers with our heart and soul is the requirement of HAOAIRTECH to each staff. Check now!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
