merv 8 pleated filter for central air conditioning and centralized ventilation system HAOAIRTECH

Company Advantages
1. HAOAIRTECH pleated filter is constructed in accordance with international electrical requirements. It conforms to a series of certificates, including UL, SAA, CE, FCC, RoHS, BSI, and so on.
2. The product features an easy operation. It has a relatively simple operating system combining a powerful processing flow and provides simple operation instruction.
3. The fabric has good water absorption and elasticity, which makes the product have good heat and moisture regulation ability. It is still dry - very good in the case of "night sweats."
4. This product is very soft, smooth and luxurious, even for the most sensitive skin. So if people like this feeling, they will like it.



Introduce:

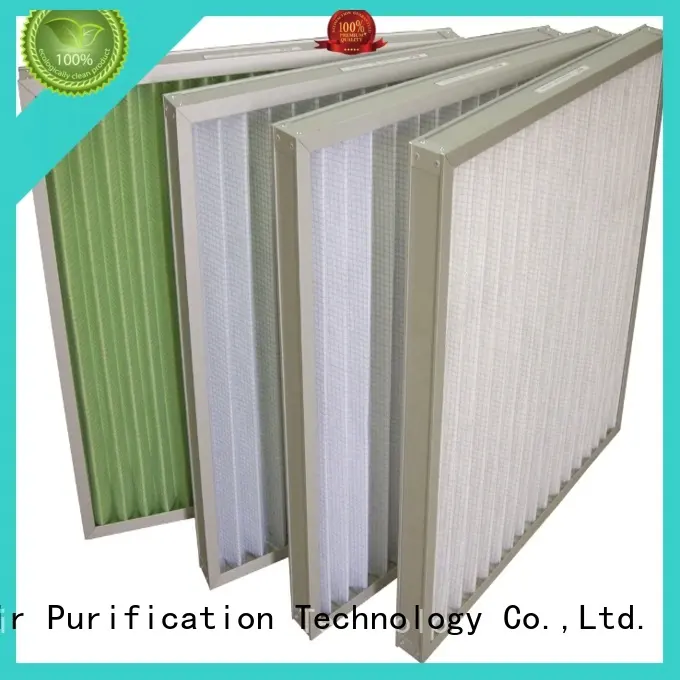

     Pleats filter is suitable for primary filtration of air conditioning system. and Medium efficiency air filtration.  It is mainly used to filter dust particles above 5 micron. Outer frame materials include cardboard frame, Aluminium frame and galvanized iron frame.

   Filter materials include non-woven fabric, nylon mesh, activated carbon filter material, metal mesh, Protective mesh includes double-sided plastic-sprayed wire mesh and double-sided galvanized wire mesh.

Media	Non-Woven fabric and synthetic fiber
Frame	AL/GL/SUS201/304  frame
Gasket	Neoprene / EVA or PU
Frame size	24/48/96mm
Screen	Metal   screen in one side or both side
Efficiency	G1-G4 ,F5-F8
Max Temperature	80℃
Max Humidity	100%

Dimension	Rate air flow	Media area	Dust Holding(g)	Initial Resistance (pa)	Finally Resistance (pa)	Efficiency
592x592x46	2600	0.97	110	<25	100-200	G1
			130	<30	100-200	G2
			160	<40	100-200	G3
			200	<45	150-200	G4
592x490x46	2200	0.81	98	<25	100-200	G1
			110	<30	100-200	G2
			130	<40	100-200	G3
			160	<45	150-200	G4
592x287x46	1300	0.48	50	<25	100-200	G1
			60	<30	100-200	G2
			80	<40	100-200	G3
			100	<45	150-200	G4

Customer size is available

mainly used for: central air conditioning and centralized ventilation system pre-filtration, large- scale air compressor pre-filtration, clean return air system, pre-filtration of local high efficiency filter device.

Company Features
1. All staff from Guangzhou HaoAir Purification Technology Co.,Ltd. are well-trained for best pleated filter.
2. The factory has achieved ISO international quality system certification. And we always insist on strict quality control following international production system to guarantee product quality.
3. We are committed to the highest ethical standards wherever it does business. We have adopted a single set of ethical principles that are applied in daily decision-making by all our associates. We maximally want to reduce the impact on the environment. To improve the environmental performance of our products, we assess and improve their environmental impacts from the moment we begin to develop them. We are always committed to ensuring the highest level of customer service and the fastest delivery. In addition, we provide delivery services for all orders in accordance with our shipping and delivery policies. Check now!
