We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

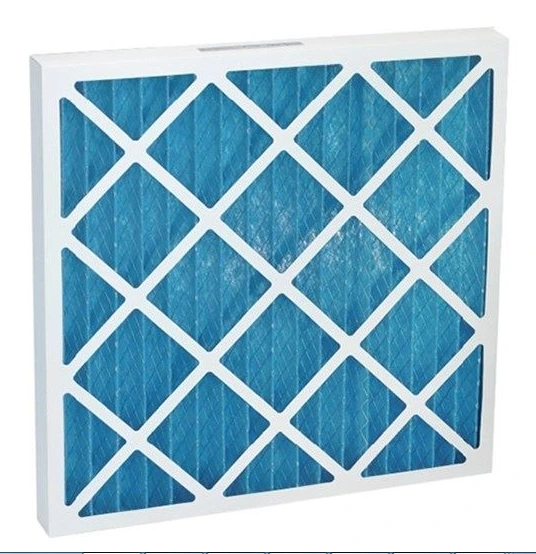

Cardboard frame Deep Pleated filter Disposable Pleat Filter 1
Cardboard frame Deep Pleated filter Disposable Pleat Filter 1

Cardboard frame Deep Pleated filter Disposable Pleat Filter

    oops...!

    no product data.

    Go to homepage
    Product Name
    Haoairtech
    Other Name
    AIR FILTER
    Guarantee Time
    12 month

    Cardboard frame Deep Pleated filter Disposable Pleat Filter



    Introduce:

    Pleated panel air filters are designed for use in air filtration systems and equipment, as stand alone basic efficiency products or as pre-filters to higher efficiency bag, rigid box or cell type filter.

    Media bonded to expanded metal support grid create one of the most rigid filters of its type in the industry.

    The media pack, comprised of 100% polypropylene fibers, is bonded to the inside perimeter of the enclosure frame by a moisture resistant adhesive,providing a continuous and positives.


    Material and operation condition


    mediacotton
    sealantadhesive
    framealuminum/galvanized/stainless steel/cardboard
    efficiency40%~90%  2.0μm
    max.temperature80°C
    max.humidity80%-100%
    optional aluminum15-96mm



    Product features


    1.Standard plate more plait the filter.

    2.More reststant material selection box type high moisture industrial carboard or aluminum frame,carboard frame filter can reduce the cost.

    3.Barbed wire fixed filter material is linear plait shape structure,has the very high let dust capacity.

    4.Filter material and outer frame seal connections,prevent air leakage phenomenon.



    Application

    The office,shoping mall,stadium,and the airport, general industrial workshop,clean room of air distribution system on the filter.


    Technology parameter

    model

    width

    (mm)

    height

    (mm)

    depth

    (mm)

    air flow

    (m³/h)

    initial resistance

    (≤pa)

    final resistance

    (pa)

    media area

    (m²)

    dust holding

    (g)

    efficency
     HA-A-001 595 595 46 2800 30 100-200 1.23 104 G2
     HA-A-002 595595 46 2800 40 100-200 1.23 117 G3
     HA-A-003 595 595 46 2800 45 150-250 1.23 222 G4
     HA-A-004 595 495 46 2600 30 100-200 1.02 87 G2
     HA-A-005 595 495 46 2600 40 100-200 1.02 97 G3
     HA-A-006 595 495 46 2600 45 150-250 1.02 184 G4
     HA-A-007 595 295 46 1500 30 100-200 0.6 50 G2
     HA-A-008 595 295 46 150040 100-200 0.6 57 G3
     HA-A-009 595 295 46 1500 45 150-250 0.6 107 G4
     HA-A-010 495 595 46 2600 30 100-200 1.02 87 G2
     HA-A-011 495 595 46 2600 40 100-200 1.02 97 G3
     HA-A-012 495 595 46 2600 45 150-250 1.02 185 G4
     HA-A-013 495 495 46 2200 30 100-200 0.85 72 G2
     HA-A-014 495 495 46 2200 40 100-200 0.85 80 G3
     HA-A-015 495 495 46 2200 45 150-250 0.85 152 G4
     HA-A-016 295 595 46 1500 30 100-200 0.59 50 G2
     HA-A-017 295 595 46 1500 40 100-200 0.59 56 G3
     HA-A-018 295 595 46 1500 45 150-250 0.59 106 G4
     HA-A-019 295 495 46 1300 30 100-200 0.49 42 G2
     HA-A-020 295 495 46 1300 40 100-200 0.49 46 G3
     HA-A-021 295 495 46 1300 45 150-250 0.49 88 G4
     HA-A-022 295 295 46 750 30 100-200 0.28 24 G2
     HA-A-023 295 295 46 750 40 100-200 0.28 27 G3
     HA-A-024 295 295 46 750 45 150-250 0.28 52 G4


    pere-filterpre-filterpre-filter2
