intelligence air shower manufacturer channel for ten person

Company Advantages
1. The whole production process of HAOAIRTECH air shower manufacturer is completed by using sophisticated and modern machines in adherence to the industry set standards.
2. The product has strong abrasion resistance and is not easy to pilling. A special finishing agent is used to impart softness and enhance its anti-friction ability.
3. This product has really contributed a lot to my business. It has the advantages of easy operation and maintenance, which greatly lowers my operation costs. - One of our customers said.
4. The product is easy to clean and needs little maintenance, which greatly helps lower my maintenance and labor costs.

Intelligent Air Shower Channel In Clean Room , Wind Spreed 25-30m/S

Introduction:



Air shower passage is the necessary passage for people/goods to enter the clean room. In order to reduce the large amount of dust particles brought by people/goods entering and leaving the clean room, installing a fully functional "air lock room" at the entrance of the clean room can reduce the number of air pollution particles. When people/goods pass through, the polluted particles are shot out by highly clean air filtered with high efficiency. The high wind speed of 22-25m/s ensures that the drifting particles can be basically filtered out by two-stage filters of initial efficiency and high efficiency.

A modular assembly method is provided, which can be assembled into various lengths of air shower sizes according to actual needs.

Material



Cabinet material:

1.All power coated steel air shower room, the inner floor and nozzle and handle are stainless steel.

2.The outside is made of power coated steel and the inside is made of stainless steel.

3.The outside is made of cold plate and the inside is made of stainless steel.

Air shower room doors are mainly full glass and translucent window doors optional



Door material:

The door has transparent windows. The material can be made of cold-rolled steel plate, stainless steel or colored steel plate.



Channel Floor Material:

High Quality SUS201/304 with Easy Cleaning and Wear Resistance



Nozzle:

With multi-angle adjustable stainless steel nozzle, the diameter of nozzle is 25 mm.



Door control system:

with stainless steel electric lock, stainless steel door closer.



Urgent stop switch:

In case of failure in the air shower room, the power supply can be cut off immediately, so that all the doors in the air shower room are open.

Induction control system of air shower chamber: infrared induction shower, PLC control, LED display shower time, shower time can be set to 5S-99S, the initial time of air shower is generally set to 15 seconds, touch micro switch



Lighting system:

equipped with clean lighting, compared with ordinary lighting, more suitable for the principle of clean room lighting. Ultraviolet bactericidal lamp can be configured according to customer's requirements



Fan:

equipped with large air volume and low noise centrifugal fan, the wind speed can reach 22-25 m/s of super wind speed, providing efficient injection for effective dust cleaning.



Sole cleaner:

Sole cleaner can be configured according to customer's requirements.

Engineering case

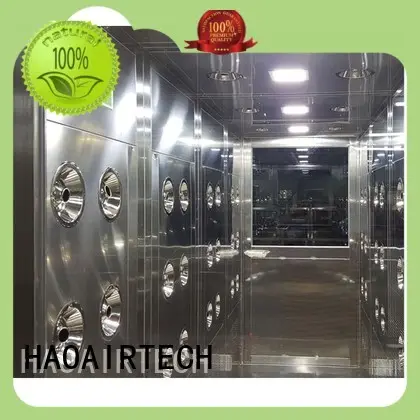

This is our air shower channel construction site.

Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. has evolved into one of the most competitive manufacturers of air shower tunnel . We boast years of experience in production.
2. To distinguish us from other companies is that our air shower manufacturer enjoys a longer lifespan.
3. Producing air shower system from customer's point of view will make HAOAIRTECH stronger. Please contact. Keep disseminating the culture of HAOAIRTECH can help employees to be passionate. Please contact. Guangzhou HaoAir Purification Technology Co.,Ltd. is committed to providing users with ultimate experience of products and services to make life more colorful. Please contact. We will vigorously realize air shower as an important goal and fundamental pursuit of corporate development. Please contact.
