We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.
high end clean bench with vertical air flow for biology horizontal
- HaoAir continuously maintains relationships with regular customers and keeps ourselves to new partnerships. In this way, we construct a nationwide marketing network to spread the positive brand culture. Now we enjoy a good reputation in the industry.
1. High technology is used in the design of HAOAIRTECH clean bench. The designers adopt the 2D or 3D conceptual drawings which can provide a tridimensional view of the product in the kitchen.
2. The product is of reliable quality as it is produced and tested based on the requirements of widely-recognized quality standards.
3. LED doesn't fail abruptly and relatively has a long useful life. This reduces the cost in terms of maintenance and reduces your headache for periodical replacements.
4. The long life it promised is one of the biggest selling points of this product. It can maintain in good condition after used for a long time. Therefore, users do not have to replace the frequent burn out bulbs.
Product Features：
An ISO Class 5 environment utilizing an aerosol challenged HEPA filter.
Exclusive airflow design with an all stainless steel interior construction.
Fluorescent lighting fixture providing 100 foot candles at the work surface.
Shielded ultraviolet lamp enhances sterilization of the work surface when the
cabinet is not in use.
Perforated, anodized aluminum diffuser screen protects the HEPA filter and
maintains a uniform airflow velocity within the work area.
Covered duplex electrical output .
Color-keyed airflow meters.
custom sizes with optional base support stands.

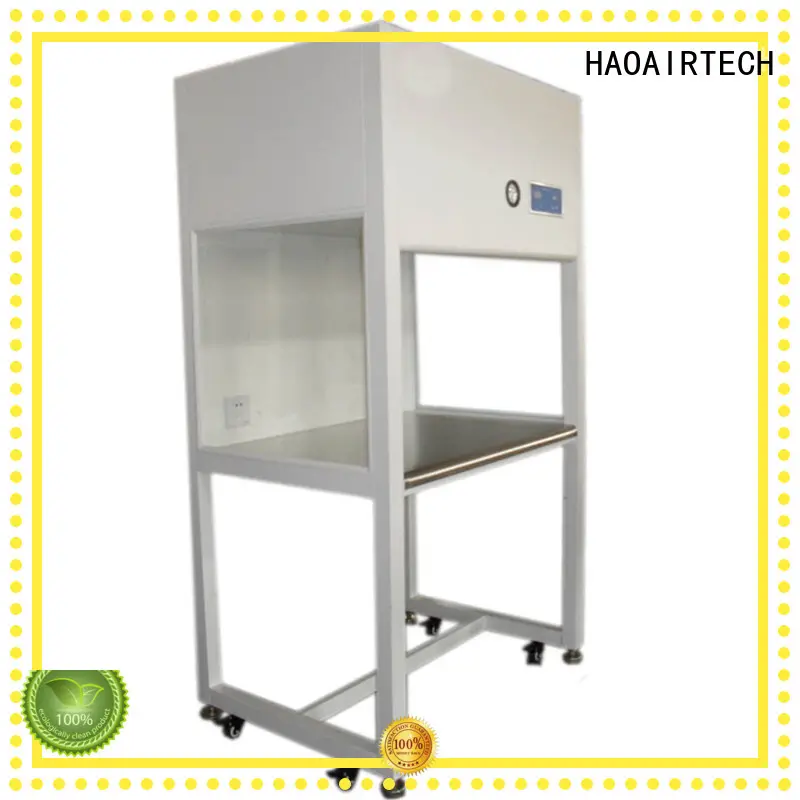

Introduction:
A self-contained clean work station with unique unidirectional airflow pattern
providing the non-aspirating action of vertical flow while retaining the positive
work protection of horizontal flow.
the laminar flow Clean benches is a completely self-contained, positive
pressure, unidirectional airflow clean bench that provides an ISO Class 5* (Class
100) environment within its work area. The Haoairtech has a modular design with a unique
airflow pattern that provides the non-aspirating action of vertical flow, while retaining
the positive work protection of horizontal flow.
Products Parameter：
HA-VCB-2 | HA-VCB-3 | ||
External size (mm) (WXDXH) | 1500X700X1800 | ||
Work zone (mm) (WXDXH) | 900x650x600 | 1100x650x600 | 1400x650x600 |
Purification rank | FS209E 100Rank | ||
Rating airflow(m3/h) | 950m3/h | 1100m3/h | 1400m3/h |
Filtration efficiency | More than 99.99%@0.3um H13-H14 | ||
Average wind speed | 0.3-0.6m/s Adjustable | ||
Intensity of illumination | >300lx | ||
30WX1 | 40WX1 | ||
(Option) | 1：Entirety Sus304/201 2：External is steel with power coated, Internal is SUS304 3: External is steel with power coated. Internal is SUS201 | ||
Control board | 1: Control the air speed up/down 2: Power off /on 3: Working time display 4: Working area light on/off 5: Alarm indicator | ||
Power | 280W | 405W | 490W |
Noise | <65dB | ||
Power supply | 220V-240V AC 50HZ | ||
Packing size | 1160x980x1780mm | 1400x1020x1780mm | |
Application:
It widely used in Pharmaceutical Preparation., I.V. Admixtures. Hyperalimentation , Syringe
Filling . Tissue Culture . Media Preparation . Critical Sample Preparation . Microscopy
Analysisbiological optoelectronic industry, microelectronics, hard disk manufacturing and other fields which need local purification .
