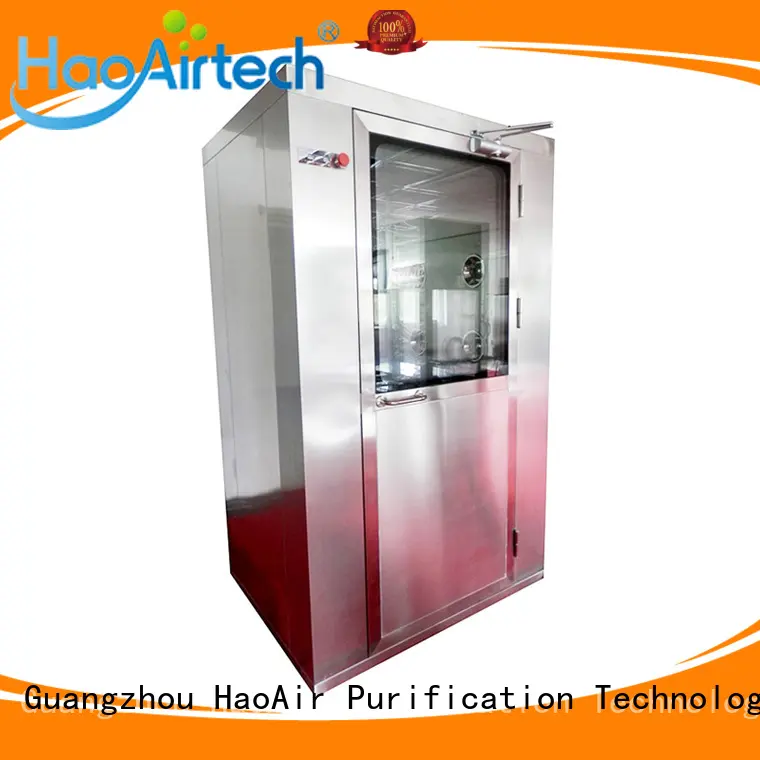

high end air shower unit hot sale for large scale semiconductor factory HAOAIRTECH
1. HAOAIRTECH air shower manufacturer strictly undergoes a series of compatible testing. For example, its color rendering, light uniformity, and brightness are checked carefully. The product is widely used for high-end clean rooms of various manufacturers
2. Quick customer service and lively atmosphere have formed in Guangzhou HaoAir Purification Technology Co.,Ltd.. The product is reputed for its long service life
3. The product features a reliable electrical system. It will auto stop working when open circuit, short circuit, and electric leakage occurs. The product focuses on the good physical conditions of the workers in the workshop
4. The product has fine physical properties which are determined by the composition and the strength of the chemical bonds in its ordered internal structure. The product can withstand high temperature
5. The product stands out for its high safety. All of its electric components, as well as the housing materials, are all tested to conform to electrical safety standards. It is certified by SGS corporation and reaches RoHS standard
External Material: stainless steel304 (t=1.0) Or steel with milk color power coated
Inside Material: stainless steel304 (t=1.0)
External size: 1400*1000*2180mm
Internal size: 790*930*1910mm
Sus nozzle: 16pcs
Blowing way: one side (top)
Air speed: more than 25m/s
Door: Electric Interlocking in both side.
MODEL | HA-AS1400V1 | HA-AS1400V2 | HA-AS1400V3 | |
External size (mm) | 1400x1000x2180 | 1400x2000x2180 | 1400x3000x2180 | |
Work zone (mm) | 790x930x1910 | 790x1930x1910 | 790x2930x1910 | |
Persons per cycle | 1-2 person | 2-4 person | 3-6 person | |
Material （Option） | 1：Entirety Sus304.(T=1.0/1.2/1.5mm) | |||
Control system | 1: Control system with LED display for the shower time. | |||
The power of fan | 380V/50HZ/1.1KW | 380V/50HZ/1.1KW | 380V/50HZ/1.1KW | |
Air flow of fan(m3/h) | 1500 | 1500 | 1500 | |
Fan run (r/min) | 2800 | 2800 | 2800 | |
Nozzle in stain less steel | 16 pcs | 32 pcs | 48pcs | |
Wind speed(m/s) | >25m/s | |||
Noise level(dB) | <75dB | |||
HEPA FILTER | Size(mm) | 630X630X80mm | 630X630X80mm | 630X630X80mm |
Efficiency (%) | 99.995% @ 0.3um Mini-pleats HEPA air filter | |||
Air velocity | 1000m3/h | |||
Initial resistance(pa) | <220pa | |||
Pre-filter | Size(mm) | 775x380x17 | 775x380x17 | 775x380x17 |
Efficiency(%) | 75% @ 0.5um | 75% @ 0.5um | 75% @ 0.5um | |
G3 | G3 | G3 | ||
resistance(pa) | <30 Pa | <30Pa | <30 Pa | |
parameter | Power supply | 380v/50Hz | 380v/50Hz | 380v/50Hz |
Net power(kw) | 1.5 kw | 3kw | 4.5 kw | |
packing size (mm) | 1500x1200x2250 | 1500x2200x2250 | 1500x3200x2250 | |
Packing material | Standard Export Poly wood Packing(Fumigant free material) | |||
Weigh | 320kgs | 650kgs | 960kgs | |
Illustrate
1: Control board 2: Infrared Indicator 3: Per-filter 4: Power Indicator 5: Emergency switch 6: Working light 7: HEPA air filter (H13 99.995%@0.3um) 8: Door 9: Fan 10: Door Closer 11: Nozzle 12: Purification light
Application
Clean room air shower products are a kind of local cleaning equipment with strong versatility. They are installed between clean rooms and non clean rooms. It has been applied in many fields, such as food and beverage, biochemistry, precision instrument, electronic, photoelectric, microelectronics, fiber optic cable, precision machinery, biopharmaceutical, aeronautics and Astronautics and so on.
/ Certificated
Our Service
1：Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: Air Shower Spare Part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request)
Note: HEPA air filter should be replacement in half and one year. Pre-filter
should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
