Company Advantages1. HAOAIRTECH hepa filter for cleanroom is made according to strict specifications established by the International Organization for Standardization (ISO) that develops and publishes international standards for just about everything. The product comes with 1-2 years of warranty period
2. It is widely accepted that HAOAIRTECH now has gained much popularity since founded for its high quality and reasonable price. With the shell galvanized, the product is crack-resistant and wear-resistant
3. The testing of the product is strictly conducted and thus it meets the quality standards. The product creates a high cleanliness working environment
Characteristics

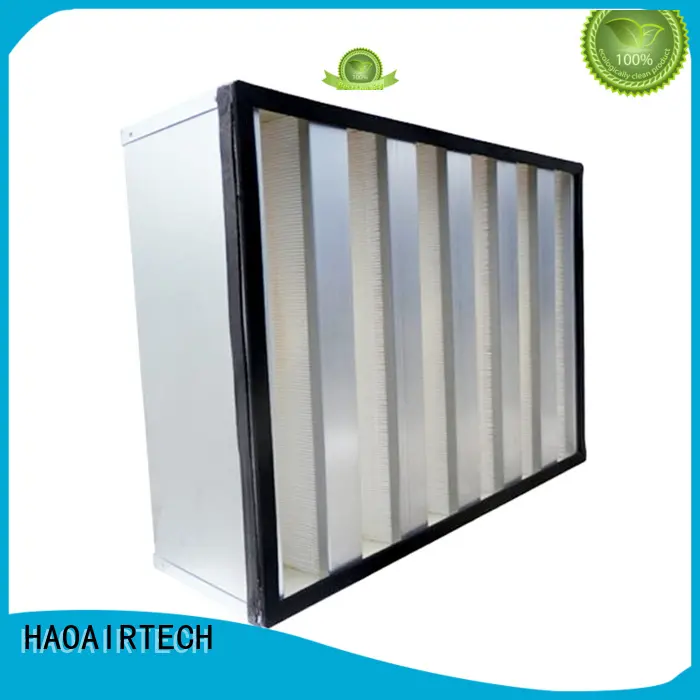

The media material is super glass fibre for 0.3um particulate
It is patent technology to ensure the V type passage in low resistance.
Neoprene /EVA prevent the air leaking in operation
GL or AL material frame for your choose.
V Type special frame can let the hepa air filter have more big media area.
More high air volume and more lower resistance
Adopting the laser to scan the filter one by one ( MPPS)
100 % provide the test report for each V-Bank HEPA air filter
Filtration Efficiency: H13 ,H14,(EN1822). 99.95%-99.995%@0.3um
Applied to the terminal filtration of the air-condition filtration system
/ Products Parameter
Dimension(mm)
(W*H*D) | Pack NO | Rate Air Flow
(m3/h) | Media Area
(m2) | Dust Holding
(g) | Rate primary Resistance(Pa)
(H13-H14) | Finally
Resistance
(Pa) |
285X285X292 | 2 | 700 | 5.42 | 325 | 220pa | 400-600pa |
592X592X292 | 3 | 2100 | 16.43 | 986 |
592X592X292 | 4 | 2800 | 21.91 | 1315 |
610X610X292 | 5 | 3600 | 28 | 1692 |
610X915X292 | 6 | 4300 | 34 | 2031 |
484X484X292 | 3 | 1700 | 13.5 | 811 |
610X305X292 | 5 | 1800 | 14.5 | 866 |
305X610X292 | 3 | 2150 | 17 | 1015 |
630X630X292 | 5 | 3700 | 29 | 1746 |
600X600X292 | 5 | 3500 | 27 | 1665 |
570X570X292 | 4 | 2700 | 21 | 1267 |
320X320X292 | 3 | 1150 | 9 | 544 |
515X515X292 | 4 | 2400 | 19 | 1148 |
610X484X292 | 5 | 2850 | 22.5 | 1351 |
490X592X292 | 4 | 2800 | 22 | 1315 |
592X490X292 | 4 | 2300 | 18 | 1094 |
/ Primary Resistance & Face Velocity Diagram
![hepa filter manufacturers for dust colletor hospital HAOAIRTECH 12]()
/ Product Details
part.1
Hepa Air Filter With EVA Gasket
part.2
Hepa Air Filter With EVA Gasket
part.3
Mini-Pleats Media Compact
part.4
Air Filter Dust Detection Test
Application
V Bank HEPA air filter suitable for hospital, electronic industry ,food,Pharmaceutical ,
bioengineering,precision instrument, electron semiconductors and dust-free room, national defense,aerospace field and so on .
/ package
Company Features1. Guangzhou HaoAir Purification Technology Co.,Ltd. is a professional company that centers on improving technology.
2. Guangzhou HaoAir Purification Technology Co.,Ltd. offers best quality for hepa
filter manufacturers with best service. Inquire!
