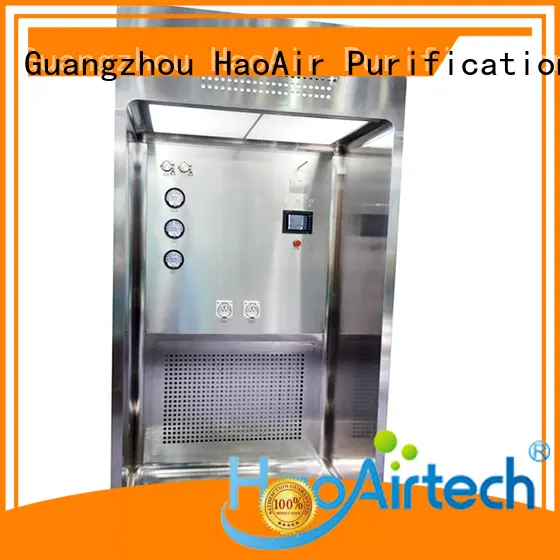

HAOAIRTECH weighing booth manufacturer for biological pharmacy
1. In the manufacturing process of HAOAIRTECH weighing booth , routing inspection is strengthened to make sure the quality meets the hardware regulations and requirements.
2. weighing booth makes full use of dispensing unit materials, thus has features of portable sampling booth .
3. The product has won a lot of praises by serving customers well in the industry.
4. The product is priced low and has a broad market application prospect.
LCD touchable screen display with air speed control
Negative Pressure Laminar Flow
GMP Modular design with minimized joints and seams.
5 different filters configuration available utilizing combination of G4,F8.H13,H14 and PLF Screens .
Gel sealant HEPA Air Filter(99.995%@0.3um) for high purification rank
Purification rank: Class100 /ISO5
Air speed: 0.45m/s+_20%
10% Exhaust air leaking (Adjustable)
Introduction
Weighting booth provide operator, process and product protection by utilizing HEPA filtered unidirectional laminar air flow booth to maintain an ISO5 environment at rest within the work zone and capture particulates during open handling processes .
MODEL | HA-DB1000 | HA-DB1500 | HA-DB2000 |
External size (mm) | 1200x1500x2400mm | 1500x1700x2400mm | 2000x1800x2400mm |
Work zone (mm) | 1100x1200x2000mm | 1400x1200x2000mm | 1900x1300x2000mm |
Purification rank | Class 100(ISO5) | ||
Air speed | 0.45m/s +_20% | ||
Material（Option） | 1: Entirety Stainless Steel 201/304/316.(T=1.2/1.5mm) | ||
Control system | 1: LCD touchable screen display with air speed adjustable and constant temperature and constant humidity data check. | ||
Noise level(dB) | <65dB | ||
Filter step | 3 Step | ||
HEPA filter | 99.995% @ 0.3um Gel sealant mini--pleats HEPA Air Filter | ||
Secondary filter | F8 pocket air filter | ||
Pre-filter Efficiency | G4 Z-Line panel air filter | ||
Power supply | 380V/50HZ OR 220V/50HZ | ||
Packing material | Standard Export Poly wood Packing(Fumigant free material) | ||
Application
Weighting booth is designed such that through the different configurations it can be applied but not limited to the follow field : food ,electronic, robotic, nutraceutical, animal , cosmetic , biological , and pharmaceutical .
/ Certificated
Our Service
1：Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: Air Shower Spare Part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request)
Note: HEPA air filter should be replacement in half and one year. Pre-filter
should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. has years of involvement in manufacturing weighing booth . We are gradually growing up into one of the most trustworthy manufacturers.
2. We have prioritized many factors in selecting the factory location. Our factory now is seated in a government support zone where several incentives, concessions, and tax holidays are available, which enables us to save many costs in production.
3. HAOAIRTECH always stays on the aim of being a professional manufacturer. Inquire! Guangzhou HaoAir Purification Technology Co.,Ltd. is committed to 'ensuring that every customer in the world has high-quality dispensing unit '. Guangzhou HaoAir Purification Technology Co.,Ltd. attaches importance to supervision and evaluation to fully enhance brand awareness, social reputation and loyalty. Inquire! With the excellent service, HaoAir Purification is highly valued by customers at home and abroad. Inquire!
