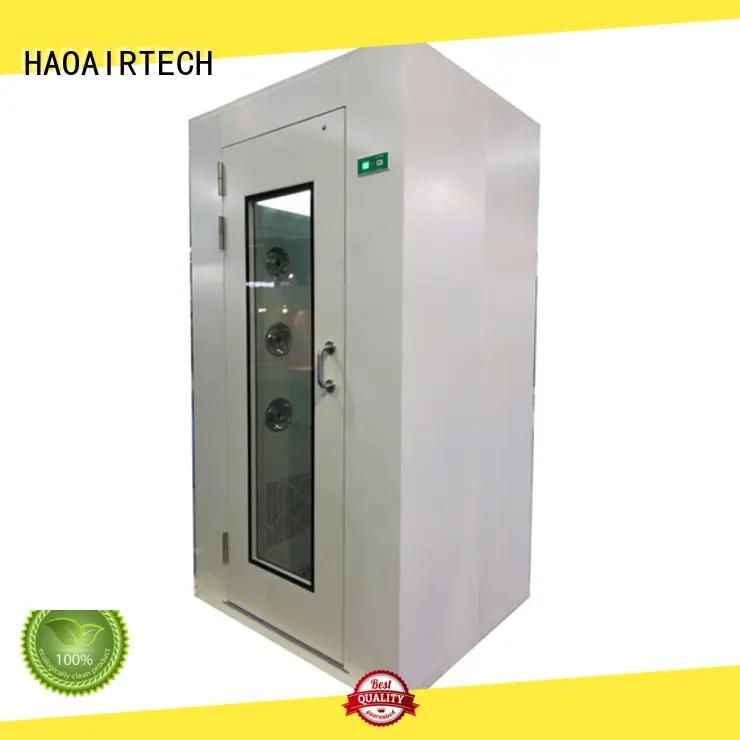

HAOAIRTECH vertical air shower with automatic swing door for large scale semiconductor factory

Company Advantages
1. air shower boasts its original and unique design.
2. The product is developed by industry experts, passing thousands of stability tests.
3. By setting up the quality assurance system, HAOAIRTECH has enough capability to produce exquisite air shower with high quality.

Introduction :

In the modern electronics industry , the control requirements for dust are getting higher and higher , and the level of clean room also becomes higher and higher .
In order to meet the requirements of modern electronics industry , using the original wind of the air shower , the ions emitted by the static eliminator are quickly taken out , this anti-static air shower room not only can blow out the dust from the human body , but also eliminate the static electricity in the human body and the air .

Application :

Various manufacturing industries such as electronics , optoelectronics , semiconductors , plastics , films , and printing .

Features :

1. Anti - static air shower room’s cabinet adopts power coated steel which is generally sprayed with anti - static spray metal ink with anti - static function . The coating has good adhesion, toughness , abrasion resistance , gloss and color retention , high gloss and decorative .
2. In addition to the electrostatic ion bar installed inside the anti - static air shower , and it will reach the blowing area with the wind blown through the nozzle , and then the static electricity on the surface of the person or object is neutralized , which helps to achieve the goal of eliminating static electricity .
3. The anti - static air shower room is equipped with a 360-degree adjustable stainless steel nozzle , which can minimize dust particles . Moreover , the blowing time can be adjusted freely from 0 to 99s , and the factory setting time is usually 15 seconds .
4. Anti - static air shower room can be equipped with infrared automatic induction , intelligent control panel , human voice prompt function . In addition , an emergency stop device is also provided . When the air shower fails , the power supply can be quickly cut off , so that all the doors of the anti-static air shower are opened . The safety of the user is largely ensured .
5. The anti - static air shower can fundamentally eliminate the root cause of static electricity , ensure the product quality of the electronics industry , and improve production efficiency .



Specification:

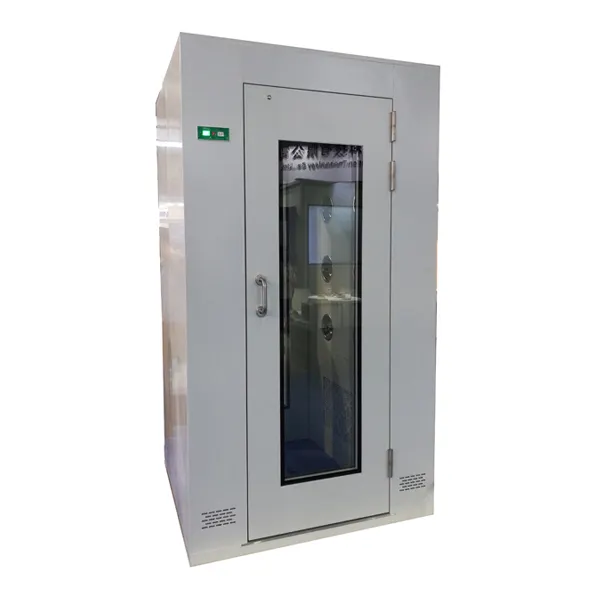

Anti-static Air Shower
Model		HA- AP1		HA – AP2	HA– AP3
External Size (W*D*H)mm		1200X1000X2180		1200X2000X2180	1200X3000X2180
Internal Size (W*D*H)mm		800X930X1910		800X1930X1910	800X2390X1910
Persons per cycle		1-2 persons		2-4 persons	3-6persons
Air Shower Duration		Factory set at 15 seconds (0-99s adjustable)
Construction		Power coated steel
SUS Nozzle		12pcs	24pcs		36pcs
Fan Consumption		750w*1 set	750w*2 sets		750w*3 sets
Fan Speed		25m/s
Fluorescent Lamp		20w*1	20w*2		20w*3
Noise Level		<62dB
Hepa filter	Size	630X630X69mm
	Efficiency	99.99% @0.3um
	Resistance	<220pa
Pre-filter	Size	785X385X21mm
	Efficiency	75% @5um
	Resistance	<30pa
Electrical	Power	380V / 50HZ

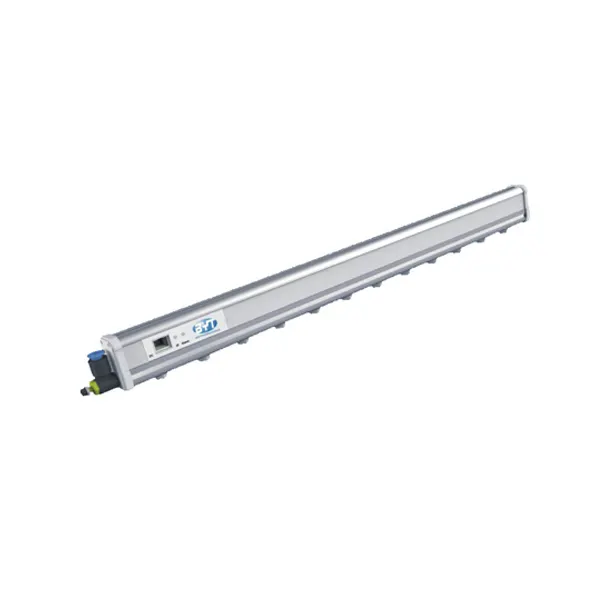

Anti-static ion bar Features
* It is a rod type, horizontal type static eliminator.
* Made of the latest patented anti-static technology, excellent electrical performance indicators.
* With two sets of independent positive and negative high voltage electrodes, long service life.
*Special strip slots on the bottom of the rod, which can be fixed by bolts.
*Works under high voltage and micro current conditions, and has good safety performance.
* Eliminate static electricity and have good ion balance.
