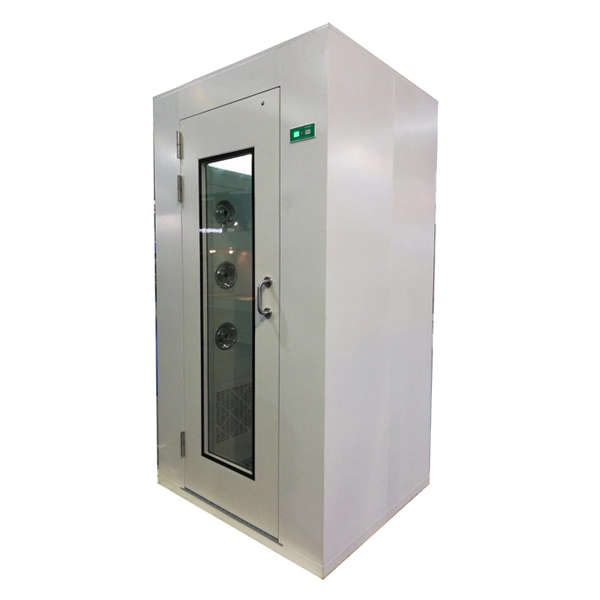

Automatic Anti-Static Air Shower Room For Electronics Industry

    oops...!

    no product data.

    Go to homepage

    Introduction :

    In the modern electronics industry , the control requirements for dust are getting higher and higher , and the level of clean room also becomes higher and higher .
    In order to meet the requirements of modern electronics industry , using the original wind of the air shower , the ions emitted by the static eliminator are quickly taken out , this anti-static air shower room not only can blow out the dust from the human body , but also eliminate the static electricity in the human body and the air .


    Application :

    Various manufacturing industries such as electronics , optoelectronics , semiconductors , plastics , films , and printing .


    Features :

    1. Anti - static air shower room’s cabinet adopts power coated steel which is generally sprayed with anti - static spray metal ink with anti - static function . The coating has good adhesion, toughness , abrasion resistance , gloss and color retention , high gloss and decorative .
    2. In addition to the electrostatic ion bar installed inside the anti - static air shower , and it will reach the blowing area with the wind blown through the nozzle , and then the static electricity on the surface of the person or object is neutralized , which helps to achieve the goal of eliminating static electricity .
    3. The anti - static air shower room is equipped with a 360-degree adjustable stainless steel nozzle , which can minimize dust particles . Moreover , the blowing time can be adjusted freely from 0 to 99s , and the factory setting time is usually 15 seconds .
    4. Anti - static air shower room can be equipped with infrared automatic induction , intelligent control panel , human voice prompt function . In addition , an emergency stop device is also provided . When the air shower fails , the power supply can be quickly cut off , so that all the doors of the anti-static air shower are opened . The safety of the user is largely ensured .
    5. The anti - static air shower can fundamentally eliminate the root cause of static electricity , ensure the product quality of the electronics industry , and improve production efficiency .



    Automatic  Anti-Static Air Shower Room For Electronics Industry 3

    Automatic  Anti-Static Air Shower Room For Electronics Industry 4

    Specification:


    Anti-static Air Shower

    Model

    HA- AP1

    HA – AP2

    HA– AP3

    External Size

    (W*D*H)mm

    1200X1000X2180

    1200X2000X2180

    1200X3000X2180

    Internal Size

    (W*D*H)mm

    800X930X1910

    800X1930X1910

    800X2390X1910

    Persons per cycle

    1-2 persons

    2-4 persons

    3-6persons

    Air Shower Duration

    Factory set at 15 seconds (0-99s adjustable)

    Construction

    Power coated steel

    SUS Nozzle

    12pcs

    24pcs

    36pcs

    Fan Consumption

    750w*1 set

    750w*2 sets

    750w*3 sets

    Fan Speed

    25m/s

    Fluorescent Lamp

    20w*1

    20w*2

    20w*3

    Noise Level

    <62dB

    Hepa filter

    Size

    630X630X69mm

    Efficiency

    99.99% @0.3um

    Resistance

    <220pa

    Pre-filter

    Size

    785X385X21mm

    Efficiency

    75% @5um

    Resistance

    <30pa

    Electrical

    Power

    380V / 50HZ

    Anti-static ion bar Features
    *
    It is a rod type, horizontal type static eliminator.
    * Made of the latest patented anti-static technology, excellent electrical performance indicators.
    * With two sets of independent positive and negative high voltage electrodes, long service life.
    *Special strip slots on the bottom of the rod, which can be fixed by bolts.
    *Works under high voltage and micro current conditions, and has good safety performance.
    * Eliminate static electricity and have good ion balance.
