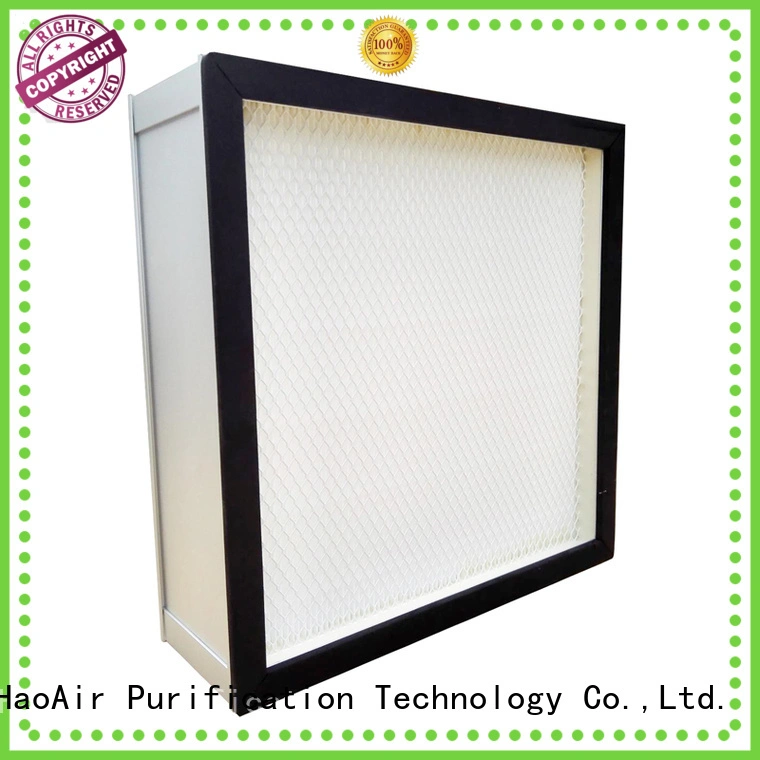

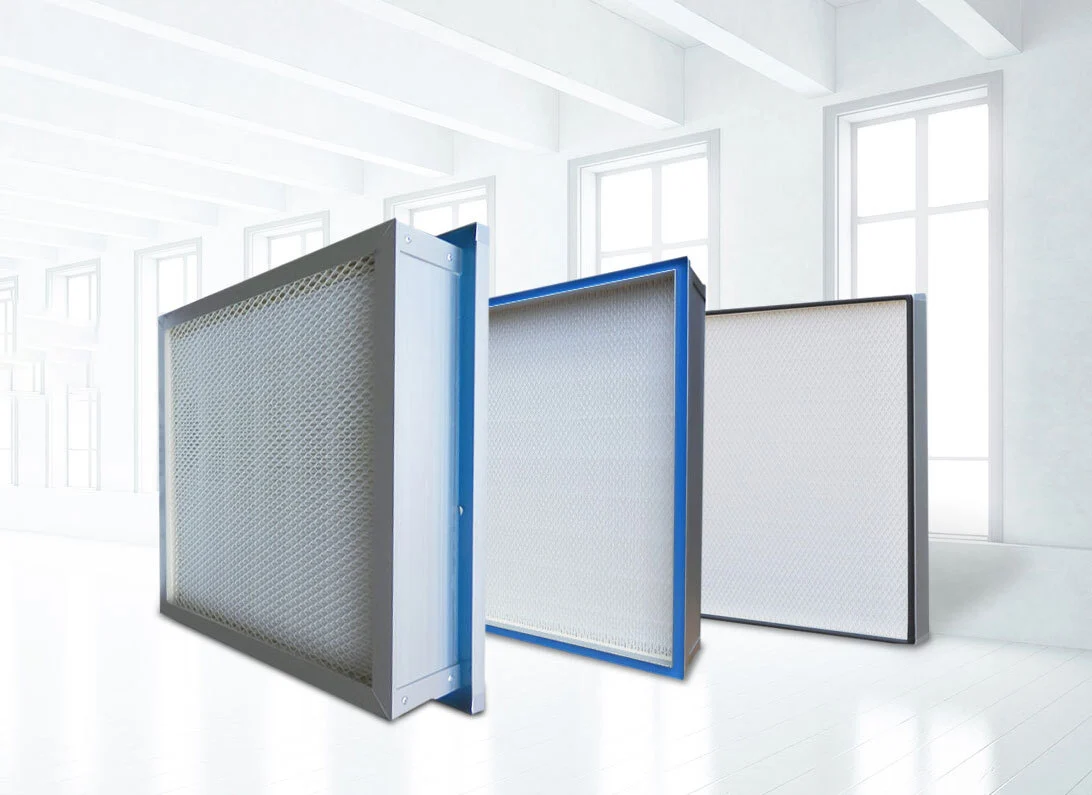

HAOAIRTECH vacuum cleaner hepa filter with flanger for electronic industry1
1. The design of HAOAIRTECH hvac hepa filter uses a holistic approach. It considers necessary design elements for high performance such as sizing, ventilation, seam technology, and body mapping technology.
2. Made of food-grade materials, the product is able to dehydrate various kinds of food without the worry of released chemical substances. For example, acidic food can be handled in it too.
3. With its proper fit, this product is able to offer maximum support for people's feet and excellent walking experiences for people.

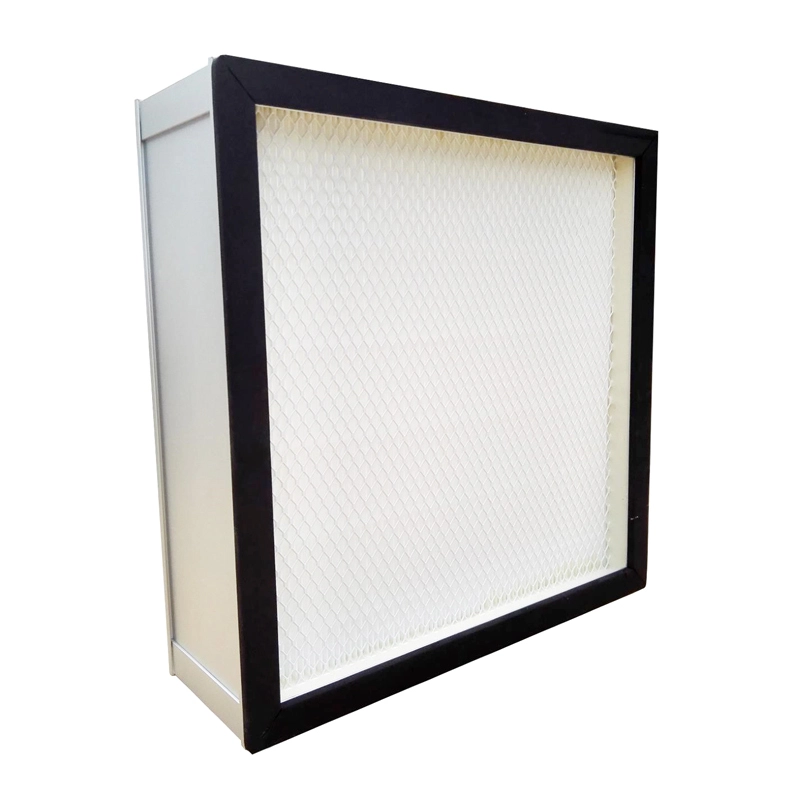

It is patent technology to ensure the V type passage in low resistance.

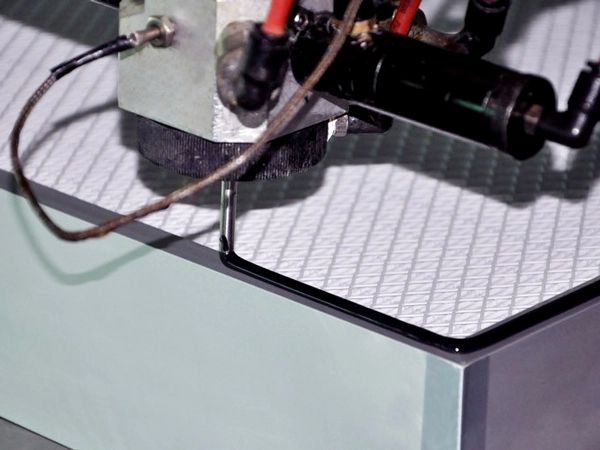

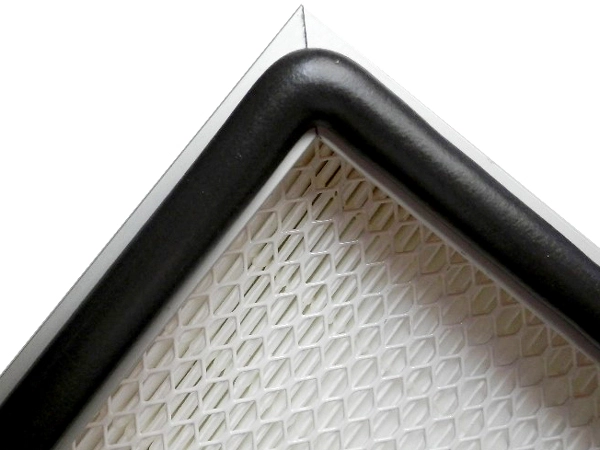

Neoprene /EVA or PU gasket prevent the air leaking in operation.
Extrude and anodized aluminum frame in 50mm, 69mm, 80mm, 90mm for choose.
While color metal screen to protect the filtration media without any damage.
Light weight and easy to install

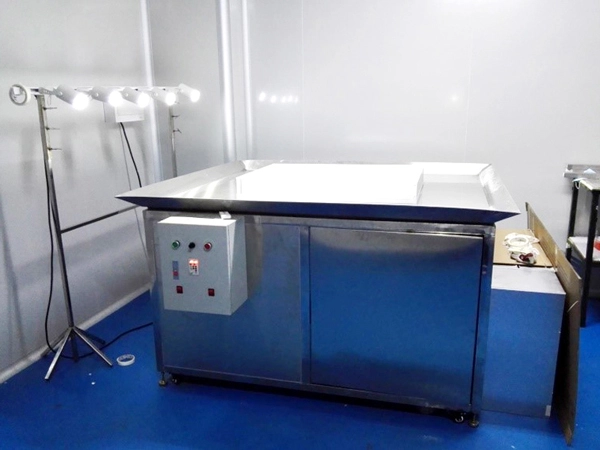

Adopting the laser to scan the filter one by one ( MPPS).
100 % provide the test report for each mini-pleats HEPA air filter
Filtration Efficiency: H13 ,H14,(EN1822). 99.95%-99.995%@0.3um
Applied to the terminal filtration of the air-condition filtration system
Media | Super glass fibre |
Frame | AL/GL/SUS201/304 frame |
Gasket | Neoprene /EVA or PU |
Media spacer | Hot melt |
Frame thickness (mm) | 46/50/69/80/90/96/120 |
Screen | Metal screen |
Efficiency | >99.999%@0.3um |
Max Temperature | 70℃ |
Max Humidity | 100% |
Dimension(mm) | Rate Air Flow | Media Area | Dust Holding | Rate primary | Finally |
320X320X50 | 200 | 1.99 | 120 |
H13 :<200Pa |
400-600pa |
484X484X50 | 450 | 4.51 | 270 | ||
610X610X50 | 700 | 7.13 | 430 | ||
915X610X50 | 1000 | 10.58 | 650 | ||
1170X570X50 | 1200 | 12.57 | 750 | ||
1220X610X50 | 1350 | 14.04 | 850 | ||
320X320X69 | 250 | 2.89 | 180 | ||
484X484X69 | 600 | 6.55 | 400 | ||
610X610X69 | 1000 | 10.37 | 620 | ||
915X610X69 | 1500 | 15.39 | 920 | ||
1170X570X69 | 1800 | 18.28 | 1100 | ||
1220X610X69 | 2000 | 20.41 | 1230 | ||
484X484X96 | 1000 | 10.24 | 620 | ||
610X610X96 | 1500 | 16.2 | 980 | ||
915X610X96 | 2300 | 24.01 | 1450 | ||
1170X570X96 | 2800 | 28.56 | 1720 | ||
1220X610X96 | 3100 | 31.89 | 1920 |
Application
Mini-pleats HEPA air filter suitable for hospital, electronic industry ,food,Pharmaceutical , bioengineering,precision instrument, electron semiconductors and dust-free room, national defense,aerospace field, fan filter unit, HEPA unit , air shower, dynamic pass box, dispensing booth ,softwall cleanroom, laminar flow booth and so on .
Our Service
1: 100% scann air leaking test for each Mini-PleatsHEPA air flter, test report accompany all of
HEPA air filter.
2: 2 pcs in one carton .each air filter warp by PE Bag .
3: Small order is polywood packing so that we can send out by sea in LCL.
4: If order amount more than 20000USD, We accept the 100% LC at sight against with
document.
5: Free sample possible for you confirmation of quality .
Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. is a leading developer and supplier of vacuum cleaner hepa filter in China.

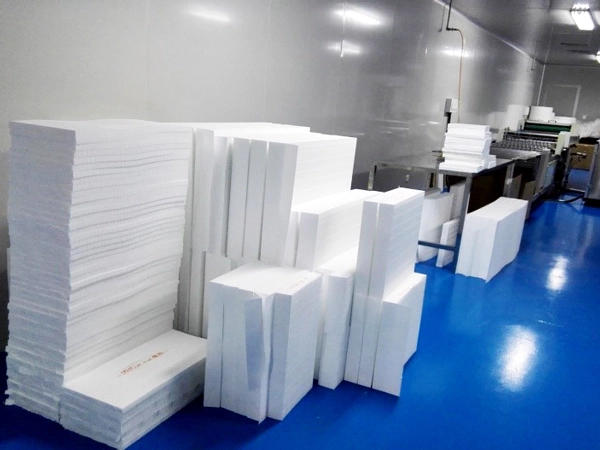

2. The factory has set up and implemented a standardized production management system. This system has clearly stipulated requirements for three parts, namely, raw materials sourcing, workmanship, and waste control.
