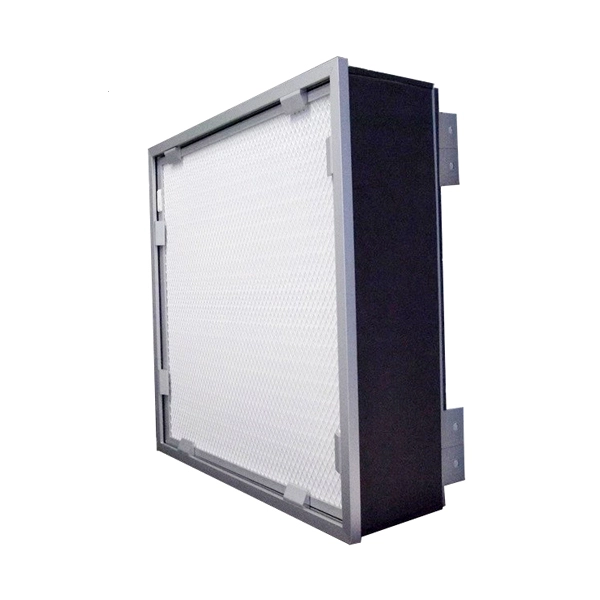

Replaceable HEPA filter with hood

    oops...!

    no product data.

    Go to homepage



    Characteristics
    The Replaceable HEPA filter with hood cabinet are designed in closed integration which prevent the air leakage. Meanwhile the heap filter replaceable from cleanroom inside.
    This filter light weight and easy maintain
    Air duct is galvanized steel and the diameter is 250mm, 300mm and 350mm for your choose
    Control valve for air flow adjust (optional).
    The media material is super glass fibre for 0.3um particulate.
    100 % provide the test report for each mini-pleats HEPA air filter
    Filtration Efficiency: H13 ,H14,(EN1822). 99.95%-99.995%@0.3um
    Replaceable HEPA filter with hood 5



    / Operating Conditions


     Media

    Super    glass fibre

     Frame

    AL/GL frame

    Gasket

    Neoprene /EVA

    Media spacer

    Hot melt

    cabinet thickness    (mm)

    150/180mm

    Filter frame

    69mm

    Efficiency

    99.99%-99.999%@0.3um

    Max Temperature

    70℃

    Max Humidity

    100%



    / Products Parameter


    Cabinet size(mm)
         (W*H*D)

    Filter size(mm)
         (W*H*D)

      Rate Air Flow
         (m3/h)

    Media Area
         (m2)

    Dust Holding
           (g)

    Rate primary
    Resistance
         (Pa)

     Finally
    Resistance
         (Pa)

    Efficiency

    360X360X180

    320x320x69

    264

    2.93

    126














    <220pa














    400-600pa














    H13-H14

    524X524X180

    484x484x69

    600

    6.61

    397

    650X650X180

    610x610x69

    1000

    10.44

    627

    670X670X180

    630x630x69

    1050

    11.13

    668

    650X955X180

    610x915x69

    1500

    15.42

    925

    650x1260x180

    610x1220x69

    2000

    20.40

    1224

    670x1300x180

    630x1260x69

    2100

    21.76

    1306

    345x345x180

    305x305x69

    240

    2.66

    160

    345x650x180

    305x610x69

    500

    5.09

    305

    345x955x180

    305x915x69

    750

    7.52

    450

    640x640x180

    600x600x69

    980

    10.11

    607

    640x1240x180

    600x1200x69

    1980

    19.74

    1185

    650x1280x180

    610x1240x69

    2050

    20.74

    1244

    524x1008x180

    484x968x69

    1250

    12.85

    771



    / Product Details



    part.1
    Replaceable HEPA air filter
    Replaceable HEPA filter with hood 6

    part.2
    Replaceable HEPA air filter
    Replaceable HEPA filter with hood 7

    part.3
    Mini-Pleats Media Compact
    Replaceable HEPA filter with hood 8

    part.4
    Air Filter Dust Detection Test
    Replaceable HEPA filter with hood 9


    Application

    The replaceable HEPA air filter with hood suitable for high and strict working environment such as surgery, lab, pharmacy , micro-electric ,film production  in terminal filtration of the air-condition filtration system



    / package


    Replaceable HEPA filter with hood 10
    Replaceable HEPA filter with hood 11
    Replaceable HEPA filter with hood 12
