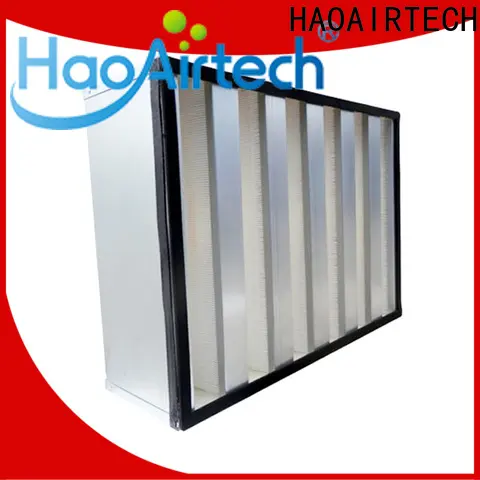

HAOAIRTECH v bank ulpa filter with al clapboard for electronic industry 1
HAOAIRTECH v bank ulpa filter with al clapboard for electronic industry 2
HAOAIRTECH v bank ulpa filter with al clapboard for electronic industry 3
HAOAIRTECH v bank ulpa filter with al clapboard for electronic industry 4
HAOAIRTECH v bank ulpa filter with al clapboard for electronic industry 5
HAOAIRTECH v bank ulpa filter with al clapboard for electronic industry 6
HAOAIRTECH v bank ulpa filter with al clapboard for electronic industry 7
HAOAIRTECH v bank ulpa filter with al clapboard for electronic industry 8
HAOAIRTECH v bank ulpa filter with al clapboard for electronic industry 9
HAOAIRTECH v bank ulpa filter with al clapboard for electronic industry 10
HAOAIRTECH v bank ulpa filter with al clapboard for electronic industry 1
HAOAIRTECH v bank ulpa filter with al clapboard for electronic industry 2
HAOAIRTECH v bank ulpa filter with al clapboard for electronic industry 3
HAOAIRTECH v bank ulpa filter with al clapboard for electronic industry 4
HAOAIRTECH v bank ulpa filter with al clapboard for electronic industry 5
HAOAIRTECH v bank ulpa filter with al clapboard for electronic industry 6
HAOAIRTECH v bank ulpa filter with al clapboard for electronic industry 7
HAOAIRTECH v bank ulpa filter with al clapboard for electronic industry 8
HAOAIRTECH v bank ulpa filter with al clapboard for electronic industry 9
HAOAIRTECH v bank ulpa filter with al clapboard for electronic industry 10

HAOAIRTECH v bank ulpa filter with al clapboard for electronic industry

Brand:
HAOAIRTECH
Model number:
HA-HEPA-V Series
OEM /ODM:
Yes
Certificated:
Rosh
Start port:
Guangzhou
Delivery time:
8 working days after we get the deposit.
MOQ:
10sets
Country of Original:
China
Supply ability:
set/one month
Payment term:
T/T , L/C , Western union
Application:
Worker in Clean room
Inquiry



Characteristics
The media material is super glass fibre for 0.3um particulate
It is patent technology to ensure the V type passage in low resistance.
Neoprene /EVA prevent the air leaking in operation
GL or AL material frame for your choose.
V Type special frame can let the hepa air filter have more big media area.
More high air volume and more lower resistance
Adopting the laser to scan the filter one by one ( MPPS)
100 % provide the test report for each V-Bank HEPA air filter
Filtration Efficiency: H13 ,H14,(EN1822). 99.95%-99.995%@0.3um
Applied to the terminal filtration of the air-condition filtration system
HAOAIRTECH v bank ulpa filter with al clapboard for electronic industry 11



/ Products Parameter


 Dimension(mm)
     (W*H*D)

Pack NO

  Rate Air Flow
      (m3/h)

Media Area
     (m2)

Dust Holding
     (g)

Rate primary
Resistance(Pa)
     (H13-H14)

 Finally
Resistance
     (Pa)

285X285X292

2

700

5.42

325









220pa









400-600pa

592X592X292

3

2100

16.43

986

592X592X292

4

2800

21.91

1315

610X610X292

5

3600

28

1692

610X915X292

6

4300

34

2031

484X484X292

3

1700

13.5

811

610X305X292

5

1800

14.5

866

305X610X292

3

2150

17

1015

630X630X292

5

3700

29

1746

600X600X292

5

3500

27

1665

570X570X292

4

2700

21

1267

320X320X292

3

1150

9

544

515X515X292

4

2400

19

1148

610X484X292

5

2850

22.5

1351

490X592X292

4

2800

22

1315

592X490X292

4

2300

18

1094



/ Primary Resistance & Face Velocity Diagram


HAOAIRTECH v bank ulpa filter with al clapboard for electronic industry 12



/ Product Details



part.1
Hepa Air Filter With EVA Gasket
HAOAIRTECH v bank ulpa filter with al clapboard for electronic industry 13

part.2
Hepa Air Filter With EVA Gasket
HAOAIRTECH v bank ulpa filter with al clapboard for electronic industry 14

part.3
Mini-Pleats Media Compact
HAOAIRTECH v bank ulpa filter with al clapboard for electronic industry 15

part.4
Air Filter Dust Detection Test
HAOAIRTECH v bank ulpa filter with al clapboard for electronic industry 16


Application

V Bank HEPA air filter suitable for hospital, electronic industry ,food,Pharmaceutical , bioengineering,precision instrument, electron semiconductors and dust-free room, national defense,aerospace field and so on .



/ package


HAOAIRTECH v bank ulpa filter with al clapboard for electronic industry 17
HAOAIRTECH v bank ulpa filter with al clapboard for electronic industry 18
HAOAIRTECH v bank ulpa filter with al clapboard for electronic industry 19
