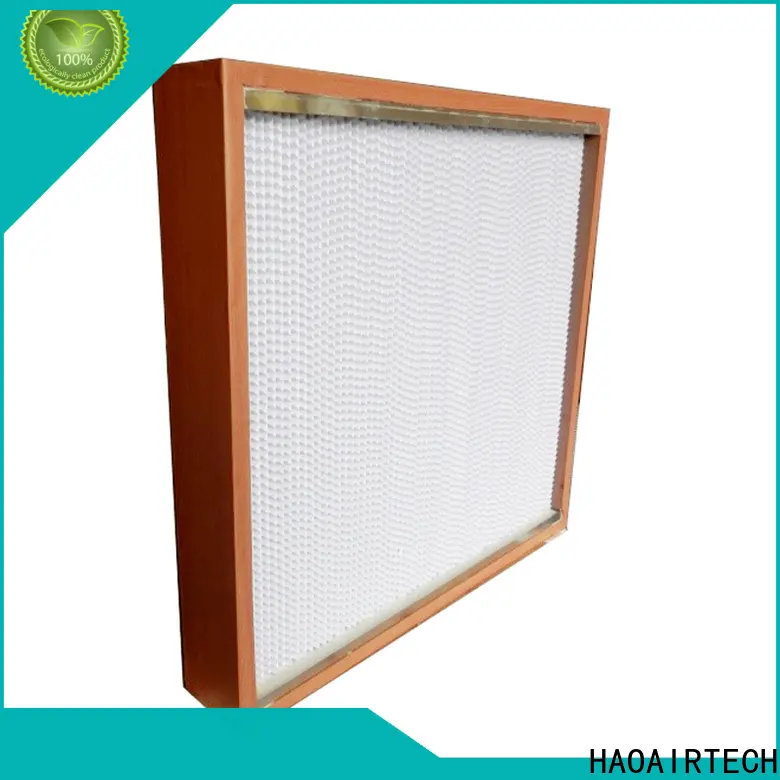

HAOAIRTECH ulpa ulpa filter with one side gasket for electronic industry

Company Advantages
1. ulpa filter tend to be best air hepa filter than other brands. The product creates a clean environment to reduce allergy and asthma symptoms
2. The product will not accumulate bacteria or mildew. Any bacteria on the product will be easily killed by exposure to the sunlight. The product can withstand high temperature
3. The product can stand up strong disinfectants. Its specially coated metal materials make it effectively withstand disinfection environments. The product is of high purification rank

Heap air filter with paper clapboard adopt the special design to keep the space between pleated layers by clapboard. Paper spacers can accurately maintain the distance between the pleat layers, Maximum use of filter material under minimum resistance.

Media	Super glass fibre
Frame	AL/GL/MDF frame
Gasket	Neoprene /EVA or PU
Media    spacer	Hot melt
Frame thickness    (mm)	120/150/220
Clapboard	120g/m paper
Efficiency	99.99%-99.999%@0.3um
Max    Temperature	80℃
Max    Humidity	80%

Dimension(mm)      (W*H*D)	Rate    Air Flow (m3/h)	Media  Area (m2)	Dust  Holding (g)	Rate primary Resistance(Pa) (H13-H14)	Finally Resistance   (Pa)
484X484X120	450	4.4	230	220Pa	400-600pa
610X610X120	700	7.1	370
610X915X120	1050	10.6	560
610X1220X120	1400	14.1	740
484X484X150	600	6	320
610X610X150	1000	9.7	510
610X915X150	1500	14.5	770
610X1220X150	2000	19.3	1020
484X484X220	1000	9.8	600
610X610X220	1600	15.8	920
610X915X220	2300	23.7	1340
610X1220X220	3000	31.6	1750

Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. has devoted many years to the development, design, production and sales of professional ulpa filter . Guangzhou HaoAir Purification Technology Co.,Ltd. includes a group of ulpa air filter designers and production engineers.
2. Guangzhou HaoAir Purification Technology Co.,Ltd. includes a vast selection of specifications and innovative products.
3. HAOAIRTECH continues to be introducing technologies to involve in the procedure of hepa air filter production. Our goal to leverage our synergetic capability to add value to our customers and achieve a win-win situation so as to grow the business together.
