We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

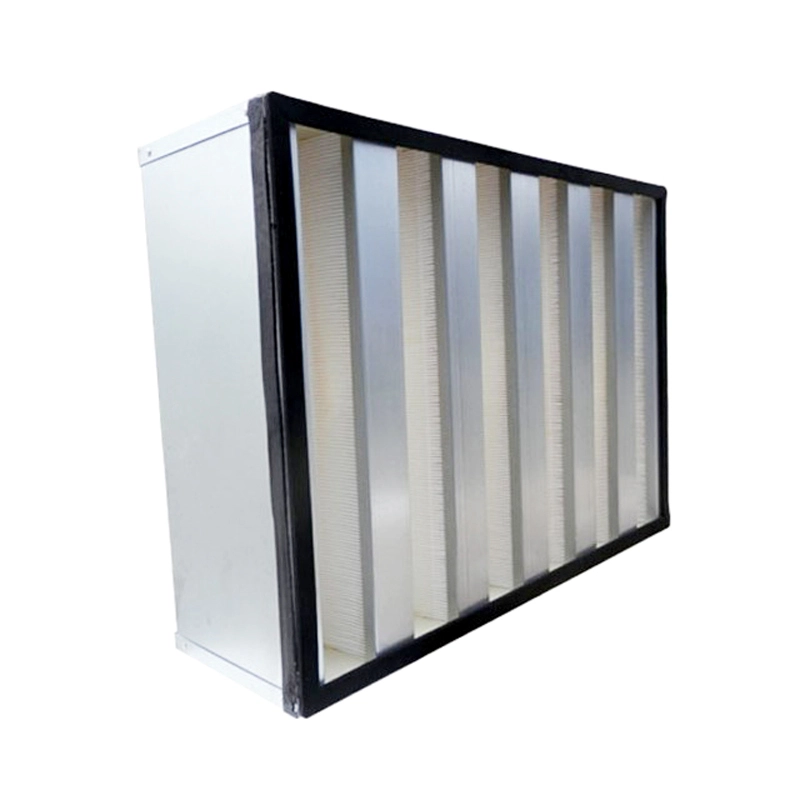

V Bank HEPA Air Filter With Big Air Volume 1

V Bank HEPA Air Filter With Big Air Volume 2

V Bank HEPA Air Filter With Big Air Volume

Brand:

HAOAIRTECH

Model number:

HA-HEPA-V Series

OEM /ODM:

Yes

Certificated:

Rosh

Start port:

Guangzhou

Delivery time:

8 working days after we get the deposit.

MOQ:

10sets

Country of Original:

China

Supply ability:

set/one month

Payment term:

T/T , L/C , Western union

Application:

Worker in Clean room

Inquiry

Write a Review

Characteristics

The media material is super glass fibre for 0.3um particulate
It is patent technology to ensure the V type passage in low resistance.
Neoprene /EVA prevent the air leaking in operation
GL or AL material frame for your choose.
V Type special frame can let the hepa air filter have more big media area.
More high air volume and more lower resistance
Adopting the laser to scan the filter one by one ( MPPS)
100 % provide the test report for each V-Bank HEPA air filter
Filtration Efficiency: H13 ,H14,(EN1822). 99.95%-99.995%@0.3um
Applied to the terminal filtration of the air-condition filtration system

V Bank HEPA Air Filter With Big Air Volume 3

/ Products Parameter

Dimension(mm) (WHD)	Pack NO	Rate Air Flow (m3/h)	Media Area (m2)	Dust Holding (g)	Rate primary Resistance(Pa) (H13-H14)	Finally Resistance (Pa)
285X285X292	2	700	5.42	325	220pa	400-600pa
592X592X292	3	2100	16.43	986
592X592X292	4	2800	21.91	1315
610X610X292	5	3600	28	1692
610X915X292	6	4300	34	2031
484X484X292	3	1700	13.5	811
610X305X292	5	1800	14.5	866
305X610X292	3	2150	17	1015
630X630X292	5	3700	29	1746
600X600X292	5	3500	27	1665
570X570X292	4	2700	21	1267
320X320X292	3	1150	9	544
515X515X292	4	2400	19	1148
610X484X292	5	2850	22.5	1351
490X592X292	4	2800	22	1315
592X490X292	4	2300	18	1094

/ Primary Resistance & Face Velocity Diagram

V Bank HEPA Air Filter With Big Air Volume 4

/ Product Details

part.1

Hepa Air Filter With EVA Gasket

V Bank HEPA Air Filter With Big Air Volume 5

part.2

Hepa Air Filter With EVA Gasket

V Bank HEPA Air Filter With Big Air Volume 6

part.3

Mini-Pleats Media Compact

V Bank HEPA Air Filter With Big Air Volume 7

part.4

Air Filter Dust Detection Test

V Bank HEPA Air Filter With Big Air Volume 8

Application

V Bank HEPA air filter suitable for hospital, electronic industry ,food,Pharmaceutical , bioengineering,precision instrument, electron semiconductors and dust-free room, national defense,aerospace field and so on .

/ package

V Bank HEPA Air Filter With Big Air Volume 9

V Bank HEPA Air Filter With Big Air Volume 10

V Bank HEPA Air Filter With Big Air Volume 11
