We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

HAOAIRTECH ulpa ulpa air filter with al clapboard for air cleaner 1
HAOAIRTECH ulpa ulpa air filter with al clapboard for air cleaner 2
HAOAIRTECH ulpa ulpa air filter with al clapboard for air cleaner 3
HAOAIRTECH ulpa ulpa air filter with al clapboard for air cleaner 1
HAOAIRTECH ulpa ulpa air filter with al clapboard for air cleaner 2
HAOAIRTECH ulpa ulpa air filter with al clapboard for air cleaner 3

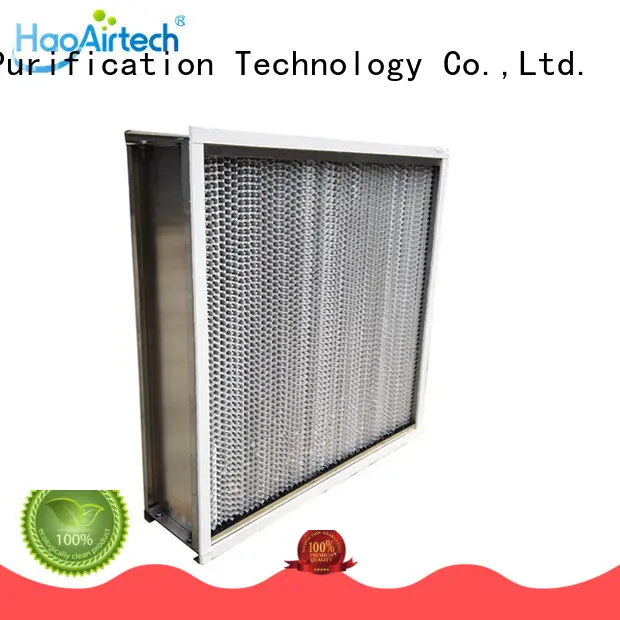

HAOAIRTECH ulpa ulpa air filter with al clapboard for air cleaner

Brand:
HAOAIRTECH
Model number:
HA-HPH
Material:
Stainless steel304 frame
OEM /ODM:
OEM/ODM
Certificated:
SGS
Start port:
HUANGPU,GUANGZHOU
Delivery time:
10 Working days
MOQ:
10sets
Country of Original:
china
Supply ability:
1000sets/per month
Payment term:
T/T IN advance, LC At sight
Application:
High temperture oven
Inquiry


 absolute high temp hEPA filter


Specifications:

 Application: Protection for clean processes at high temperature

Frame: Reinforced stainless steel

Media: Glass Fiber

Max Temperature: 350ºC

Relative Humidity: 100%

Separator:  Aluminium

Gasket : Glass fiber

Sealant: Ceramic

Max Final Pressure Drop: 500Pa

Comment:

Please note installation and assembly instructions! Due to the different thermal expansion

efficient of the individual filter components the ceramic potting may form cracks during

the tempering process. At operating temperature (350 ºC) these filters have an overall efficiency

of 99,97% at 0,3 μm, leackages are possible.

HAOAIRTECH ulpa ulpa air filter with al clapboard for air cleaner 4

Products Parameter

 Dimension

  (mm)

(W*H*D)

  Rate

Air Flow

  (m3/h)

Media Area

   (m2)

Dust Holding

   (g)

Rate primary

Resistance

   (Pa)

 Finally

Resistance

   (Pa)

484X484X120

  450

4.4

230









H12<200Pa

H13 :<210Pa











400-600pa

610X610X120

  700

7.1

370

610X915X120

  1050

10.6

560

610X1220X120

  1400

14.1

740

484X484X150

   600

6.0

320

610X610X150

   1000

9.7

510

610X915X150

   1500

14.5

770

610X1220X150

2000

19.3

1020

484X484X220

1000

9.8

600

610X610X220

1600

15.8

920

610X915X220

2300

23.7

1340

610X1220X220

3000

31.6

1750


Characteristics:


The only high-temperature HEPA filter that can comply with the most stringent FDA GMP requirements.

Pretreated, and prequalified, during the manufacturing process, with an exclusive heat preparation cycle (572º F, 300º C).

Stainless steel face grid is installed on both the air entering and air exiting sides of the filter to ensure protection of the media pack and add to the filter pack’s structural integrity.


HAOAIRTECH ulpa ulpa air filter with al clapboard for air cleaner 5
