HAOAIRTECH ulpa air filter hepa with dop port for electronic industry

Brand:
HAOAIRTECH
Model number:
HA-HEPA-K Series
OEM /ODM:
Yes
Certificated:
Rosh
Start port:
Guangzhou
Delivery time:
8 working days after we get the deposit.
MOQ:
10sets
Country of Original:
China
Supply ability:
500set/one month
Payment term:
T/T , L/C , Western union
Application:
Clean room
Inquiry



Characteristics

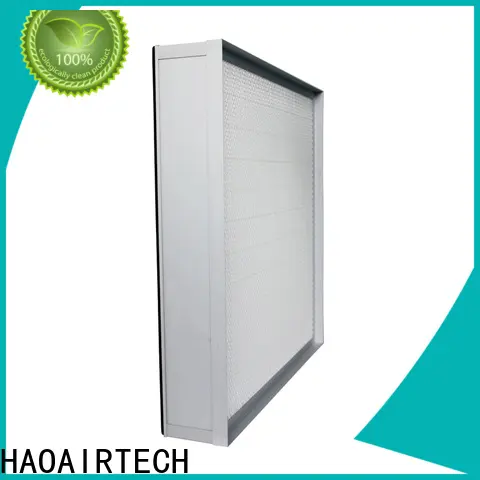

The Knife-edge HEPA filter use the super glass fibre filtration 0.3um particulate.
Patent technology to ensure the V type passage in low resistance.
One side is EVA Gasket , another side is 20 mm high knife –edge compact with gel seal Hepa air filter 100% can prevent the air leaking in working.
Extrude and anodized aluminum frame in 110mm.
While color metal screen to protect the filtration media without any damage .
Adopting the laser to scan the filter one by one ( MPPS).
100 % provide the test report for each mini-pleats HEPA air filter
Filtration Efficiency: H13 ,H14,(EN1822). 99.95%-99.995%@0.3um
HAOAIRTECH ulpa air filter hepa with dop port for electronic industry 10



/ Operating Conditions


 Media

Super    glass fibre

 Frame

AL frame    110mm

Gasket

Neoprene    or EVA

Media spacer

Hot melt

Screen

Metal    screen

Efficiency

>99.999%@0.3um

Max Temperature

 70℃

Max Humidity

100%



/ Products Parameter


Cabinet size(mm)

     (W*H*D)

  Rate Air Flow

       (m3/h)

Media Area       (m2)

Dust Holding          (g)

Rate primary Resistance

                  (Pa)

 Finally Resistanc

           (Pa)

Efficiency

320X320X110

400

4.16

250





<200pa





400-600pa





H13-H14

484X484X110

920

9.42

565

610X610X110

1450

14.9

894

610X915X110

2150

22.12

1327

610X1220X110

2850

29.33

1760

570X570X110

1300

13.

782

570X870X110

1900

19.65

1180

570X1170X110

2550

26.28

1580

610X762X110

1800

18.5

1110

305X762X110

880

9.1

546

762X762X110

2250

23.2

1391

484X968X110

1795

18.46

1108

630X630X110

1540

15.89

953

630x915x110

2222

22.86

1371

600X600X110

1402

14.42

865

600X1200X110

2759

28.38

1703

305X305X110

367

3.78

227

305x610x110

712

7.33

440

305x915x110

1057

10.88

653



/ Product Details



part.1
Knife Edge HEPA air filter
HAOAIRTECH ulpa air filter hepa with dop port for electronic industry 11

part.2
Knife Edge HEPA air filter
HAOAIRTECH ulpa air filter hepa with dop port for electronic industry 12

part.3
Mini-Pleats Media Compact
HAOAIRTECH ulpa air filter hepa with dop port for electronic industry 13

part.4
Air Filter Dust Detection Test
HAOAIRTECH ulpa air filter hepa with dop port for electronic industry 14


Application

Pharmaceutical factory, Biological plant,Food processing plant and other places that require strict control the source of pollution.



/ package


HAOAIRTECH ulpa air filter hepa with dop port for electronic industry 15
HAOAIRTECH ulpa air filter hepa with dop port for electronic industry 16
HAOAIRTECH ulpa air filter hepa with dop port for electronic industry 17
