HAOAIRTECH stainless steel pass box clean room embedded lamps for hospital

Company Advantages
1. Regarding the quality management of HAOAIRTECH clean room box , various quality inspection systems are conducted. It must be scrutinized to check its sealing quality and whether it has any air leakage problem.
2. It is waterproof. The water-resistant coating which is applied to its exterior side makes water from rain or dew to bead up and slip.
3. The product is extremely durable. Every single panel is welded with a welded aluminum frame and the internal structure is made of steel mechanism.
4. Some customers told us that they really appreciate the seam and stitching the product is made. It is not easily fray even it is used heavily.
5. It may help with specific sleep issues to some extent. For those who suffer from night-sweats, asthma, allergies, eczema or are just a very light sleeper, this mattress will help them get a proper night’s sleep.

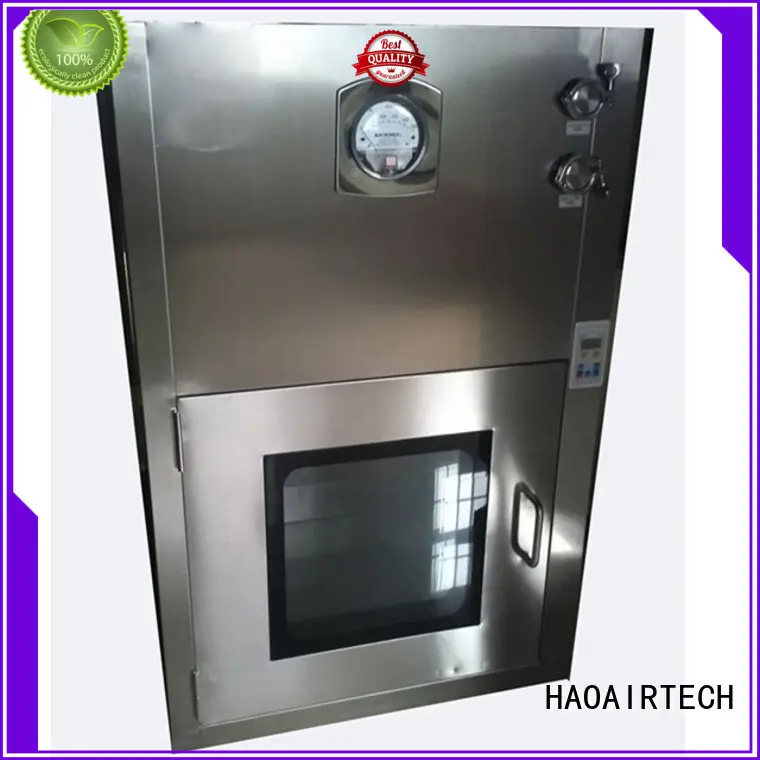

SS304 Dynamic Pass Box

Technical Details:

• Double walled SS 304 /  Powder Coated construction except Filters and motor-blower assemblies which will be in standard execution.

• Minipleat HEPA Filter with hot melt technology, which conforms to EU 13 Grade, with an efficiency rating better than 99.99% for 0.3 µ at supply position.

• Return Air prefilter which conforms to EU 6 Grade, with efficiency of 95% down to 5 micron. These Filters are basically made from micro-Fibre-glass media and are inherently washable.

• Motor, Blower provided are statically and dynamically balanced to supply air flow with sufficient capacity and static pressure for entire life of HEPA. Blower is high performance, noise abated and light weighted.

• Magnehelic Differential Pressure Gauge (0 - 25 mm or 0-50 mm) to monitor pressure drop across HEPA Filter with respect to ambient.

• ON/OFF Switches for motor & lights.

• SS 304 double walled doors with glass view panels, SS handle, hinges, gasket & Automatic Door Bottom Seal as per application.

• Return Air Grills on side walls.

• Electro - Magnetic Interlocking to ensure only one side door will be opened at a time.

• Indicating Lamp on both sides.

• Door release button on both sides.

• DOP Test port at upstream of HEPA filter.

• Fluorescent Light and UV Light as per requirement along with Hour Meter

Model	HA-DPB	HA-SPB
Design type	Dynamic	Static / Passive
Cleanliness level	Class 100	-
Internal Dimension	2 x 2 x 2 Ft.	2 x 2 x 2 Ft.
MOC	Stainless steel 304	Stainless steel 304
Illumination	LED tube light	LED tube light
Air system	Motor-blower with suspension arrangement	-
Filters	Pre filter (95% down to 5 micron) HEPA filter (99.97%) Protected by SS grills	-
Door	Two side doors Glass window SS handles & SS hinges Electromagnetic Interlocking system	Two side doors Glass window SS handles & SS hinges Electromagnetic Interlocking system
Standard Fittings	UV light Light indicators for door SS Handles & SS hinges On / Off Switch for blower	UV light Light indicators for door SS Handles & SS hinges
Power supply	220 Volts / 50 Hz	220 Volts / 50 Hz
Optional	MOC SS 316 / 316 L Differential Pressure Gauge DOP Test Port Flange Test certificates Calibration certificate Mechanical door interlocking Door buzzer UV light hour meter	MOC SS 316 / 316 L Flange Test certificates Mechanical door interlocking Door buzzer UV light hour meter

Company Features
1. With the positioning of high-end pass box clean room brand, HAOAIRTECH win wide reputation in the world.
2. Applying the best technology to the cleanroom pass box has become a good idea.
3. We see sustainability as our responsibility to contribute to a sustainable future in all possible aspects of our business. We put special emphasis on reducing our CO2 emissions, increasing energy efficiency, and minimizing waste. We work closely with our customers to find the perfect combination of products and services to achieve a comprehensive balance between performance and price effectiveness.
