HAOAIRTECH softwall cleanroom enclosures online

Company Advantages
1. Quality, Design, and Functions are the guiding principles for HAOAIRTECH softwall cleanroom . The product can be used to save time for cleaning and vacuuming
2. The product is able to bring out a woman's natural existing beauty, while not posing any potential impact on health. With premium quality, the product is also fit for working under difficult operating conditions
3. The product is versatile and practical. With an aluminum alloy frame and a PVC-coated roof, it can easily handle various weather elements.
4. The product is odor-free. The fabric used is naturally antimicrobial and can effectively resist the growth of bacteria that would produce bad smell. The product can increase the rate of finished products

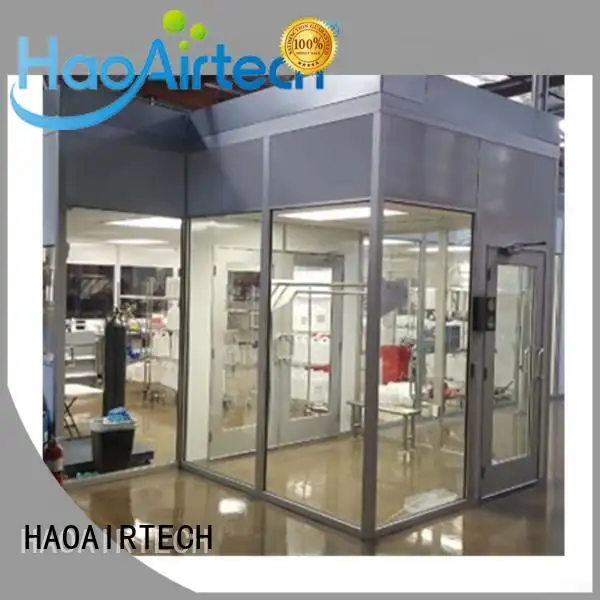

Semiconductor Modular Cleanroom

       Due to the sensitive nature of their products, clean room facilities for microelectronic and semiconductor applications require stringent environmental controls.

These clean rooms also house extremely precise and  expensive equipment such as photolithography, etching, cleaning, doping, and dicing machines.

Hence, any deficiencies in the cleanliness specifications can affect the entire production process. Other common issues in microelectronic & semiconductor

 clean room conception and design are the maximizing of space while also enabling future reconfiguration. For all these reasons, a modular clean room system is often the optimal solution

Haoairtech semiconductor cleanrooms comply with your requirements for the following:airtightnessUV filtered lightnon-retention of particlesnon-proliferation of contaminating agents

For some applications, the cleanroom must also comply with specifications associated with electrostatic charges or discharges (ESD compatibility).

Electrostatics can cause product contamination, product damage from electrostatic discharge (ESD) and production equipment malfunction caused

by ESD-generated electromagnetic interference (EMI). Mecart galvanized steel panels are ESD compliant.

Controlling temperature and humidity is critical to minimize static electricity. haoairtech’s cleanrooms can use high precision humidity (up to ±2%) and temperature (up to ±0.25°C) co

Parameter

Model	HA-1500	HA-2000	HA-3000	HA-5000
External Size (W*D*H)	1500*2000*2530mm	2000*3000*2530mm	3000*4000*2530mm	5000*5000*2530mm
HEPA Filters	99.999% efficiency at 0.3 um
Consumption	500W	800W	1000W	1600W
FFU Nos.	4 pcs	6 pcs	12 pcs	25 pcs
Clean Level	ISO 5 (Class 100), Class A
Control System	control box
Rectangular Tube Material	SUS 304 material frame
Wall Material	Anti-static dustproof curtain
Blower	Built-in centrifugal blower; speed adjustable
UV Lamp	Emission of 253.7nanometers, with UV timer
Air Velocity	0.1~0.6m/s, average 0.45m/s
Noise	≤58db
Power Supply	AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Gross Weight	390Kg	670Kg	1100Kg	2900Kg
Package Size (W*D*H)	2110*930*920mm 2260*660*500mm	3080*980*1260mm 3080*660*550mm	3080*980*1260mm 3080*980*1260mm 4080*660*550mm	4080*980*1260mm 4080*980*1260mm 4080*980*1260mm 1260*660*1260mm 5080*460*500mm
Customized design for clean level, size or material is available

Company Features
1. The strict inspection of each process of producing softwall cleanroom shows the technical strength of HAOAIRTECH.
2. We would like to constantly create new values with 'encouragement' as well as provide products and technology according to the viewpoint of customers and partners. Ask online!
