We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

Portable Clean Room Enclosures with constant temperature and humidity controlled 1
Portable Clean Room Enclosures with constant temperature and humidity controlled 1

Portable Clean Room Enclosures with constant temperature and humidity controlled

    oops...!

    no product data.

    Go to homepage

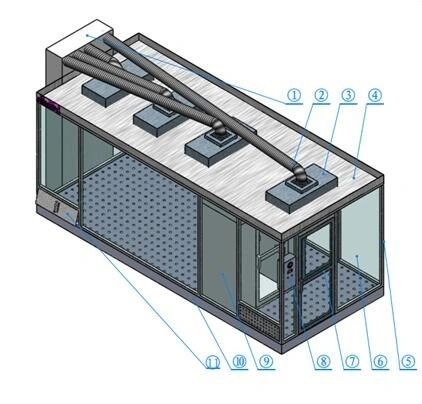

    Illstration :


    1: Air conditioner      2: Air duct             3: Fan filter unit

    4: Top Blind plate     5: Stainless steel frame     6: Acrylic wall

    7: SS hinged door      8: Control box        9: Air shower

    10Raised floor      11: pressure damper



    Product Features

    Purification Rank : Class100-10000

    Low cost , high speed and easy upgrading

    The structure is solid, stand independently and freely

    The cleanroom can be quickly installed in the existing ordinary environment and improve the working environment.
    Fan filter unit with mini-pleats HEPA filter/ULPA filter

    Material : stainless steel 304 or steel with milk color powder coated

    perssure Relief valve one set.

    Control Box  :

    A: Control the power on/off

    B: control the fan filter unit air speed  UP/Down

    C: Control working area purification light

    D: Control the UV light in working area

    E:  Monitor differential gauge so that replacement HEPA filter in time.


    Products Parameter



    Item

    Clean Room Enclosures with constant   temperature and humidity controlled

    Purification   rank

     Class   to class 100.000

    Dimension   L*W*H

    According client request

    Fan   filter unit

    Dimension

    2x2,2x4,4x4  optional

    Structural   material

    Stainless steel, aluminum alloy, AI-Zn   plate

    Power   supply

    220V/50HZ AC

     Air Filter

    Mini-pleats HEPA /ULPA Air filter

    Frame   material

    Aluminum alloy/stainless steel201/304

    Wall   material

    Acrylic /sandwich panel/anti-static   acrylic

    Ceiling

    Aluminium –plastic panel , sandwich panel

    Air   conditioner

    Constant temperature air conditioning

    Or Constant temperature and humidity air   conditioning

    Lighting

    LED light or T5 (Optional )

    Air   conditioner

    Constant temperature and humidity controlled

    Relief   valve

    1 sets

    Air   Outlet shutter

    1sets

    air   shower

    For one or two person

    Pass   box

    Optional

    Air   flow floor

    Raised floor
