We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

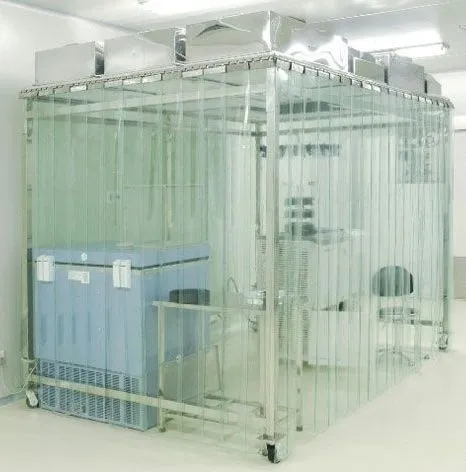

Class100 Capsule Softwall Cleanroom with Antistatic Vinyl Curtain 1
Class100 Capsule Softwall Cleanroom with Antistatic Vinyl Curtain 1

Class100 Capsule Softwall Cleanroom with Antistatic Vinyl Curtain

    oops...!

    no product data.

    Go to homepage

    Product Features



    1:  Standard models are available in US Federal Standard 209E Cleanroom Class 10 to

    Class 10,000 cleanliness configurations and various sizes.

    2:  Standard soft capsule body is an industrial-grade structure constructed of

    Electro-galvanised steel with an abrasion-resistant white oven-baked powder-coated

    finish.

    3: Standard cleanroom ceiling grid .

    4: Standard height is 7' measured from filter face to floor.

    5: Free-standing design requires no suspended ceiling supports and allows for a fast and easy installation.

    6: Optional castor wheels ensure convenient relocation of the structure after installation.

    7: Energy-efficient Airstream Fan Filter Units are easy to install (simply place units on the Soft Capsule's ceiling grid structure) and are available with a wide range of construction configurations.

    8: Streamline Soft Capsule cleanrooms use standard 2'x4' Airstream Fan Filter Units.

    9: Superior mini-pleat HEPA (99.99% typical efficiency) or ULPA (99.999% typical efficiency) filters provide optimum cleanliness and product protection.

    10: Tear-drop style 5000k warm-white fluorescent lighting creates a comfortable working environment.

    Products Parameter





    Item

    Capsule soft wall cleanroom

    Purification   rank

     Class10   to class 100.000

    Dimension   L*W*H

    According client request

    Fan   filter unit

    Dimension

    2x2,2x4,4x4  optional

    Structural   material

    Stainless steel, aluminum alloy, AI-Zn   plate

    Power   supply

    220V/50HZ AC

     Air Filter

    Mini-pleats HEPA /ULPA Air filter

    99.97%@0.3um  -99.995%@0.3um

    Frame   material

    Aluminum alloy/stainless steel201/304

    Wall   material

    Acrylic /sandwich panel/anti-static   acrylic

    Ceiling

    Aluminium –plastic panel , sandwich panel

    Air   conditioner

    Constant temperature air conditioning

    Or Constant temperature and humidity air   conditioning

    Fluorescent   Lighting

    LED light or T5 (Optional )

    Stainless   steel support

     D:   8mm x50mm leg

    Castor   wheel

     Antistatic   PU Material

    air   shower

    Optional

    Pass   box

    Optional

    Air   flow floor

    Optional



     Darw:

    Class100 Capsule Softwall Cleanroom with Antistatic Vinyl Curtain 2

    Illustration :

    1:  Frame   2:   PVC strip curtain    3:Wheel        4:Leg support    5:Fan Filter Unit
