We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

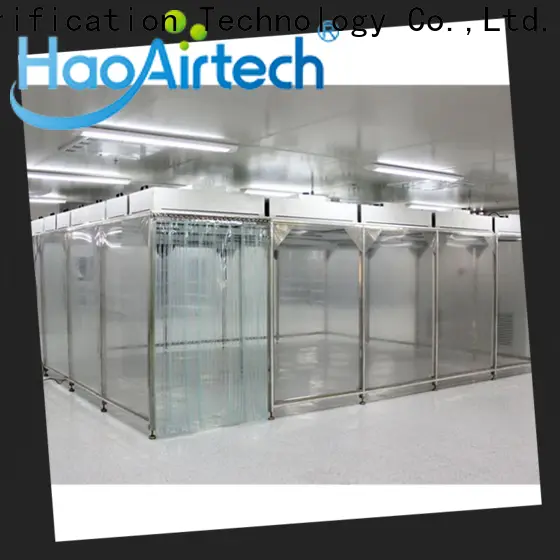

HAOAIRTECH simple modular clean room manufacturers vertical laminar flow booth for semiconductor factory 1
HAOAIRTECH simple modular clean room manufacturers vertical laminar flow booth for semiconductor factory 2
HAOAIRTECH simple modular clean room manufacturers vertical laminar flow booth for semiconductor factory 1
HAOAIRTECH simple modular clean room manufacturers vertical laminar flow booth for semiconductor factory 2

HAOAIRTECH simple modular clean room manufacturers vertical laminar flow booth for semiconductor factory

Brand:
HAOAIRTECH
Model number:
HA-LFB
Material:
Steel with power coated
OEM /ODM:
OEM/ODM
Certificated:
CE
Start port:
GUANGZHOU
Delivery time:
10 working days after we get the deposite
MOQ:
1
Country of Original:
China
Supply ability:
100set/month
Payment term:
100%T/T in advance ,100% LC at sight against with document
Application:
Pharmaceutical cleanroom
Inquiry
Product Name
Pharmaceutical Moudlar Cleanroom
Other Name
Pharmaceutical Cleanroom
Guarantee Time
12 months
Purificaiton Rank
ISO7/ISO8
Dimension
Customized
Power Supplier
220V/50HZ OR 60HZ

Pharmaceutical Modular Cleanroom

      Pharmaceutical  Modular Cleanrooms is the premier source for modular hardwall cleanrooms, clean room construction and installation in the china. With over 10 years of manufacturing experience, we can provide you with custom clean rooms at your location backed by a flawless installation process that gives you the perfect cleanroom environment. We are the leading company to provide you with turn-key cleanroom solutions, which means we manage your room project from start to finish. We will design and manufacture your cleanroom to your exact specifications at our factory, which means there will be absolutely no construction mess at your locale. We then deliver and install your room at the destination of your choice—nationwide.


       Haoairtech  cleanrooms has been building modular clean rooms and environmental enclosures for over 10 years.

We specialize in Class 10 to Class 100,000 (ISO 4 – ISO 8) cleanrooms that are used for some of the following activities: environmental test chambers, pharmaceutical storage rooms, temperature controlled rooms, bio-safety laboratories, pharmaceutical research laboratories, stem cell research laboratories, server control rooms, organic chemistry laboratories, laser rooms, microbiology laboratories, dry rooms and more.

           We offer a complete turnkey solution that begins with building to your exact specifications and seeing your project through until completion. Our non-invasive modular construction process involves the manufacturing

    of your clean room in a factory, resulting in short lead times and a minimal amount of on-site construction contamination. Our modular clean rooms are reusable, reconfigurable and environmentally friendly which

     will minimize your carbon footprint.

Parameter

ModelHA-1500HA-2000HA-3000HA-5000
External Size (W*D*H)1500*2000*2530mm2000*3000*2530mm3000*4000*2530mm5000*5000*2530mm
HEPA Filters99.999% efficiency at 0.3 um
Consumption500W800W1000W1600W
FFU Nos.4 pcs6 pcs12 pcs25 pcs
Clean LevelISO 5 (Class 100), Class A
Control Systemcontrol box
Rectangular Tube MaterialSUS 304 material frame
Wall MaterialAnti-static dustproof curtain
BlowerBuilt-in centrifugal blower; speed adjustable
UV LampEmission of 253.7nanometers, with UV timer
Air Velocity0.1~0.6m/s, average 0.45m/s
Noise≤58db
Power SupplyAC220V±10%, 50/60Hz; 110V±10%, 60Hz
Gross Weight390Kg670Kg1100Kg2900Kg
Package Size (W*D*H)

2110*930*920mm

2260*660*500mm

3080*980*1260mm

3080*660*550mm

3080*980*1260mm

3080*980*1260mm

4080*660*550mm



4080*980*1260mm

4080*980*1260mm

4080*980*1260mm

1260*660*1260mm

5080*460*500mm

Customized design for clean level, size or material is available

HAOAIRTECH simple modular clean room manufacturers vertical laminar flow booth for semiconductor factory 3


Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
