    Product Name
    Capsule Cleanroom
    Other Name
    SoftWall Cleanroom
    Guarantee Time
    12 months
    Purificaiton Rank
    class10-class100
    Dimension
    2000x3000x2590mm
    Power Supplier
    220V/50HZ OR 60HZ

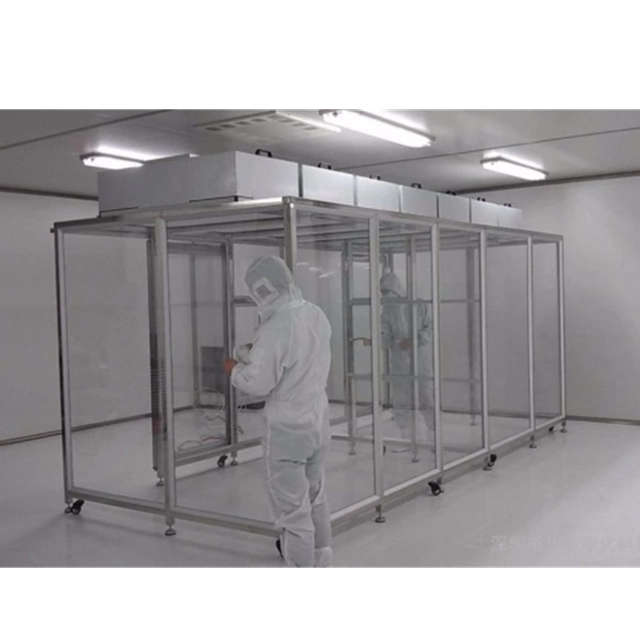

    Capsule SoftWall Cleanroom

    Capsule SoftWall Cleanroom 2


    Product Features:

    1: Standard models are available in US Federal Standard 209E Cleanroom Class 10 to Class 10,000 cleanliness configurations and various sizes.

    2: Standard soft capsule body is an industrial-grade structure constructed of Electro-galvanised steel with an abrasion-resistant white oven-baked powder-coated finish.

    3: Standard cleanroom ceiling grid .

    4: Standard height is 7' measured from filter face to floor.

    5: Free-standing design requires no suspended ceiling supports and allows for a fast and easy installation.

    6: Optional castor wheels ensure convenient relocation of the structure after installation.

    7: Energy-efficient Airstream Fan Filter Units are easy to install (simply place units on the Soft Capsule's ceiling grid structure) and are available with a wide range of construction configurations.

    8: Streamline Soft Capsule cleanrooms use standard 2'x4' Airstream Fan Filter Units.

    9: Superior mini-pleat HEPA (99.99% typical efficiency) or ULPA (99.999% typical efficiency) filters provide optimum cleanliness and product protection.

    10: Tear-drop style 5000k warm-white fluorescent lighting creates a comfortable working environment.


    Products Parameter:

    Item

    Capsule soft wall cleanroom

    Purification Rank

    Class10 to class 100.000

    Dimension L*W*H

    According client request

    Fan Filter Unit

    Dimension

    2x2,2x4,4x4 optional

    Structural Material

    Stainless steel, aluminum alloy, AI-Zn plate

    Power Supply

    220V/50HZ AC

    Air Filter

    Mini-pleats HEPA /ULPA Air filter
    99.97%@0.3um -99.995%@0.3um

    Frame Material

    Aluminum alloy/stainless steel201/304

    Wall Material

    Acrylic /sandwich panel/anti-static acrylic

    Ceiling

    Aluminium –plastic panel , sandwich panel

    Air Conditioner

    Constant temperature air conditioning
    Or Constant temperature and humidity air conditioning

    Fluorescent Lighting

    LED light or T5 (Optional )

    Stainless Steel Support

    D: 8mm x50mm leg

    Castor Wheel

    Antistatic PU Material

    Air Shower

    Optional

    Pass Box

    Optional

    Air Flow Floor

    Optional

    Capsule SoftWall Cleanroom 3
