Product Details
HaoAirtech's pass boxes is perfect in every detail.Well-chosen in material, fine in workmanship, excellent in quality and favorable in price, HaoAirtech's pass boxes is highly competitive in the domestic and foreign markets.
Company Advantages1. The quality and safety of all the materials used for HAOAIRTECH sample booth design are extremely important.
2. The product features the desired electrical safety. During its operation, it is less likely to appear problems like discharge, surge current, and current leakage.
3. It brings a striking color effect. The final color of the bedding will be exactly the same as the sample, and the color of the accessories will be correct.
4. sampling booth that HAOAIRTECH produced ignites a unique inner force in this market.
Product Features
LCD touchable screen display with air speed control
Negative Pressure Laminar Flow
GMP Modular design with minimized joints and seams.
Energy Efficient high air volume fan to minimize operating cost,
5 different filters configuration available utilizing combination of G4,F8.H13,H14
and PLF Screens .
Gel sealant HEPA Air Filter(99.995%@0.3um) for high purification rank
Purification rank: Class100 /ISO5
Air speed: 0.45m/s+_20%
10% Exhaust air leaking (Adjustable)
Introduction

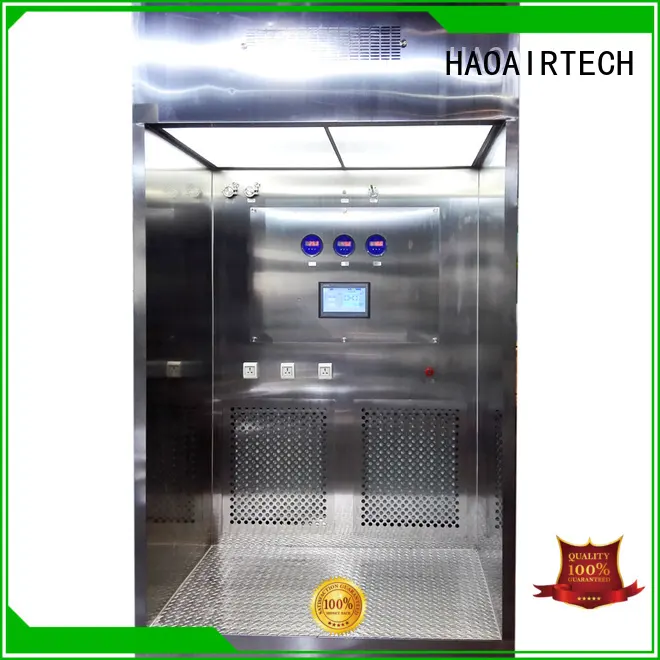

Down Flow Booth provide operator, process and product protection by utilizing HEPA filtered unidirectional laminar air flow booth to maintain an ISO5 environment at rest within the work zone and capture particulates during open handling processes .
/ Products Parameter
MODEL | HA-DB1000 | HA-DB1500 | HA-DB2000 |
External size (mm)
(W*D*H) | 1200x1500x2400mm | 1500x1700x2400mm | 2000x1800x2400mm |
Work zone (mm)
(W*D*H) | 1100x1200x2000mm | 1400x1200x2000mm | 1900x1300x2000mm |
Purification rank | Class 100(ISO5) |
Air speed | 0.45m/s +_20% |
Material(Option) | 1: Entirety Stainless Steel 201/304/316.(T=1.2/1.5mm) 2: External and internal side is steel with power coated. (T=1.2/1.5mm) |
Control system | 1: LCD touchable screen display with air speed adjustable and constant temperature and constant humidity data check. 2: Gel Sealant High Efficiency HEPA air filter for high purification rank 3: Wind speed detection, Constant temperature and constant humidity Detector according to client request install 4: DOP/PAO Port and differential Pressure Guage for HEPA /secondary filter so that remind of you change the air filter in time 5: 5 different filter configuration available utilizing combination of G4,F8.H13,H14 and PLF Screens . 6; GMP Modular design with minimized joints and seams. |
Noise level(dB) | <65dB |
Filter step | 3 Step |
HEPA filter | 99.995% @ 0.3um Gel sealant mini--pleats HEPA Air Filter |
Secondary filter | F8 pocket air filter |
Pre-filter Efficiency | G4 Z-Line panel air filter |
Power supply | 380V/50HZ OR 220V/50HZ |
Packing material | Standard Export Poly wood Packing(Fumigant free material) |
/ Specification
![HAOAIRTECH sampling booth supplier for dust pollution control 11]()
/ Product Details
Application
Down Flow Booth is designed such that through the different configurations it can be applied but not limited to the follow field : food ,electronic, robotic, nutraceutical, animal , cosmetic , biological , and pharmaceutical .
Waterproof and exlosion-proof socket
/ Certificated
![HAOAIRTECH sampling booth supplier for dust pollution control 17]()
/ Our Service
Our Service
1:Document
A: Document for custom clear: 1 sets
B: Assemble draw: 1 pcs
C: Circuit diagram draw: 1 pcs
D: Test report : 1sets
E: Additional IQ/OQ/PQ document is available upon request.
2: Air Shower Spare Part so that you can replacement in future by yourself:
A: HEPA air filter +Pre-filter (as your request)
Note: HEPA air filter should be replacement in half and one year. Pre-filter
should be replacement in each 6 months, but it can refresh no more than 3 times
B: Sensor (As your request)
C: Control board (as your request)
3: The air shower guarantee time is 2 years excluding consumable parts and accessories .
