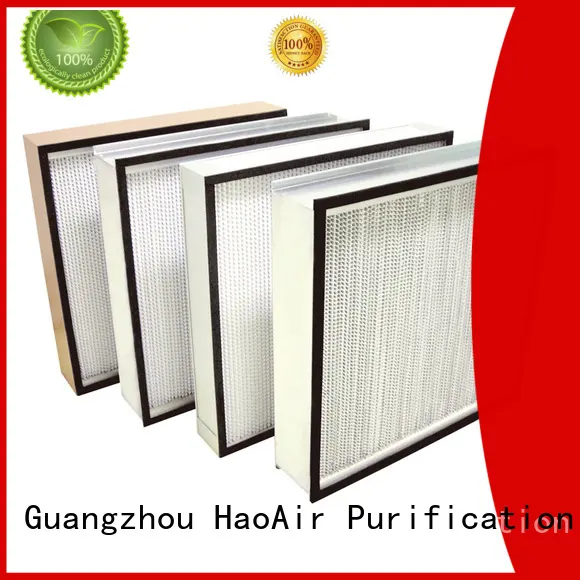

HAOAIRTECH replaceable ulpa filter with one side gasket for dust colletor hospital

Company Advantages
1. HAOAIRTECH ulpa filter is available in an innovative and attractive design.
2. The product has a soft close mechanism. The close hinges are adjustable and can eliminate the sound of slamming doors and drawers.
3. Thanks to the excellent characteristics, the product is popular among customers and is getting more and more uses in the market.

Deep Pleats Heap air filter adopt the special design to keep the space between pleated layers by Clapboard. Corrugated aluminum spacers can accurately maintain the distance between the pleat layers, Maximum use of filter material under minimum resistance.

Media	Super glass fibre
Frame	AL/GL/MDF frame
Gasket	Neoprene /EVA or PU
Media    spacer	Hot melt
Frame thickness    (mm)	120/150/220
Clapboard	0.035mm aluminum foil or 120g/m paper
Efficiency	99.99%-99.999%@0.3um
Max    Temperature	80℃
Max    Humidity	80%

Dimension(mm) (W*H*D)	Rate Air      Flow   (m3/h)	Media    Area (m2)	Dust    Holding (g)	Rate    primary      Resistance(Pa)      (H13-H14)	Finally      Resistance    (Pa)
484X484X120	450	4.4	230	220Pa	400-600pa
610X610X120	700	7.1	370
610X915X120	1050	10.6	560
610X1220X120	1400	14.1	740
484X484X150	600	6	320
610X610X150	1000	9.7	510
610X915X150	1500	14.5	770
610X1220X150	2000	19.3	1020
484X484X220	1000	9.8	600
610X610X220	1600	15.8	920
610X915X220	2300	23.7	1340
610X1220X220	3000	31.6	1750

Company Features
1. Over years of development, Guangzhou HaoAir Purification Technology Co.,Ltd. has been one of the most recognized manufacturers and has been the preferred choice of suppliers.
2. Our knowledgeable project teams are a multi-skilled group, ranging from experienced engineers (some with over 10 years’ experience in the industry) to top designers, giving us the advantages of finishing the orders.
3. HAOAIRTECH brand will take a further step to produce high-end ulpa filter . Get an offer! HaoAir Purification adheres to the development philosophy of respecting life and development trends. Get an offer! Guangzhou HaoAir Purification Technology Co.,Ltd. aims to make the dreams of customers and employee to become true. Get an offer! With the development of China's market economy, HaoAir Purification vigorously implemented the strategy of internationalization and diversification. Get an offer!
