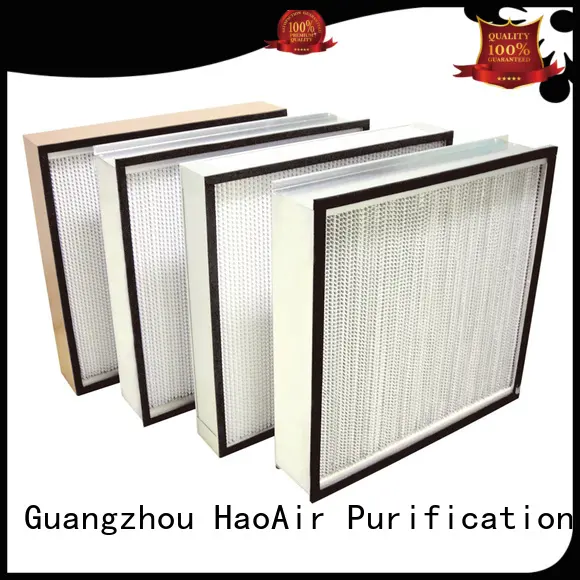

HAOAIRTECH replaceable hepa filter h14 with big air volume for electronic industry

Brand:
HAOAIRTECH
Model number:
HA-HEPA-A Series
Material:
Glassfibre media with AL Foil clapboard
OEM /ODM:
Yes
Certificated:
Rosh
Start port:
Guangzhou
Delivery time:
8 working days after we get the deposit.
MOQ:
10sets
Country of Original:
China
Supply ability:
set/one month
Payment term:
T/T , L/C , Western union
Application:
Worker in Clean room
Inquiry



Characteristics
The carve box folds can prevent the breakage of the filter material.
Neoprene /EVA gasket prevent the air leaking in operation。
Extrude and anodized aluminum, Galvanized and MDF frame in 120mm, 150mm, 220mm for choose。
Adopting the laser to scan the filter one by one (MPPS).
100 % provide the test report for each mini-pleats HEPA air filter
Filtration Efficiency: H13 ,H14,(EN1822). 99.99%-99.999%@0.3um
Max temperature is 80C
Max humidity is 80%
HAOAIRTECH replaceable hepa filter h14 with big air volume for electronic industry 10


Introduce

Deep Pleats Heap air filter adopt the special design to keep the space between pleated layers by Clapboard. Corrugated aluminum spacers can accurately maintain the distance between the pleat layers, Maximum use of filter material under minimum resistance.



/ Operating Conditions


 Media

Super glass fibre

 Frame

AL/GL/MDF frame

Gasket

Neoprene /EVA or PU

Media    spacer

Hot melt

Frame thickness    (mm)

120/150/220

Clapboard

0.035mm aluminum foil or 120g/m paper

Efficiency

99.99%-99.999%@0.3um

Max    Temperature

80℃

Max    Humidity

80%



/ Products Parameter


Dimension(mm)
(W*H*D)

Rate Air
     Flow
  (m3/h)

Media    Area
(m2)

Dust    Holding
(g)

Rate    primary
     Resistance(Pa)
     (H13-H14)

Finally
     Resistance    (Pa)

484X484X120

450

4.4

230

















220Pa

















400-600pa

610X610X120

700

7.1

370

610X915X120

1050

10.6

560

610X1220X120

1400

14.1

740

484X484X150

600

6

320

610X610X150

1000

9.7

510

610X915X150

1500

14.5

770

610X1220X150

2000

19.3

1020

484X484X220

1000

9.8

600

610X610X220

1600

15.8

920

610X915X220

2300

23.7

1340

610X1220X220

3000

31.6

1750



/ Primary Resistance & Face Velocity Diagram


HAOAIRTECH replaceable hepa filter h14 with big air volume for electronic industry 11



/ Product Details



part.1
Deep Pleats HEPA air filter
HAOAIRTECH replaceable hepa filter h14 with big air volume for electronic industry 12

part.2
Deep Pleats Hepa Air Filter With EVA Gasket
HAOAIRTECH replaceable hepa filter h14 with big air volume for electronic industry 13

part.3
Deep Pleats Media Compact
HAOAIRTECH replaceable hepa filter h14 with big air volume for electronic industry 14



/ package


HAOAIRTECH replaceable hepa filter h14 with big air volume for electronic industry 15
HAOAIRTECH replaceable hepa filter h14 with big air volume for electronic industry 16
HAOAIRTECH replaceable hepa filter h14 with big air volume for electronic industry 17
