    U15 ULPA Filters


    U15 ULPA Filters 2

    Material And Performance:

    Frame Material

    Aluminum, galvanized

    Filter medium

    Glass fiber

    Sealant

    Polyurethane adhesive

    Partition

    Hot melt adhesive

    Max. humidity

    80%RH

    Max. temperature

    80°C

    Efficiency U15

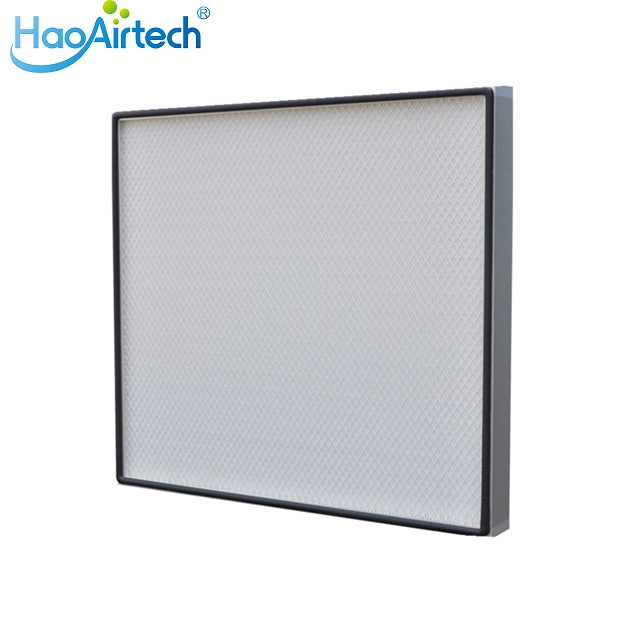

    Product name U15 ULPA  Filter


    Features: U15 ULPA Filter


    Frame: Anodized aluminum frame.

    Media: using special glass fiber filter paper as the filter material, high dust-holding capacity, low initial resistance.

    Efficiency(EN779:2002 filter class)H13,H14,U15

    (ASHRAE:52.2:2007 filter class)MERV18, MERV18, MERV19.

    Each filter is through rigorous testing.

    Recommended final pressure drop:450pa.

    Temperature:80

    Fire rating :DIN 53438 class F1.



    Applications:


                Suitable for electronics, pharmaceutical industry,hospital, and theoccasions required the high cleanliness terminal filtration.



    U15 ULPA Filters 3

    Parameter :

     Dimension

      (mm)

    (W*H*D)



      Rate

    Air Flow

      (m3/h)

    Media Area

       (m2)

    Dust Holding

       (g)

    Rate primary

    Resistance

       (Pa)

     Finally

    Resistance

       (Pa)

    320X320X50

       200

    1.99

    120















    U15 :<1600Pa

    U16 :<180pa















    400-600pa

    484X484X50

       450

    4.51

    270

    610X610X50

       700

    7.13

    430

    915X610X50

       1000

    10.58

    650

    1170X570X50

       1200

    12.57

    750

    1220X610X50

       1350

    14.04

    850

    320X320X69

       250

    2.89

    180

    484X484X69

    600

    6.55

    400

    610X610X69

    1000

    10.37

    620

    915X610X69

    1500

    15.39

    920

    1170X570X69

    1800

    18.28

    1100

    1220X610X69

    2000

    20.41

    1230

    484X484X96

    1000

    10.24

    620
