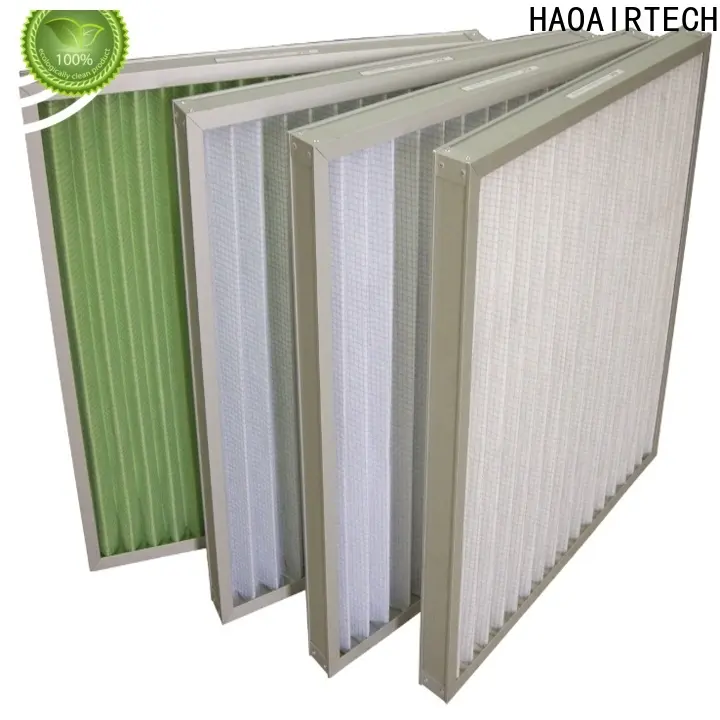

HAOAIRTECH professional Pleated Air Filter with metal frame for central air conditioning and centralized ventilation system

Brand:
HAOAIRTECH
Model number:
HA-PF
Material:
Aluminum frame
OEM /ODM:
OEM
Certificated:
SGS
Start port:
Huang PU,Guangzhou
Delivery time:
7 Working days
MOQ:
10 sets
Country of Original:
China
Supply ability:
1000pcs/ 15days
Payment term:
T/T , LC. Western Union
Application:
Central air-conditioning
Inquiry
Company Advantages
1. The filling materials for HAOAIRTECH merv 8 pleated filter can be natural or synthetic. They wear great and have varying densities depending on future use. The product can increase the rate of finished products
2. The market of this product has been widely expanded through the efforts of HAOAIRTECH. The product is of high purification rank
3. This product is consistent with a high level of protection for the safety and health of persons. It has been tested in terms of sections that can entrap fingers and other body parts, sharp edges and corners, shear and squeeze points, etc. It acts as an indispensable part in a dustfree production line
4. This product is able to withstand years of uses. Its sturdy frame will not easily deform over the years and will not be vulnerable to warping or peeling.
5. The product is resistant to extreme heat and cold. Treated under various temperature variates, it will not prone to crack or deform under high or low temperatures. The product prevents viruses and bacteria from spreading



Characteristics

Low cost

Light weight。

Good versatility。

Compact structure。

Double side with metal screen。

EVA gasket prevent air leakage

HAOAIRTECH professional Pleated Air Filter with metal frame for central air conditioning and centralized ventilation system 11




Introduce:

     Pleats filter is suitable for primary filtration of air conditioning system. and Medium efficiency air filtration.  It is mainly used to filter dust particles above 5 micron. Outer frame materials include cardboard frame, Aluminium frame and galvanized iron frame.

   Filter materials include non-woven fabric, nylon mesh, activated carbon filter material, metal mesh, Protective mesh includes double-sided plastic-sprayed wire mesh and double-sided galvanized wire mesh.



/ Operating Conditions


 Media

Non-Woven fabric and synthetic fiber

 Frame

AL/GL/SUS201/304  frame

Gasket

Neoprene / EVA or PU

Frame size

24/48/96mm

Screen

Metal   screen in one side or both side

Efficiency

G1-G4 ,F5-F8

Max Temperature

 80℃

Max Humidity

100%



/ Products Parameter

Dimension

Rate air flow

Media area

Dust Holding(g)

Initial Resistance

(pa)

Finally Resistance

(pa)

Efficiency

592x592x46

2600

0.97

110

<25

100-200

G1

130

<30

100-200

G2

160

<40

100-200

G3

200

<45

150-200

G4

592x490x46

2200

0.81

98

<25

100-200

G1

110

<30

100-200

G2

130

<40

100-200

G3

160

<45

150-200

G4

592x287x46

1300

0.48

50

<25

100-200

G1

60

<30

100-200

G2

80

<40

100-200

G3

100

<45

150-200

G4

Customer size is available

Application:

mainly used for: central air conditioning and centralized ventilation system pre-filtration, large- scale air compressor pre-filtration, clean return air system, pre-filtration of local high efficiency filter device.



/ Product Details



part.1
Synthic Fibre media with one side metal screen .
HAOAIRTECH professional Pleated Air Filter with metal frame for central air conditioning and centralized ventilation system 12

part.2
 Primary filter media pleats machine
HAOAIRTECH professional Pleated Air Filter with metal frame for central air conditioning and centralized ventilation system 13

part.3
Aluminum frame with plastic angle code have good appearance.
HAOAIRTECH professional Pleated Air Filter with metal frame for central air conditioning and centralized ventilation system 14

part.4
Z-line pleats air filter for client in Netherlands.
HAOAIRTECH professional Pleated Air Filter with metal frame for central air conditioning and centralized ventilation system 15


/ Our Service


HAOAIRTECH professional Pleated Air Filter with metal frame for central air conditioning and centralized ventilation system 16

Our Service

1:  100% scann air leaking test for each Mini-PleatsHEPA air flter, test report accompany all of   HEPA air filter.
2:  2 pcs in one carton .each air filter warp by PE Bag .
3:  Small order is polywood packing so that we can send out by sea in LCL.
4:  If order amount more than 20000USD, We accept the 100% LC at sight against with     document.
5:  Free sample possible for you confirmation of quality .
