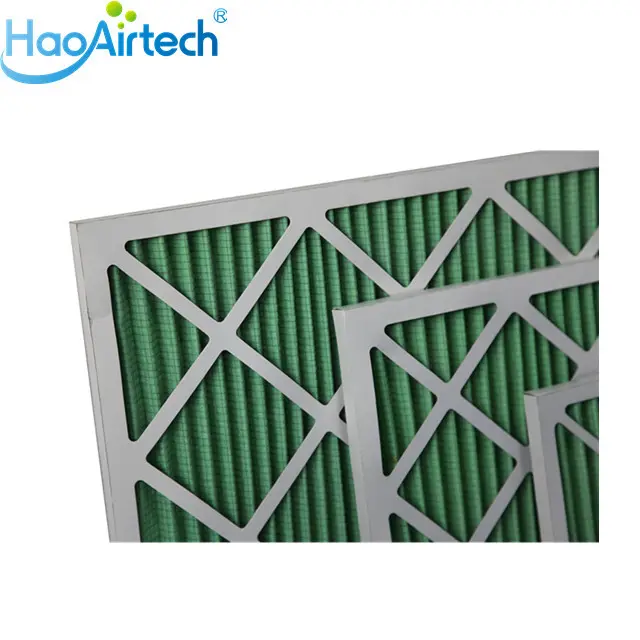

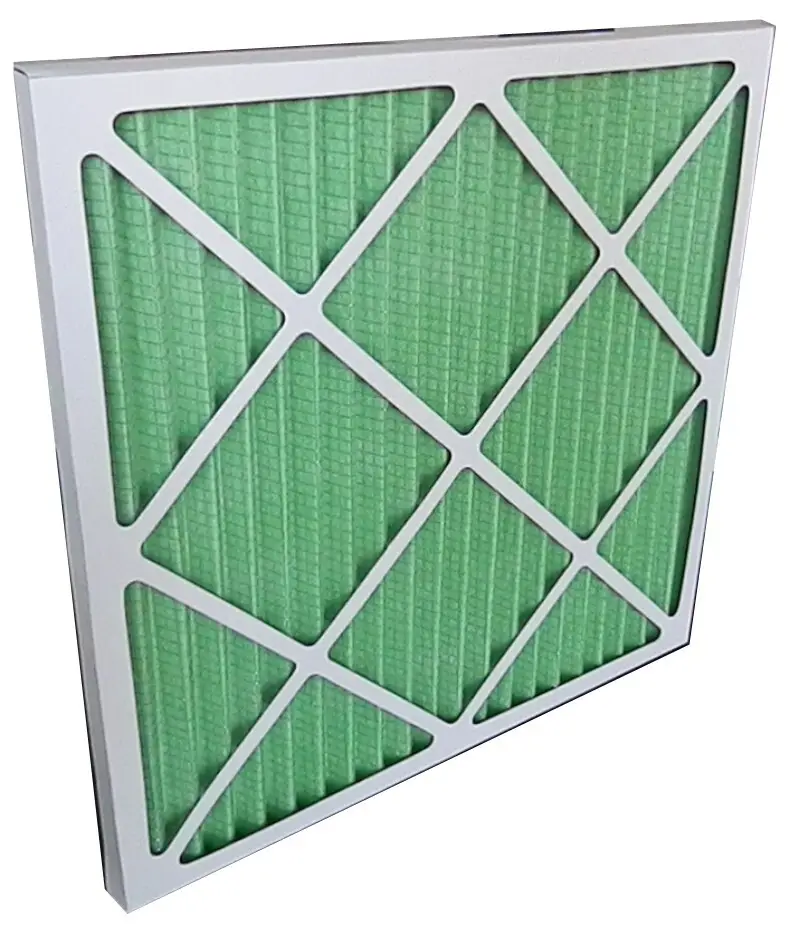

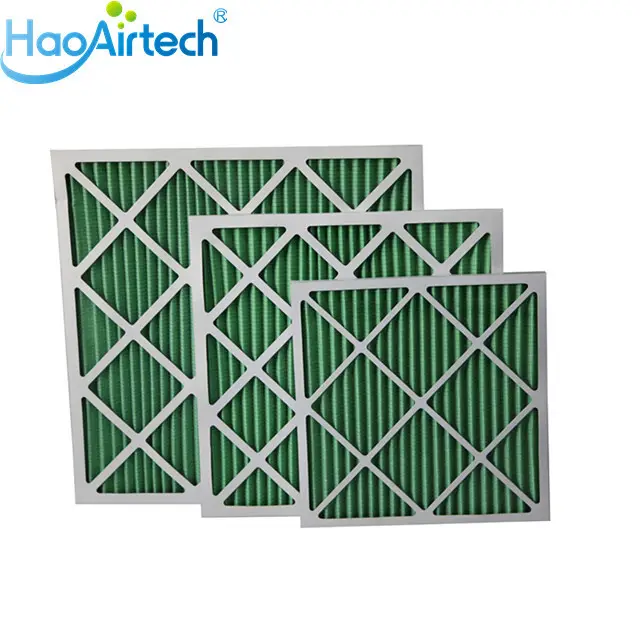

HAOAIRTECH primary pleated filter with metal frame for clean return air system

Brand:
HAOAIRTECH
Model number:
HA-PF
Material:
Synthetic fiber
OEM /ODM:
OEM/OEM
Certificated:
SGS
Start port:
Guangzhou
Delivery time:
10 working days after the deposit
MOQ:
50sets
Country of Original:
China
Supply ability:
5000sets per month
Payment term:
T/T in advance or 100% LC
Application:
HVAC system
Inquiry
Company Advantages
1. HAOAIRTECH merv 8 pleated filter 's design is first a sketch, followed by a technical package or CAD drawing. It is done by our designers, who translate customer ideas into reality. The product will greatly improve the quality of factory-made products
2. Quality is always the highlight point for Guangzhou HaoAir Purification Technology Co.,Ltd.. The product can withstand high temperature
3. The product only has superior quality but also has stable performance that customers can count on. It highly conforms to the dustless workshop management standard
4. Being manufactured based on government and industry safety and quality requirements, the product is 100% qualified. The product assures an extremely high-efficient manufacturing process
5. Our pleated filter can be applied to multiple products. The product ensures the smooth refreshing breath of users.



Characteristics

Low cost

Light weight。

Good versatility。

Compact structure。

Double side with metal screen。

EVA gasket prevent air leakage

Cardboard frame withWaterproof

HAOAIRTECH primary pleated filter with metal frame for clean return air system 11




Introduce:

     Pleatted prefilter  is suitable for primary filtration of air conditioning system. and Medium efficiency air filtration.  It is mainly used to filter dust particles above 5  or 10 micron. Outer frame materials include cardboard frame, Aluminium frame and galvanized iron frame.

   Filter materials include non-woven fabric, nylon mesh, activated carbon filter material, metal mesh, Protective mesh includes double-sided plastic-sprayed wire mesh and double-sided galvanized wire mesh.



/ Operating Conditions


 Media

Non-Woven fabric and synthetic fiber

 Frame

Cardboard frame

Gasket

Neoprene / EVA or PU

Frame size

24/48/96mm

Screen

Metal  screen in one side or both side

Efficiency

G1-G4 ,F5-F8

Max Temperature

 80℃

Max Humidity

100%



/ Products Parameter

Dimension

Rate air flow

Media area

Dust Holding(g)

Initial Resistance

(pa)

Finally Resistance

(pa)

Efficiency

592x592x46

2600

0.97

110

<25

100-200

G1

130

<30

100-200

G2

160

<40

100-200

G3

200

<45

150-200

G4

592x490x46

2200

0.81

98

<25

100-200

G1

110

<30

100-200

G2

130

<40

100-200

G3

160

<45

150-200

G4

592x287x46

1300

0.48

50

<25

100-200

G1

60

<30

100-200

G2

80

<40

100-200

G3

100

<45

150-200

G4

Customer size is available

Application:

mainly used for: central air conditioning and centralized ventilation system pre-filtration, large- scale air compressor pre-filtration, clean return air system, pre-filtration of local high efficiency filter device.



/ Product Details

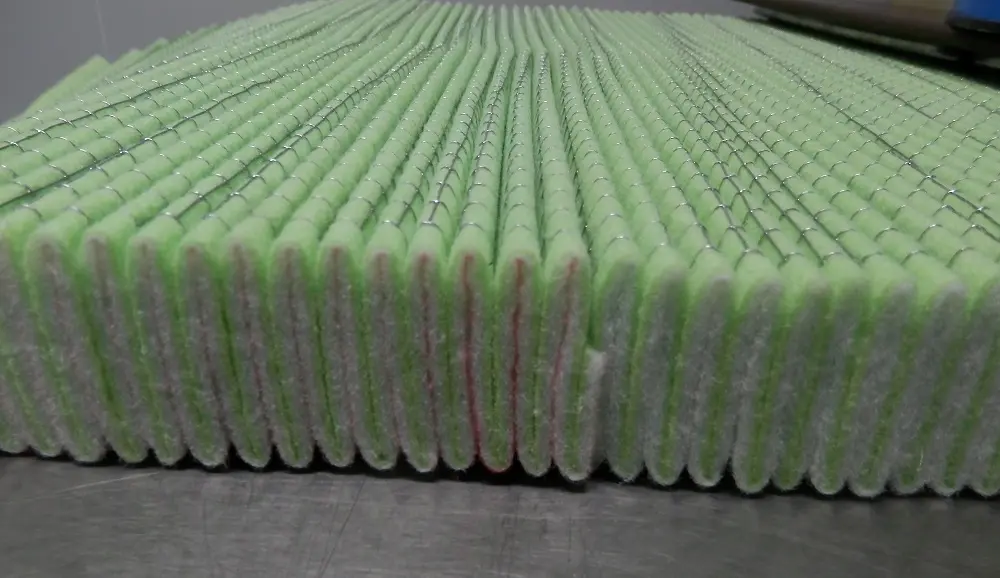

part.1
Synthic Fibre media with one side metal screen .
HAOAIRTECH primary pleated filter with metal frame for clean return air system 12

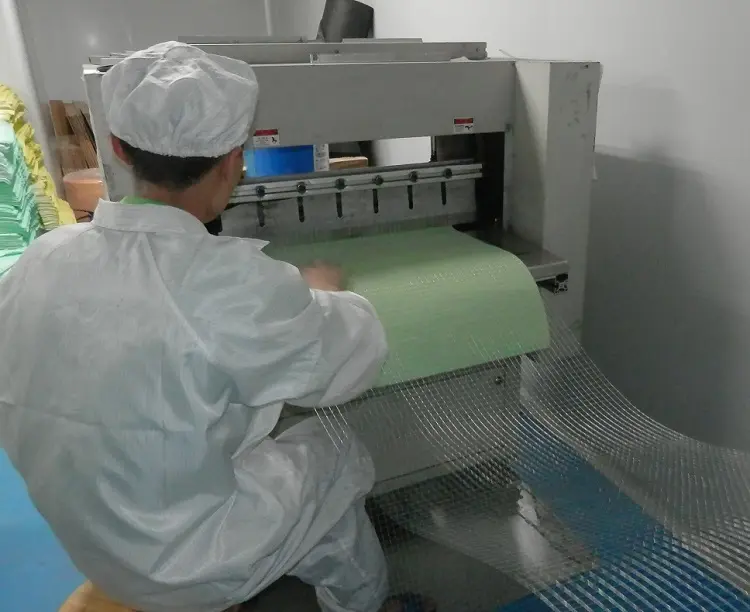

part.2
 Primary filter media pleats machine
HAOAIRTECH primary pleated filter with metal frame for clean return air system 13

part.3
Aluminum frame with plastic angle code have good appearance.
HAOAIRTECH primary pleated filter with metal frame for clean return air system 14

part.4
Z-line pleats air filter for client in Netherlands.
HAOAIRTECH primary pleated filter with metal frame for clean return air system 15


/ Our Service


HAOAIRTECH primary pleated filter with metal frame for clean return air system 16

Our Service

1:  100% scann air leaking test for each Mini-PleatsHEPA air flter, test report accompany all of  HEPA air filter.
2:  2 pcs in one carton .each air filter warp by PE Bag .
3:  Small order is polywood packing so that we can send out by sea in LCL.
4:  If order amount more than 20000USD, We accept the 100% LC at sight against with  document.
5:  Free sample in small size possible for you confirmation of quality .



/ package


HAOAIRTECH primary pleated filter with metal frame for clean return air system 17
HAOAIRTECH primary pleated filter with metal frame for clean return air system 18
HAOAIRTECH primary pleated filter with metal frame for clean return air system 19
