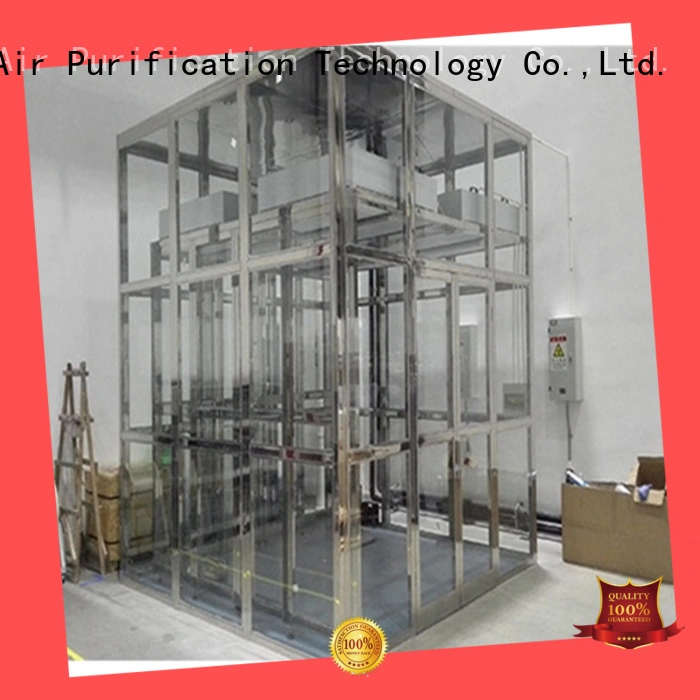

HAOAIRTECH portable softwall cleanroom with ffu for semiconductor factory

Company Advantages
1. With a professional team and advanced equipment, HAOAIRTECH softwall cleanroom is manufactured with high craftsmanship. The product is reputed for its long service life
2. By means of perfect system and advanced management, Guangzhou HaoAir Purification Technology Co.,Ltd. will ensure all production completed on schedule. The product can increase the rate of finished products
3. This product is sturdy enough. The fine welding technique ensures its firm and strong structure which will not crack under high temperature. The product prevents viruses and bacteria from spreading
4. The product has the advantages of great toughness. It can be twisted, bent or stretched under high stress before rupture. The product can maintain high air quality of the factory
5. The product helps reduce electronic waste (e-waste) globally. Most of its components and parts are recyclable and reusable for many times.

Modular Cleanroom For Pharmaceutical Industry

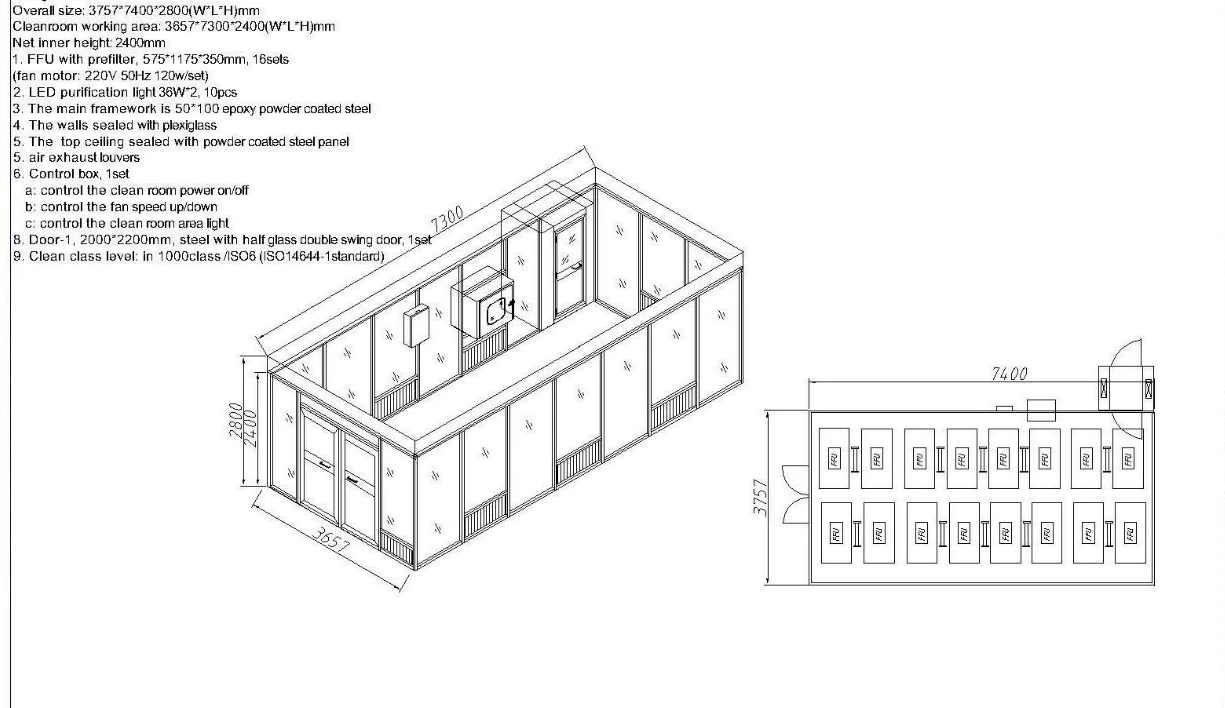

The Modular Cleanroom System is a fully operative cleanroom as a room-in-a-room system with a vertical unidirectional or turbulent airflow.

The system can be manufactured as open- or closed-loop construction.

Three different versions are available allowing flexibility for changing customer requirements:

ceiling-suspended, standing-firm with walls or mobile. The system itself can be equipped with the following options:

• Illumination

• AC or DC motor fans

• AMC filters

• Heat exchangers

The modular cleanroom system can achieve cleanroom classes 3-to-8 according to DIN EN ISO 14644-1.

Parameter

Model	HA-1500	HA-2000	HA-3000	HA-5000
External Size (W*D*H)	1500*2000*2530mm	2000*3000*2530mm	3000*4000*2530mm	5000*5000*2530mm
HEPA Filters	99.999% efficiency at 0.3 um
Consumption	500W	800W	1000W	1600W
FFU Nos.	4 pcs	6 pcs	12 pcs	25 pcs
Clean Level	ISO 5 (Class 100), Class A
Control System	control box
Rectangular Tube Material	SUS 304 material frame
Wall Material	Anti-static dustproof curtain
Blower	Built-in centrifugal blower; speed adjustable
UV Lamp	Emission of 253.7nanometers, with UV timer
Air Velocity	0.1~0.6m/s, average 0.45m/s
Noise	≤58db
Power Supply	AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Gross Weight	390Kg	670Kg	1100Kg	2900Kg
Package Size (W*D*H)	2110*930*920mm 2260*660*500mm	3080*980*1260mm 3080*660*550mm	3080*980*1260mm 3080*980*1260mm 4080*660*550mm	4080*980*1260mm 4080*980*1260mm 4080*980*1260mm 1260*660*1260mm 5080*460*500mm
Customized design for clean level, size or material is available

Company Features
1. As a top producer for softwall cleanroom , Guangzhou HaoAir Purification Technology Co.,Ltd. is high active in this field. In this factory, we carry out high-quality mass production with a wide range of manufacturing equipment and a highly qualified team of engineers.
2. We have expanded our business scope covering most of North America, South America, the Middle East, Europe, Southeast Asia, and other markets based on our superb manufacturing technology.
3. The factory, with advanced production machines and testing instruments, has increased the overall technical level to ensure stable monthly output and product quality. We can efficiently and responsibly manage our operations in terms of the environment, people and the economy. We will quarterly monitor our progress make sure that we are meeting the requirement of these aspects.
