HAOAIRTECH plc controlled powder dispensing booth gmp modular design for dust pollution control

Company Advantages
1. HAOAIRTECH laminar flow booth is innovatively designed by our experienced designers.
2. powder dispensing booth has the peculiarities of laminar flow booth , which is used in system booth.
3. In a flock of laminar flow booth , powder dispensing booth has many merits of [拓展关键词 and so on.
4. Thanks to its good characteristics, the product has found a wide application in the global market.
5. Due to its significant advantages in the market, this product has great market prospects.

Introduction:

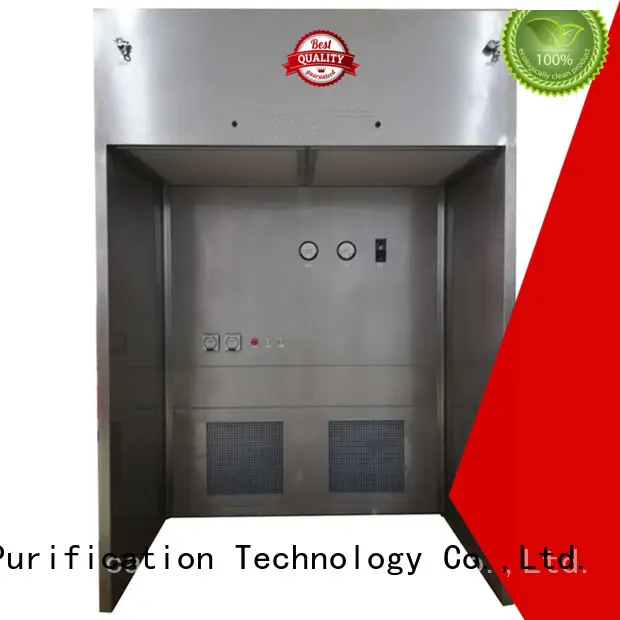

The dispensing booth is a local purification device for pharmaceutical, microbiological research and scientific experiments.
It provides a vertical unidirectional airflow. Part of the clean air circulates in the working area and is partially discharged to the nearby area to make the working area negative pressure to prevent cross-contamination and to ensure a high cleanliness environment in the work area.
Dust, reagent weighing and dispensing in the dispensing booth can control dust, reagent spillage and uplift, prevent dust and reagents from inhaling harm to the human body, avoid cross-contamination of dust and reagents, and protect the environment and indoor personnel.
The weighing operating area is protected by a thousand vertical laminar flow ISO 6 (NF, EN, ISO 14644-1).


Features:

1.the special air dust design with a high performance at decrease the noise.
2.the air out let operate system can control the powder and reagent over flowing or raise. prevent the powder and reagent cross infection.protect the worker out of harmful.
3.pressure guage will monitor the HEPA air filter situation.
4.humanization design for your easy to change the HEPA air filter.

Product Details:

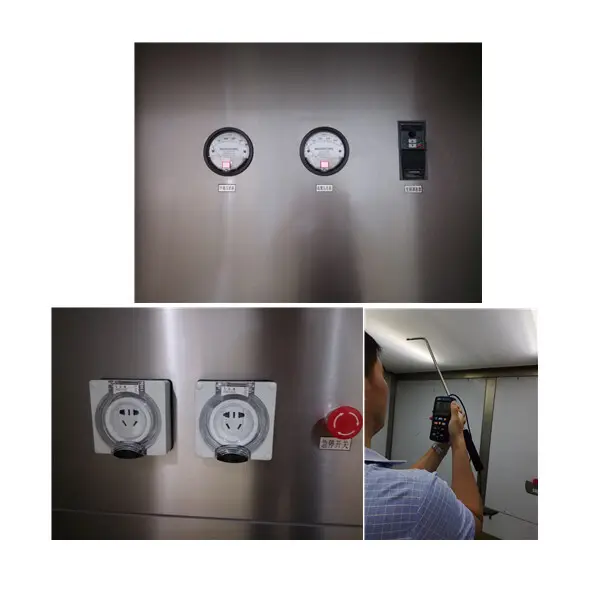

1.The order from left to right is the differential pressure gauge of the medium efficiency filter, the differential pressure gauge of the high efficiency filter and the frequency converter.
  An initial filter differential pressure gauge and LED display can also be installed.
2.This is the socket and emergency stop switch.
3.The wind speed in the dispensing booth is constant, which is 0.63m/s.



Product parameters:

MODEL	HA-DB1000	HA-DB1500	HA-DB2000
External size (mm) (W*D*H)	1200x1500x2400mm	1500x1700x2400mm	2000x1800x2400mm
Work zone (mm) (W*D*H)	1100x1200x2000mm	1400x1200x2000mm	1900x1300x2000mm
Purification rank	Class 100(ISO5)
Air speed	0.2-0.7m/s
Material (Option)	1: Entirety Stainless Steel 201/304/316.(T=1.2/1.5mm) 2: External and internal side is steel with power coated. (T=1.2/1.5mm)
Control system	1: Air Speed according to frequency converter control . 2: Gel Sealant High Efficiency HEPA air filter for high purification rank 3: Wind speed detection, Constant temperature and constant humidity Detector according to client request install 4: DOP/PAO Port and differential Pressure Guage for HEPA /secondary filter so that remind of you change the air filter in time 5: 5 different filter configuration available utilizing combination of G4,F8.H13,H14 and PLF Screens . 6; GMP Modular design with minimized joints and seams. 7: PVC strip curtains available 8; Energy Efficient high air volume fan to minimize operating cost,
Noise level(dB)	<65dB
Filter step	3 Step
HEPA filter	99.995% @ 0.3um Gel sealant mini--pleats HEPA Air Filter
Secondary filter	F8 pocket air filter
Pre-filter Efficiency	75%@5um
Power supply	380V/50HZ OR 220V/50HZ
Packing material	Standard Export Poly wood Packing(Fumigant free material)

Customer's design is available.
