HAOAIRTECH pass box with conveyor line for cargo

Company Advantages
1. HAOAIRTECH pass box is produced by our company with a strong technical force.
2. As used for dynamic pass box working principle process, it can passbox in pharma.
3. With the help of dynamic pass box working principle , you will find pass box easier to operate.
4. Customers say one of the reasons they like it so much is when they strike it lightly, it will ring with a clear bell-like sound which makes them delightful.

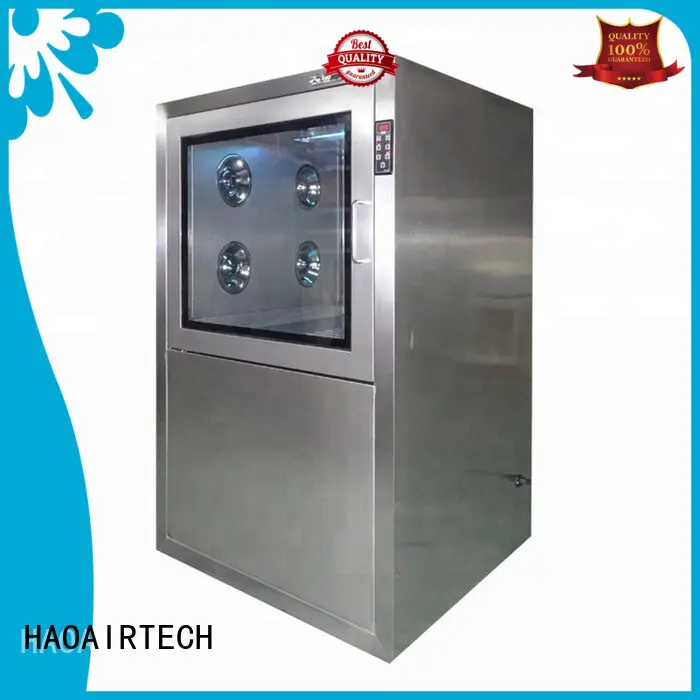

SUS304/SUS316 Cleanroom Air Shower Pass Box For Cargo

Air Shower Pass Box Introduction:

Pass boxes are the perfect tool for transporting items in and out of cleanrooms. These boxes are widely used in laboratories, hospitals, pharmaceutical and light-industrial environments. They not only offer full protection but also facilitate transportation of products.

Air Shower Pass Box Main Features：

1.Built-in air shower significantly reduces surface contamination on materials entering or exiting the controlled environment.

  Materials entering or exiting the controlled environment are “scrubbed” by high velocity ULPA filtered air jets with velocities of 25 m/s (4921 fpm).

  Contaminated air is then drawn through the base within the unit, filtered and recirculated.

2.An array of stainless steel nozzles direct high-velocity jets within the chamber.

3. Air shower duration is adjustable. Standard factory pre-set is 12 seconds in both directions.

Air Shower Pass Box Construction：

1.Robust construction qualifies the air shower pass box for the most demanding controlled environment applications.

  The unit is fully assembled and ready to install and operate when shipped.

  All components are designed for maximum chemical resistance and enhanced durability for a long service life.

2.Electrical interlock maintains cleanroom integrity by preventing both doors from being opened at the same time.

3.The air shower is constructed of electrogalvanized steel sheets with an abrasion resistant oven-baked powder coated finish.

4.The pass box base surface is constructed of perforated stainless steel, making the work zone easy to clean.

5.Acrylic doors provide a clear view of the internal chamber.

The Air Shower Pass Box is approval by CE and RoHS certificate.

Customer’s design is available.

Air Shower Pass Box Specification:

Air Shower Pass Box HA-ASPB Series
Model	HA-ASPB500	HA-ASPB600		HA-ASPB750			HA-ASPB800
Outer Size(mm) (WXDXH)	840x500x1350	940x600x1450		1090x750x1500			1140x800x1560
Inner Size (mm)(WXDXH)	500x500x500	600x600x600		750x750x750			800x800x800
Construction	1. Entirety is SUS304/201/316,Coldrolled Steel with Baked Painting. 2. External is steel with power coated, internal is SUS304. 3. External is steel with power coated, internal is SUS201. 4. External is steel with power coated, internal is SUS316.
SUS Nozzle	4 pcs				6 pcs
HEPA Filter Size	360x360x69		484x484x69		630x630x69		680x680x69
Pre-filter Size	425x275x17		525x275x17		560x275x17		560x275x17
Door	Mechanical or electric interlocking.
HEPA Filter Efficiency	99.99%@0.3um
Air Flow	1200m³/h
Noise	<65dB
UV Light	1pc
Power	380V/50Hz or 60Hz

Air Shower Pass Box Application:

Pass box with production line:
