HAOAIRTECH pass box clean room with conveyor line for hospital

Company Advantages
1. HAOAIRTECH dynamic pass box working principle reflects the finest craftsmanship in the industry. The product can increase the rate of finished products
2. The product is designed to fit perfectly in the space that customers have. The adoption of this product to the room will make the room look decent. A sample of the product can be offered for the confirmation of quality
3. This product is safe in use. All of its parameters, such as input voltage, current, variable resistance, and power are all designed reasonably to achieve compatibility. The product dedicates to keeping a cleanliness class of 10000-300000

SS304/ Coldrolled Steel with Baked Painting Cleanroom Pass Boxes

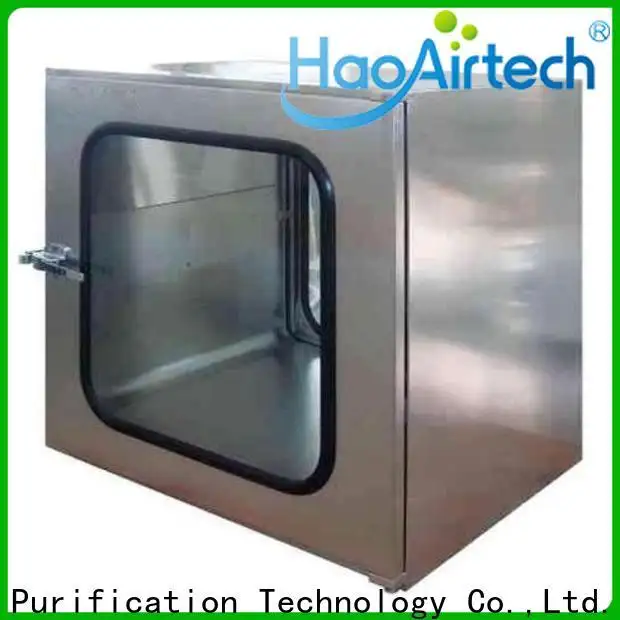

Cleanroom Pass Boxes Introduction:

Pass boxes are the perfect tool for transporting items in and out of cleanrooms. These boxes are widely used in laboratories, hospitals, pharmaceutical and light-industrial environments. They not only offer full protection but also facilitate transportation of products.

Cleanroom Pass Boxes Features:

1.Mechanical interlock is reliable, maintenance-free, fail safe and maintains cleanroom integrity by preventing both doors from being opened at the same time.

2.All HaoAir products are manufactured for the most demanding controlled environment applications.

3.All components are designed for maximum chemical resistance and enhanced durability for a long service life.

4.The main body of the pass box is constructed of industrial-grade electrogalvanized steel.

5.The pass box base surface is constructed of stainless steel, making the work zone easy to clean.

6.Acrylic doors provide a clear view of the internal chamber.

7.Standard 1 year warranty.

The Pass Box is approval by CE and RoHS certificate.

Customer’s design is available.

Cleanroom Pass Box Specification:

Cleanroom Pass Box HA-PB Series
Model	HA-PB500	HA-PB600	HA-PB750
Outer Size(mm) (WXDXH)	660x500x590	760x600x690	910x750x840
Inner Size(mm)(WXDXH)	500x500x500	600x600x600	750x750x750
Construction	1. Entirety is SUS304/201/316,Coldrolled Steel with Baked Painting. 2. External is steel with power coated, internal is SUS304. 3. External is steel with power coated, internal is SUS201. 4. External is steel with power coated, internal is SUS316.
Thickness	1.0/1.2/1.5mm
Toughened Glass Window	Double layer vacuum glass.
Four Corner	Four side is inner arc without any blind angle.
Interlock	Mechanical or electric interlocking.
Gasket	PU foam gasket
Accessories	1. Interphone 2. UV light 3. Roller
Power	220V/50Hz or 60Hz

Clean room Pass Boxes Application:

Cleanroom pass box details:

Company Features
1. Guangzhou HaoAir Purification Technology Co.,Ltd. currently has a research and development center and a large-scale production base.
2. With an increased foreign market share, we can see the customer number is increasing year by year. In recent years, the gross sales volume of our company has gone up.
3. We think highly of service-orientation. We attach importance to long-term business cooperations with clients and we'll spare no efforts to offer them professional guidance and advice.
