We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

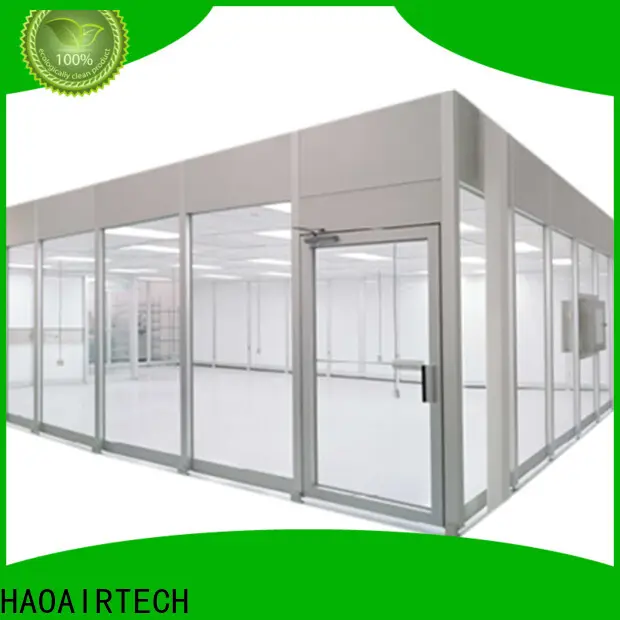

HAOAIRTECH non standard portable clean room vertical laminar flow booth for semiconductor factory 1
HAOAIRTECH non standard portable clean room vertical laminar flow booth for semiconductor factory 2
HAOAIRTECH non standard portable clean room vertical laminar flow booth for semiconductor factory 1
HAOAIRTECH non standard portable clean room vertical laminar flow booth for semiconductor factory 2

HAOAIRTECH non standard portable clean room vertical laminar flow booth for semiconductor factory

Brand:
HAOAIRTECH
Model number:
HA-LFB
Material:
Steel with power coated
OEM /ODM:
OEM/ODM
Certificated:
CE
Start port:
GUANGZHOU
Delivery time:
10 working days after we get the deposite
MOQ:
1sets
Country of Original:
China
Supply ability:
100set/month
Payment term:
100%T/T in advance ,100% LC at sight against with document
Application:
Semiconductor cleanroom
Inquiry
Product Name
Clean Room Enclosures
Other Name
Portable Clean Room
Guarantee Time
12 months
Purificaiton Rank
ISO7/ISO8
Dimension
2'*3'
Power Supplier
220V/50HZ OR 60HZ

1: Air conditioner

2: Air duct

3: Fan filter unit

4: Top Blind plate

5: Stainless steel frame

6: Acrylic wall

7: SS hinged door

8: Control box

9: Air shower

10Raised floor

11: pressure damper


Product Features:

Purification Rank : Class100-10000

Low cost , high speed and easy upgrading

The structure is solid, stand independently and freely

The cleanroom can be quickly installed in the existing ordinary environment and improve the working environment.
Fan filter unit with mini-pleats HEPA filter/ULPA filter

Material : stainless steel 304 or steel with milk color powder coated perssure Relief valve one set.

Control Box:

A: Control the power on/off

B: Control the fan filter unit air speed UP/Down

C: Control working area purification light

D: Control the UV light in working area

E: Monitor differential gauge so that replacement HEPA filter in time.



Products Parameter:

Item

Clean Room Enclosures with constant temperature and humidity controlled

Purification Rank

Class to class 100.000

Dimension L*W*H

According client request

Fan Filter Unit

Dimension

2x2,2x4,4x4 optional

Structural Material

Stainless steel, aluminum alloy, AI-Zn plate

Power Supply

220V/50HZ AC

Air Filter

Mini-pleats HEPA /ULPA Air filter

Frame Material

Aluminum alloy/stainless steel201/304

Wall Material

Acrylic /sandwich panel/anti-static acrylic

Ceiling

Aluminium –plastic panel , sandwich panel

Air Conditioner

Constant temperature air conditioning
Or Constant temperature and humidity air conditioning

Lighting

LED light or T5 (Optional )

Air Conditioner

Constant temperature and humidity controlled

Relief Valve

1 sets

Air Outlet Shutter

1sets

Air Shower

For one or two person

Pass Box

Optional

Air Flow Floor

Raised floor


Draw:



Detail:

Hardwall Clean Booth Frame Material Have Two Choose:

A: Stainless steel 304 : it can resist corrosion and have strong support

B: aluminum alloy : easy assembly , standard accessories .


Ceiling:

Aluminium-plastic material is light at weight, easy to install,Sandwich board ceiling in ivory white color have excellent thermal insulation property,More high requirement for large are temperature and humidity so it is best choice for cleanroom


Fan Filter Unit:

Adopted excellent energy –saving Centrifugal fan with lower noise and less energy consumption.


Wall:

The anti-static acrylic sheet can may lead the surface static electricity to the underground to keep the surface from absorbing dust or fiber.


Control System:

We can adopted the PLC control system for control the fan filter unit .this can catch the wind speed, differential pressure, temperature and humidity of laminar flow booth


Application:

Bio-pharmaceuticals , medical ,food photo-electricity, semiconductor E-Cigarette , LCM, CMOS Camera Module , Touch play , Optical module ,Film ,Biological Pharmacy, Packing Food .
