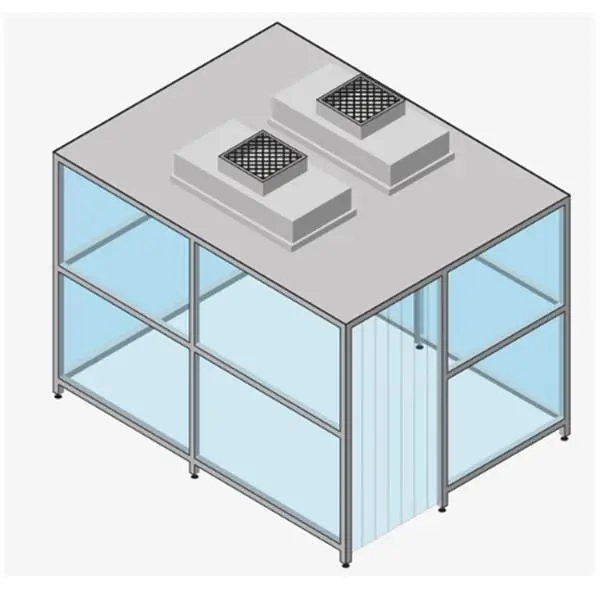

Laboratory Softwall Clean Room 1
Laboratory Softwall Clean Room 1

Laboratory Softwall Clean Room

    oops...!

    no product data.

    Go to homepage
    Product Name
    Softwall cleanroom
    Other Name
    modular cleanroom

    Laboratory Softwall Clean Room 2


    Introduction


    There are many types of materials for softwall clean room. Need to be customized according to specific requirements. This softwall clean room is made of plexiglass wall and aluminum profile frame.



    As follow are the characteristics of plexiglass.



    1. Beautiful appearance: mirror effect, exquisite workmanship, no wrinkles, no seams;
    2. Good light transmittance: the light transmittance can reach 96%, the light transmittance is excellent, and the light is soft;
    3. Strong impact resistance: 200 times more than ordinary glass products, with almost no danger of breaking;
    4. Durability: The product has very good protection for the built-in light source and prolongs the service life of the light source product;
    5. Weather resistance: it can keep the color for a long time, and the service life of good quality plate can be as long as 6-13 years
    6. Fire resistance: no self-ignition and self-extinguishing;
    7. Energy saving: very good light transmission, relatively reducing light sources, saving power and reducing the cost of use;



    As follow are the characteristics of aluminum profiles



    1. Aluminum profiles are less dense and lighter than other commonly used metals
    2. Strong corrosion resistance.
    3. Compared with other metal materials, aluminum molds have strong plasticity, good productivity, and have very good advantages for production.
    4. The surface treatment performance is good and the appearance is bright.
    5, stable chemical properties, non-magnetic, can be recycled and reused, is a benign and recyclable metal material.
    6, small coefficient of elasticity, collision friction can not afford sparks
    7, has good thermal conductivity and electrical conductivity



    Parameter

    Customer's design is available!


    MODELHA-LFB5000
    Ex size (mm)(W*D*H)5000X3000X2596
    internal size4900x2900x2205
    Purification rankClass100
    HEPA filterEfficiency : 99.99% @ 0.3um
    Pre-filterEfficiency : 85% @ 5um
    Control systemPC control system / promised speed by control box
    Pressure GaugeAmerican Dywer pressure
    Noise<50-55 dB (test point distance is 1m)
    Air velocity(m3/h)0.2-0.5m/s Adjustable (test point distance is 30cm)
    Frame materialstainless steel/steel with power coated/Cast aluminum profile
    Wall frameTempered glass / PVC anti-static curtain (option)
    FanEBM Fan /Taiwan fan/ Domestic fan (option)
    Power supplerAC110/220v 50HZ/60HZ






    Softwall CLean Room Optional Configuration:



    1. Pass Box

    2. Air Shower

    3. ULPA Fliter

    4. Sticky mats

    5. Barometer

    6. Gowning Area

    7. Pressure Different control device

    8. Transparent / grid PVC Curtain

    9. Thermo-static and humid-static air conditioning system

     Laboratory Softwall Clean Room 3
