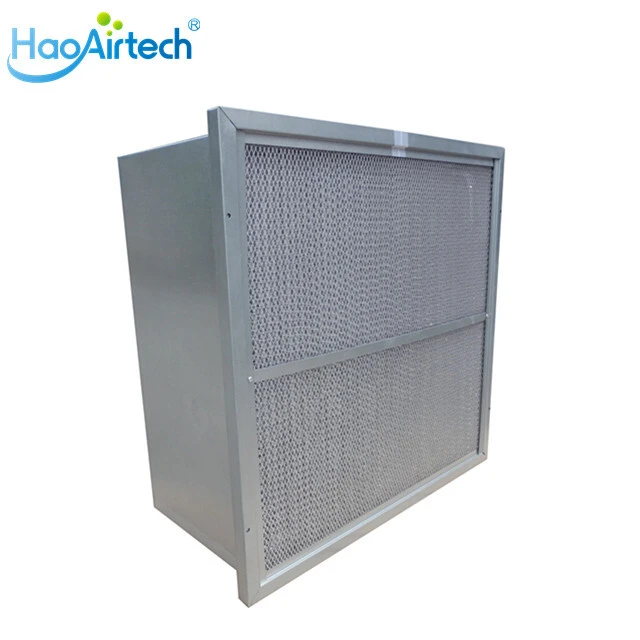

HAOAIRTECH knife edge hepa air filter with big air volume for air cleaner

Company Advantages
1. Thanks to our cutting-edge technology, HAOAIRTECH hepa filter for cleanroom is produced in high efficiency.
2. The product is safe to use. The materials used in the product are inspected to exclude any harmful substances. It is known as lead and mercury-free.
3. Quality of hepa air filter will be in the most important place during transportation.

Rigid Cell Filters

Intorduce :

     MERV 11 rigid cell air filters provide between 80% and 85% efficiency for filtering particles between

3 and 10 microns in size (such as mold spores, dusting aids, and cement dust).

 They also provide between 50% and 65% efficiency for filtering particles between 1 and 3 microns in size

(such as legionella, lead dust, humidifier dust, coal dust, and nebulizer droplets) and less than 20% efficiency

for filtering particles between 0.30 and 1 micron in size (such as bacteria, most smoke, sneeze nuclei,

insecticide dust, copier toner, and face powder). They capture contaminants more efficiently than MERV 10 rigid cell air filters.

Products Parameter：

Dimension   (mm) (W*H*D)	Pack NO	Rate Air Flow  (m3/h)	Media Area (m2)	Dust Holding    (g)	Efficiency	Rate primary Resistance    (Pa)	Finally Resistance    (Pa)
592X287X292	4	2100	11.02	660	F7 65%@0.5um	<80Pa	300-350pa
592X490X292	4	3550	18.6	1200
592X592X292	4	4500	22.1	1350
610X610X292	5	5400	29	1750
592X287X292	4	2100	11.02	660	F8 85%@0.5um	<100pa	350-400pa
592X490X292	4	3550	18.6	1200
592X592X292	4	4500	22.1	1350
610X610X292	4	5400	29	1750
592X287X292	4	2100	11.02	660	F9 90%@0.5um	<120pa	400-450pa
592X490X292	4	3550	18.6	1200
592X592X292	4	4500	22.1	1350
610X610X292	5	5400	29	1750



Application:

1: Optical electronics, biological pharmaceuticals, medical laboratories, food and

    beverages, daily chemical semiconductors, precision instruments and other industries

   Pre filtration of central ventilation and air conditioning systems in ordinary industrial plants or cleanrooms.

 2: Ventilation and air conditioning systems for large civil buildings, such as office buildings,

 3: Conference rooms, hospitals, shopping malls, gymnasiums, airports, etc.

Company Features
1. As a large manufacturer of hepa air filter , Guangzhou HaoAir Purification Technology Co.,Ltd. is a global leader.
2. Guangzhou HaoAir Purification Technology Co.,Ltd.'s advanced equipment, complete product lines and skilled QC technicians provide assurance that products are of the highest quality.
3. The objective of HAOAIRTECH brand would be to take the lead in the area of h13 hepa filter . Inquire online! Guangzhou HaoAir Purification Technology Co.,Ltd. has been making its effort to accomplish the goal of being a national company. Inquire online! We keeps improving quality of air purifiers hepa filter to seek better development. Inquire online!
