We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

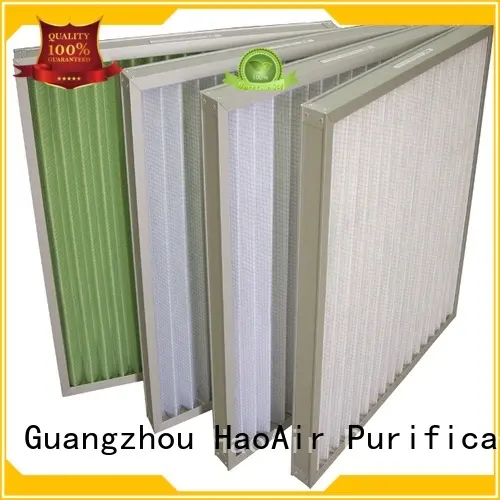

HAOAIRTECH high end merv 7 pleated air filters supplier for clean return air system 1

HAOAIRTECH high end merv 7 pleated air filters supplier for clean return air system 2

HAOAIRTECH high end merv 7 pleated air filters supplier for clean return air system 3

HAOAIRTECH high end merv 7 pleated air filters supplier for clean return air system 4

HAOAIRTECH high end merv 7 pleated air filters supplier for clean return air system 5

HAOAIRTECH high end merv 7 pleated air filters supplier for clean return air system 6

HAOAIRTECH high end merv 7 pleated air filters supplier for clean return air system 7

HAOAIRTECH high end merv 7 pleated air filters supplier for clean return air system 8

HAOAIRTECH high end merv 7 pleated air filters supplier for clean return air system 9

HAOAIRTECH high end merv 7 pleated air filters supplier for clean return air system 10

HAOAIRTECH high end merv 7 pleated air filters supplier for clean return air system

Brand:

HAOAIRTECH

Model number:

HA-PF

Material:

Aluminum frame

OEM /ODM:

OEM

Certificated:

SGS

Start port:

Huang PU,Guangzhou

Delivery time:

7 Working days

MOQ:

10 sets

Country of Original:

China

Supply ability:

1000pcs/ 15days

Payment term:

T/T , LC. Western Union

Application:

Central air-conditioning

Inquiry

Company Advantages
1. The raw materials of HAOAIRTECH merv 7 pleated air filters have to undergo quality checks before they enter the production floor. The product focuses on the good physical conditions of the workers in the workshop
2. Whether the motivations are economic, environmental, or personal, the benefits of this product will have something to offer for everyone. The product is widely used for high-end clean rooms of various manufacturers
3. After strict inspection and tests, the product is qualified with high performance and high quality. The product is reputed for its long service life

Characteristics

Low cost

Light weight。

Good versatility。

Compact structure。

Double side with metal screen。

EVA gasket prevent air leakage

HAOAIRTECH high end merv 7 pleated air filters supplier for clean return air system 11

Introduce:

Pleats filter is suitable for primary filtration of air conditioning system. and Medium efficiency air filtration. It is mainly used to filter dust particles above 5 micron. Outer frame materials include cardboard frame, Aluminium frame and galvanized iron frame.

Filter materials include non-woven fabric, nylon mesh, activated carbon filter material, metal mesh, Protective mesh includes double-sided plastic-sprayed wire mesh and double-sided galvanized wire mesh.

/ Operating Conditions

Media	Non-Woven fabric and synthetic fiber
Frame	AL/GL/SUS201/304 frame
Gasket	Neoprene / EVA or PU
Frame size	24/48/96mm
Screen	Metal screen in one side or both side
Efficiency	G1-G4 ,F5-F8
Max Temperature	80℃
Max Humidity	100%

/ Products Parameter

Dimension	Rate air flow	Media area	Dust Holding(g)	Initial Resistance (pa)	Finally Resistance (pa)	Efficiency
592x592x46	2600	0.97	110	<25	100-200	G1
			130	<30	100-200	G2
			160	<40	100-200	G3
			200	<45	150-200	G4
592x490x46	2200	0.81	98	<25	100-200	G1
			110	<30	100-200	G2
			130	<40	100-200	G3
			160	<45	150-200	G4
592x287x46	1300	0.48	50	<25	100-200	G1
			60	<30	100-200	G2
			80	<40	100-200	G3
			100	<45	150-200	G4

Customer size is available

Application:

mainly used for: central air conditioning and centralized ventilation system pre-filtration, large- scale air compressor pre-filtration, clean return air system, pre-filtration of local high efficiency filter device.

/ Product Details

part.1

Synthic Fibre media with one side metal screen .

HAOAIRTECH high end merv 7 pleated air filters supplier for clean return air system 12

part.2

Primary filter media pleats machine

HAOAIRTECH high end merv 7 pleated air filters supplier for clean return air system 13

part.3

Aluminum frame with plastic angle code have good appearance.

HAOAIRTECH high end merv 7 pleated air filters supplier for clean return air system 14

part.4

Z-line pleats air filter for client in Netherlands.

HAOAIRTECH high end merv 7 pleated air filters supplier for clean return air system 15

/ Our Service

HAOAIRTECH high end merv 7 pleated air filters supplier for clean return air system 16

Our Service

1: 100% scann air leaking test for each Mini-PleatsHEPA air flter, test report accompany all of HEPA air filter.
2: 2 pcs in one carton .each air filter warp by PE Bag .
3: Small order is polywood packing so that we can send out by sea in LCL.
4: If order amount more than 20000USD, We accept the 100% LC at sight against with document.
5: Free sample possible for you confirmation of quality .

/ package

HAOAIRTECH high end merv 7 pleated air filters supplier for clean return air system 17

HAOAIRTECH high end merv 7 pleated air filters supplier for clean return air system 18

HAOAIRTECH high end merv 7 pleated air filters supplier for clean return air system 19

Company Features
1. Pleated Air Filter is fused with technology of merv 7 pleated air filters .
2. Guangzhou HaoAir Purification Technology Co.,Ltd. aims to become an international brand sensation. Inquire now!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
