HAOAIRTECH hepa filter manufacturers with one side gasket for air cleaner

Brand:
HAOAIRTECH
Model number:
HA-HEPA-H Series
OEM /ODM:
Yes
Certificated:
Rosh
Start port:
Guangzhou
Delivery time:
8 working days after we get the deposit.
MOQ:
10sets
Country of Original:
China
Supply ability:
500set/one month
Payment term:
T/T , L/C , Western union
Application:
Clean room
Inquiry



Characteristics
The disposable HEPA filter cabinet are designed in closed integration which prevent the air leakage
The fast install and easy to maintain,
Air duct is galvanized steel and the diameter is 250mm or 305mm for your choose Control valve for air flow adjust (optional).
The media material is super glass fibre for 0.3um particulate。
Extrude and anodized aluminum or galvanized frame in 120 or 150 for choose。
Outside is black color PEFT cotton for preservation HVAC energy.
100 % provide the test report for each mini-pleats HEPA air filter
Filtration Efficiency: H13 ,H14,(EN1822). 99.95%-99.995%@0.3um
Applied to the terminal filtration of the air-condition filtration system
HAOAIRTECH hepa filter manufacturers with one side gasket for air cleaner 9



/ Operating Conditions


 Media

Super    glass fibre

 Frame

AL/GL frame

Gasket

Neoprene or EVA

Media spacer

Hot melt

Frame thickness    (mm)

120/150/220mm

Outside

PEF Cotton

Efficiency

99.99%-99.999%@0.3um

Max Temperature

80℃

Max Humidity

100%



/ Products Parameter


Dimension(mm)
(W*H*D)

Rate
     Air Flow
 (m3/h)

Media Area(m2)

Dust
     Holding
(g)

Rate primary
     Resistance
(Pa)

Finally
     Resistance
 (Pa)

Efficiency

610X610X120

1000

11.32

680















<220pa















400-600pa















H13-H14

610X915X120

1500

16.7

1002

600X1200X120

1950

21.4

1283

610X1220X120

2000

22.1

1326

610X610X150

1270

14.14

850

610X915X150

1900

20.8

1253

600X1200X150

2400

26.73

1604

610X1220X150

2500

27.65

1660

610X610X220

1550

17.41

1044

610X915X220

2300

25.7

1542

600X1200X220

2950

32.89

1974

610X1220X220

3000

34

2040



/ Product Details



part.1

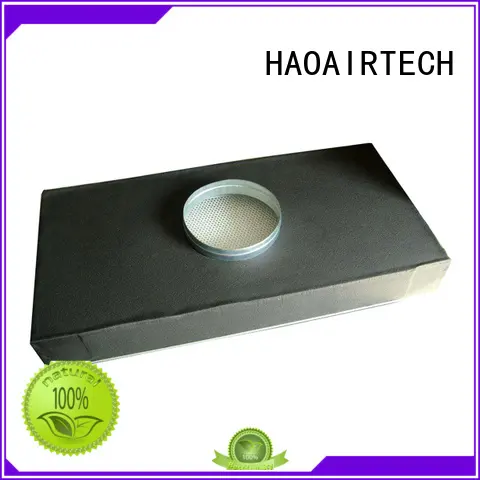

Disposable HEPA air filter
HAOAIRTECH hepa filter manufacturers with one side gasket for air cleaner 10

part.2
Mini-Pleats Media Compact
HAOAIRTECH hepa filter manufacturers with one side gasket for air cleaner 11

part.3
Air Filter Dust Detection Test
HAOAIRTECH hepa filter manufacturers with one side gasket for air cleaner 12


Application

The disposable HEPA air filter with hood adopt closed design to avoid gap and air leak, it achieves the high purifying requirement for the cleanroom, so this product  use for the operating room, lab, pharmacy room ,micro-electric ,food stuff processing factory and so on.



/ package


HAOAIRTECH hepa filter manufacturers with one side gasket for air cleaner 13
HAOAIRTECH hepa filter manufacturers with one side gasket for air cleaner 14
HAOAIRTECH hepa filter manufacturers with one side gasket for air cleaner 15




Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
