Application Scope
HaoAir's pass boxes is widely applicable in the Manufacturing Industrial Parts Filter Supplies industry.HaoAir always gives priority to customers and services. With a great focus on customers, we strive to meet their needs and provide optimal solutions.
Product Details
HaoAir pursues excellent quality and strives for perfection in every detail during the production.HaoAir is certified by various qualifications. We have advanced production technology and great production capability. air showers has many advantages such as reasonable structure, excellent performance, good quality, and affordable price.
Company Advantages1. HAOAIRTECH true hepa filter is elaborately crafted from the sophisticated production equipment.
2. The product features excellent resistance to alkalis and acids. The nitrile content of the compound has been increased to enhance the ability to resistance to chemicals.
3. The product features versatility. It is suitable for grilling meat, smaller shellfish or vegetables. This size of it means it will fit pretty much any barbecue.
4. I love the fabric, the design, the print and the fit! Great quality. I received many compliments. - said one of our clients.
5. It increases branding value. The positive images on it will reinforce brand name which enhances customer loyalty, increases sales and ultimately trickles to the overall profitability.
Characteristics
The carve box folds can prevent the breakage of the filter material.
Neoprene /EVA gasket prevent the air leaking in operation。
Extrude and anodized aluminum frame in 120mm, 150mm, 220mm for choose。
Adopting the laser to scan the filter one by one (MPPS).
100 % provide the test report for each mini-pleats HEPA air filter
Filtration Efficiency: H13 ,H14,(EN1822). 99.99%-99.999%@0.3um
Max temperature is 80C
Max humidity is 80%
Introduce
Absolute Heap air filter adopt the special design to keep the space between pleated layers by
Clapboard. Corrugated aluminum spacers can accurately maintain the distance between the pleat layers, Maximum use of filter material under minimum resistance.
/ Operating Conditions
Media | Super glass fibre |
Frame | AL/GL/MDF frame |
Gasket | Neoprene /EVA or PU |
Media spacer | Hot melt |
Frame thickness (mm) | 120/150/220 |
Clapboard | 0.035mm aluminum foil |
Efficiency | 99.99%-99.999%@0.3um |
Max Temperature | 80℃ |
Max Humidity | 80% |
/ Products Parameter
Dimension(mm)
(W*H*D) | Rate Air Flow
(m3/h) | Media Area
(m2) | Dust Holding
(g) | Rate primary Resistance(Pa)
(H13-H14) | Finally Resistance (Pa) |
484X484X120 | 450 | 4.4 | 230 |
220Pa |
400-600pa |
610X610X120 | 700 | 7.1 | 370 |
610X915X120 | 1050 | 10.6 | 560 |
610X1220X120 | 1400 | 14.1 | 740 |
484X484X150 | 600 | 6 | 320 |
610X610X150 | 1000 | 9.7 | 510 |
610X915X150 | 1500 | 14.5 | 770 |
610X1220X150 | 2000 | 19.3 | 1020 |
484X484X220 | 1000 | 9.8 | 600 |
610X610X220 | 1600 | 15.8 | 920 |
610X915X220 | 2300 | 23.7 | 1340 |
610X1220X220 | 3000 | 31.6 | 1750 |
/ Primary Resistance & Face Velocity Diagram
![HAOAIRTECH hepa air filter with flanger for dust colletor hospital 13]()
/ Product Details
part.1

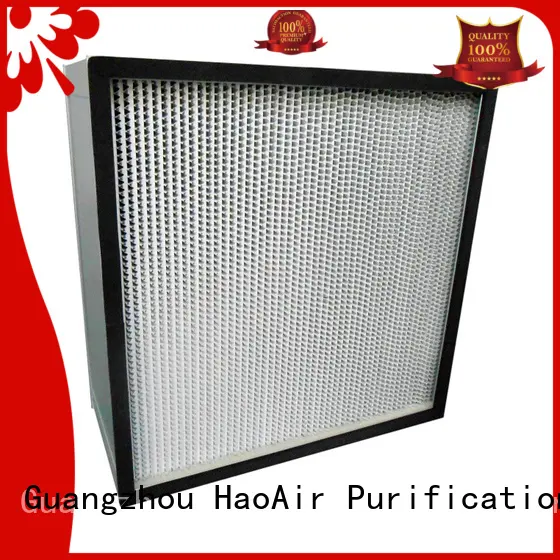

Abosulte HEPA air filter
part.2
Absolute Hepa Air Filter With EVA Gasket
part.3
Deep Pleats Media Compact
/ package
Company Features1. Guangzhou HaoAir Purification Technology Co.,Ltd. has been intensive in hepa air filter field for decades.
2. HAOAIRTECH guarantees the viability of its technological invention.
3. We consistently provide preferable ulpa filter to each customer. Ask! To enter the foreign h14 hepa filter marketplace, HAOAIRTECH is following the global standard to make air filter hepa .
