Company Advantages1. hepa filter for cleanroom has a broad development prospect and application in hepa
air filter field due to its outstanding design and high-performance materials. The product is widely used for high-end clean rooms of various manufacturers
2. This product signals the message: "We are mindful of commodity users in greater detail, beginning with the pack". And this could motivate the customer’s purchase. It acts as an indispensable part in a dustfree production line
3. The products are of high quality and stable performance, and are well received by customers. The product assures an extremely high-efficient manufacturing process
4. The products are durable and have long service life. It is certified by SGS corporation and reaches RoHS standard
Characteristics
The carve box folds can prevent the breakage of the filter material.
Neoprene /EVA gasket prevent the air leaking in operation。

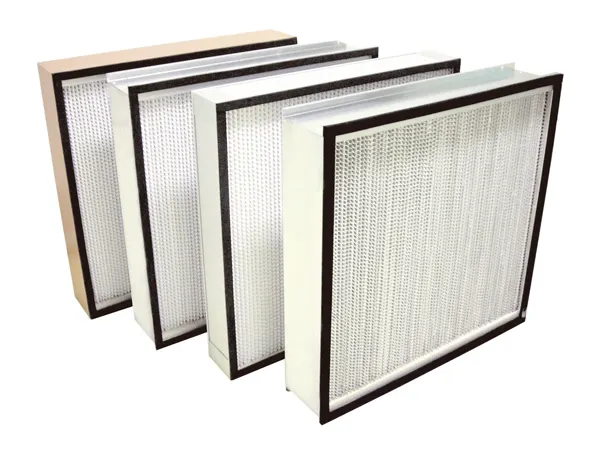

Extrude and anodized aluminum frame in 120mm, 150mm, 220mm for choose。
Adopting the laser to scan the filter one by one (MPPS).
100 % provide the test report for each mini-pleats HEPA air filter
Filtration Efficiency: H13 ,H14,(EN1822). 99.99%-99.999%@0.3um
Max temperature is 80C
Max humidity is 80%
Introduce
Absolute Heap air filter adopt the special design to keep the space between pleated layers by
Clapboard. Corrugated aluminum spacers can accurately maintain the distance between the pleat layers, Maximum use of filter material under minimum resistance.
/ Operating Conditions
Media | Super glass fibre |
Frame | AL/GL/MDF frame |
Gasket | Neoprene /EVA or PU |
Media spacer | Hot melt |
Frame thickness (mm) | 120/150/220 |
Clapboard | 0.035mm aluminum foil |
Efficiency | 99.99%-99.999%@0.3um |
Max Temperature | 80℃ |
Max Humidity | 80% |
/ Products Parameter
Dimension(mm)
(W*H*D) | Rate Air Flow
(m3/h) | Media Area
(m2) | Dust Holding
(g) | Rate primary Resistance(Pa)
(H13-H14) | Finally Resistance (Pa) |
484X484X120 | 450 | 4.4 | 230 |
220Pa |
400-600pa |
610X610X120 | 700 | 7.1 | 370 |
610X915X120 | 1050 | 10.6 | 560 |
610X1220X120 | 1400 | 14.1 | 740 |
484X484X150 | 600 | 6 | 320 |
610X610X150 | 1000 | 9.7 | 510 |
610X915X150 | 1500 | 14.5 | 770 |
610X1220X150 | 2000 | 19.3 | 1020 |
484X484X220 | 1000 | 9.8 | 600 |
610X610X220 | 1600 | 15.8 | 920 |
610X915X220 | 2300 | 23.7 | 1340 |
610X1220X220 | 3000 | 31.6 | 1750 |
/ Primary Resistance & Face Velocity Diagram
![HAOAIRTECH hepa air filter with dop port for electronic industry 11]()
/ Product Details
part.1

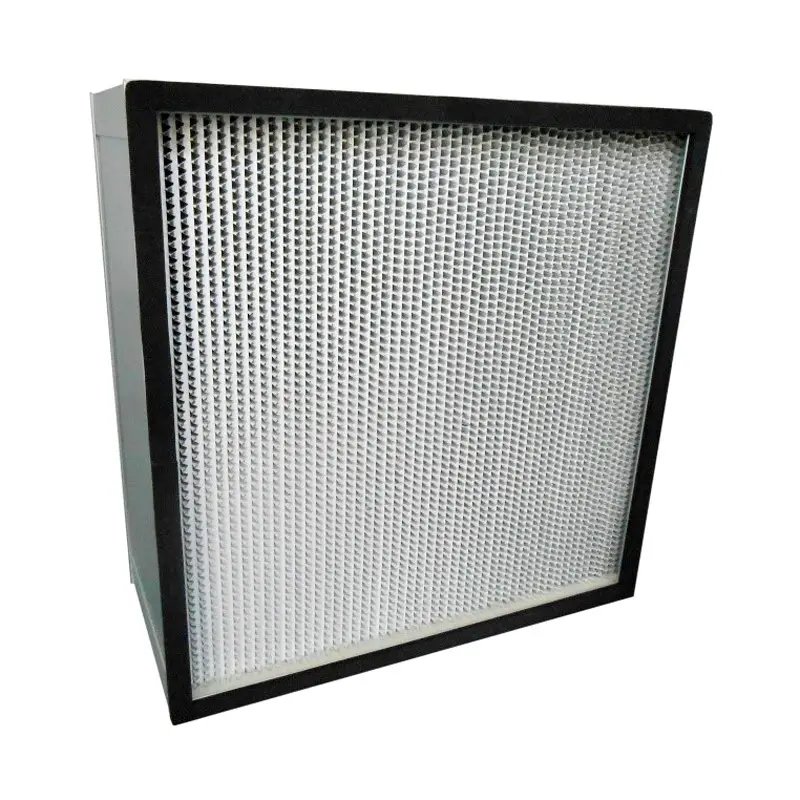

Abosulte HEPA air filter
part.2

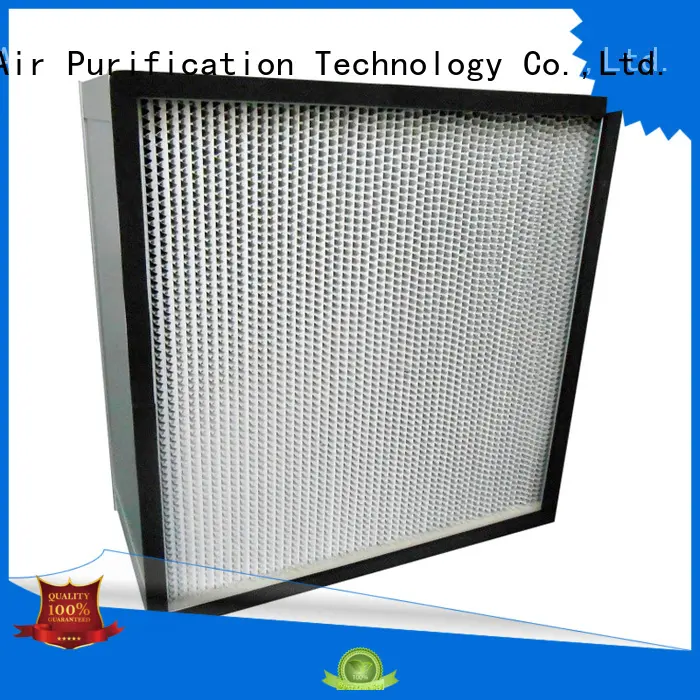

Absolute Hepa Air Filter With EVA Gasket
part.3
Deep Pleats Media Compact
/ package
Company Features1. Guangzhou HaoAir Purification Technology Co.,Ltd. is a design, developing, and manufacturing specialist in hepa air filter . We gain a reputation as a reliable company since we established years ago.
2. In order to win the leading position in the h14 hepa filter market, HAOAIRTECH invested a lot of money to strengthen the technical force.
3. Guangzhou HaoAir Purification Technology Co.,Ltd.'s wish is to be a dependable long-term supplier of clients hepa
filter manufacturers . Please contact us!
