We have a team that benefits from over 15 years cleanroon equipment fieldwork and experience.

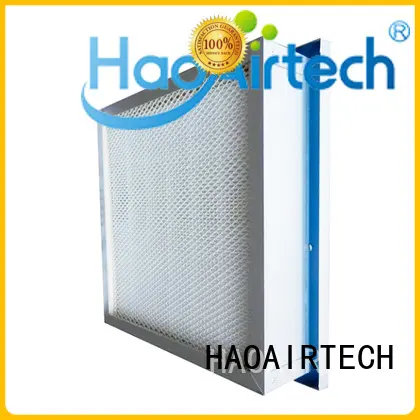

HAOAIRTECH gel seal hepa filter h12 with dop port for air cleaner 1

HAOAIRTECH gel seal hepa filter h12 with dop port for air cleaner 2

HAOAIRTECH gel seal hepa filter h12 with dop port for air cleaner 3

HAOAIRTECH gel seal hepa filter h12 with dop port for air cleaner 4

HAOAIRTECH gel seal hepa filter h12 with dop port for air cleaner 5

HAOAIRTECH gel seal hepa filter h12 with dop port for air cleaner 6

HAOAIRTECH gel seal hepa filter h12 with dop port for air cleaner 7

HAOAIRTECH gel seal hepa filter h12 with dop port for air cleaner

Brand:

HAOAIRTECH

Model number:

HA-HEPA-G Series

OEM /ODM:

Yes

Certificated:

Rosh

Start port:

Guangzhou

Delivery time:

8 working days after we get the deposit.

MOQ:

10sets

Country of Original:

China

Supply ability:

500set/one month

Payment term:

T/T , L/C , Western union

Application:

Clean room

Inquiry

Product Details

HaoAir pursues perfection in every detail of pass boxes, so as to show quality excellence.pass boxes is a truly cost-effective product. It is processed in strict accordance with relevant industry standards and is up to the national quality control standards. The quality is guaranteed and the price is really favorable.

Company Advantages
1. The novel design put forward by Guangzhou HaoAir Purification Technology Co.,Ltd. realizes more scientific and efficient management of whole house hepa filter .
2. The product has properties of long service, excellent and stable performance.
3. The product is highly acclaimed for its unbeatable quality and strong practicality.
4. This product has received more popularity around the world.

Characteristics

The Gel Seal HEPA filter use the super glass fibre filtration 0.3um particulate.
Patent technology to ensure the V type passage in low resistance.
Gel Seal gasket can 100% prevent the air leaking in operation.
Extrude and anodized aluminum frame in 69mm, 93mm, 96mm.104mm for choose.
While color metal screen to protect the filtration media without any damage .
Light weight and easy to install
Adopting the laser to scan the filter one by one ( MPPS).
100 % provide the test report for each mini-pleats HEPA air filter
Filtration Efficiency: H13 ,H14,(EN1822). 99.95%-99.995%@0.3um
Applied to the terminal filtration of the air-condition filtration system

HAOAIRTECH gel seal hepa filter h12 with dop port for air cleaner 9

/ Operating Conditions

Media	Super glass fibre
Frame	AL frame in 69/96/96/104mm
Gasket	Gel Seal
Media spacer	Hot melt
Screen	Metal screen
Efficiency	>99.999%@0.3um
Max Temperature	70℃
Max Humidity	100%

/ Products Parameter

Cabinet siz(mm) (WHD)	Rate Air Flow (m3/h)	Media Area (m2)	Dus Holding (g)	Rate primary Resistance (Pa)	Finally Resistance (Pa)	Efficiency
510X510X69	600	6.6	400	<200pa	400-600pa	H13-H14
636X636X69	1000	10.7	650
596X1196X69	1800	18.3	1100
636X1236X69	2100	21.3	1000
346X346X93	400	4.2	250
510X510X93	900	9.42	565
636X636X93	1500	14.9	900
636X941X93	2000	22.3	1200
626X1226X93	2800	29.8	1800
621X621X93	1380	14.19	851
636X1246X93	2800	29.8	1800
596X1196X93	2550	26.28	1577
656X994X93	2350	24.15	1449
350X350X96	500	4.68	300
514X514X96	1000	10.62	650
640X640X96	1500	16.8	1000

/ Product Details

part.1

Gel seal HEPA air filter

HAOAIRTECH gel seal hepa filter h12 with dop port for air cleaner 10

part.2

Mini-Pleats Media Compact

HAOAIRTECH gel seal hepa filter h12 with dop port for air cleaner 11

part.3

Air Filter Dust Detection Test

HAOAIRTECH gel seal hepa filter h12 with dop port for air cleaner 12

/ package

HAOAIRTECH gel seal hepa filter h12 with dop port for air cleaner 13

HAOAIRTECH gel seal hepa filter h12 with dop port for air cleaner 14

HAOAIRTECH gel seal hepa filter h12 with dop port for air cleaner 15

Company Features
1. HAOAIRTECH stands out among other hepa filter h12 manufacturers in the industry.
2. We have set up a proficient quality check team. They strictly conduct a strict inspection process while complying with industry guidelines, ensuring the highest quality of products.
3. HAOAIRTECH is a specialized hepa air filter supplier which is very ambitious. Inquiry! Guangzhou HaoAir Purification Technology Co.,Ltd. strives to become the supplier and service provider of world high quality ulpa air filter . Inquiry! Guangzhou HaoAir Purification Technology Co.,Ltd. understands and focuses on the needs of our customers, delivering outstanding products and service. Inquiry! HAOAIRTECH now is growing to be a popular air purifiers hepa filter supplier. Inquiry!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
