HAOAIRTECH dynamic air shower with automatic swing door for oil refinery

Company Advantages
1. The design of air shower is quite reasonable in structure, both air showers and pass thrus and economical.
2. It is UV resistant. Fabrics which are UV absorbing and has reflective properties are used in its manufacture to ensure protection from the sun.
3. The product has dimensional stability. It can retain its original size and shape after washed by hands, or in the machines, or dry cleaning.
4. After years of improvement, the product has received more and more attention at home and abroad and has great commercial value.

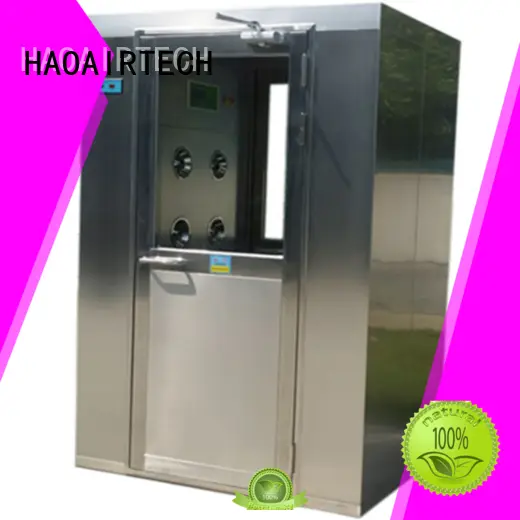

 SUS304 Cleanroom Air Shower

 1: Direct drive non-overloading paddle wheel blower

 2: Open drip proof motor

 3; Neoprene vibration isolators for blower

 4: 99.99% @ .3 micron HEPA filter

 5：White plastic adjustable air nozzles that deliver a minimum 5000 f.p.m. velocity

 6：G3 pre-filters located at the bottom of the wall for easy access

 7：Magnetic door interlocks 24DV with 600 pound holding force

 8：Emergency stop station (shuts off blower and turns off locks)

 9： Clear anodized aluminum frame doors with 1/4" clear tempered glass vision panel

 10：Commercial duty door closers

 11：Clear anodized door stops with seals

 12：Drag sweep for bottom door seal

 13：LED light fixture

 14：Pre-wire control panel with non-fused disconnect switch, transformers, motor starter with

       short circuit and overload protection and fuses and/or circuit breaker.

 15：Available in straight, right angle, left, angle, u-shape and z-shape configurations

Cleanroom Air Shower Parameter :

SUS304 Cleanroom Air Shower
Model	HA-AS-1300/P1	HA-AS-1300/P1.5	HA-AS-1300/P2
Exterior   Size LxWxH   (mm)	1300x1000x2100	1300x1500x2100	1300x2000x2100
Interior   Size LxWxH   (mm)	800x930x1960	800x1430x1960	800x1930x1960
Users	1	2	2-3
Material	Available   in 100% SUS304 Stainless Steel and/or   High-Quality 1.2 mm Cold-Rolled Steel Plate
Air   Shower Time	0-99   seconds
Jet   Nozzles	12	18	24
Nozzle   Diameter	30 mm
Air   Velocity	> 25   m/s
Door   Closer	Dorma   (German) Door Closer
Electronic   Lock	LCJ   Electronic Lock
Filter   Efficacy	≥99.995%   of Particles ≥0.3μm
Filter   Size  LxWxH   (mm)	595   ×595×80	595   ×595×80	595   ×595×80
No. of   Filters	2	2	4
Power   Source	380V/50Hz   (Also Available in 220V and 110V)
Lighting	1   Recessed LED	2   Recessed LED	2   Recessed LED
Fan   Power (# x Kw)	2 x 0.55	2 x 0.75	4 x 0.55
Weight   (kg)	350	450	600

Application :

  Our Shipment :

Company Features
1. Specializing in the R&D, design, and production of air shower , Guangzhou HaoAir Purification Technology Co.,Ltd. has become a highly-recognized manufacturer and supplier in the market.
2. Guangzhou HaoAir Purification Technology Co.,Ltd. adopts high technology to guarantee high quality of air shower design .
3. We strive to win the global air showers and pass thrus market in the future. Ask! Guangzhou HaoAir Purification Technology Co.,Ltd. aims to provide the most professional clean room manufacturers with professional services. Ask! By improving management concepts and plans, HAOAIRTECH will continue to improve work efficiency. Ask! Trust HAOAIRTECH and we will ensure that you gain expertise and value. Ask!
